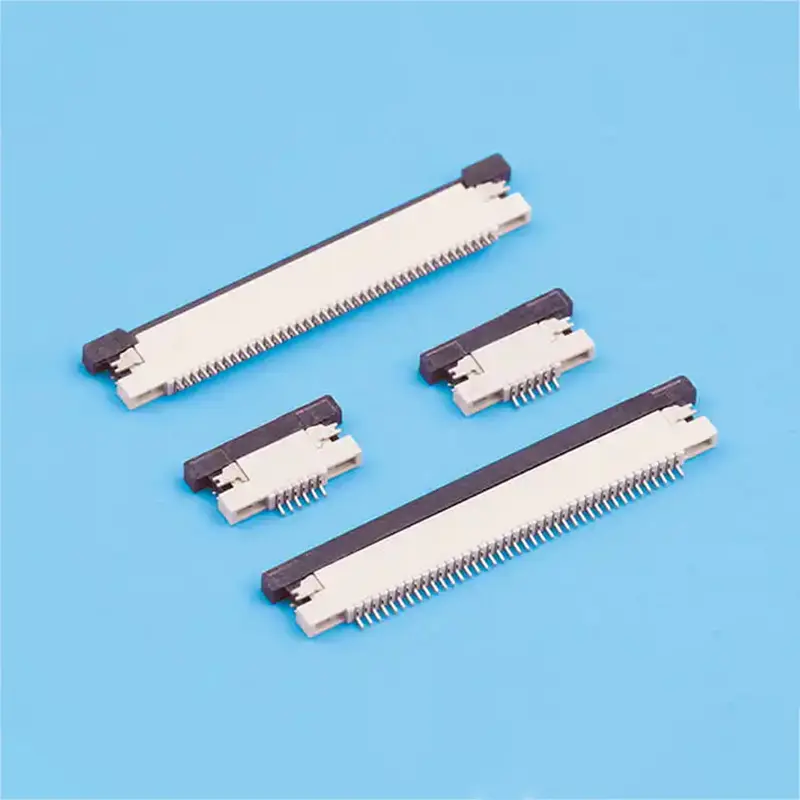

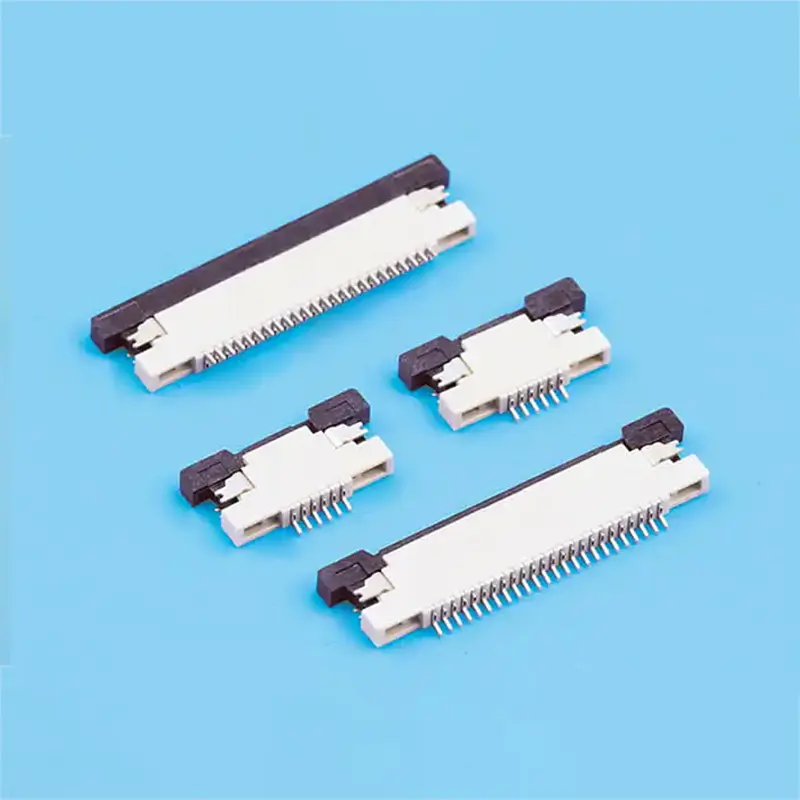

Wholesale 0.5mm Pitch Ultra Low Profile 1.2H, Horizontal Drawer/Pull-Tab FPC/FFC Connector, SMT Type with Top & Bottom Contacts (4-60 Positions) Manufacturers, Suppliers
Wholesale 0.5mm Pitch Ultra Low Profile 1.2H, Horizontal Drawer/Pull-Tab FPC/FFC Connector, SMT Type with Top & Bottom Contacts (4-60 Positions) Manufacturers, Suppliers
1 / 2
Wholesale 0.5mm Pitch Ultra Low Profile 1.2H, Horizontal Drawer/Pull-Tab FPC/FFC Connector, SMT Type with Top & Bottom Contacts (4-60 Positions) Manufacturers, Suppliers
Wholesale 0.5mm Pitch Ultra Low Profile 1.2H, Horizontal Drawer/Pull-Tab FPC/FFC Connector, SMT Type with Top & Bottom Contacts (4-60 Positions) Manufacturers, Suppliers

Wholesale 0.5mm Pitch Ultra Low Profile 1.2H, Horizontal Drawer/Pull-Tab FPC/FFC Connector, SMT Type with Top & Bottom Contacts (4-60 Positions) Manufacturers, Suppliers

The FPC flat connector with a 0.5mm pitch adopts a 0.5mm pin pitch, making the connector have higher density and smaller size, suitable for compact electronic device design.This product uses high-quality materials and advanced manufacturing processes to ensure the long-term reliability and stability of the connector, reducing the risk of poor contact or open circuit issues.0.5mm pitch 1.2mm height fpc flat cable connector, zif r/a upper contact, locking slider, high-density integration, durable, for flexible printed circuits;0.5mm pitch 1.2mm height fpc flat flexible cable connector, zif r/a down contact, for electronics and pcb boards.

Send Inquiry

Product Description

Technical Specifications

Model Type Visual Diagram Electrical & Mechanical Parameters
0.5mm Pitch ZIF R/A Type Upper Contact H=1.2 Upper Contact Diagram
CKT: 4Pin to 60Pin
Current rating: 0.5A AC/DC
Voltage rating(max): 50V AC/DC
Working Temperature: -25°C~+85°C
Contact resistance: Initial ≤30mΩ / After test ≤50mΩ
Insulation resistance: ≥500MΩ
Withstand voltage: 500VAC(rms)
Applicable PCB thickness: 1.6mm to 2.0mm
0.5mm Pitch ZIF R/A Type Down Contact H=1.2 Down Contact Diagram

Mounting Measurement & Layout

Assembly layout

Assembly layout

Applicable Flat cable

Applicable Flat cable

P.C.B Layout

P.C.B Layout

ZIF R/A Upper Contact Details

Material and Finish:
Housing: LCP UL 94V-0 | Terminal: Phosphor bronze | Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated options
ZIF R/A Upper contact drawing
CKT Part No DIM A DIM B
4.00LW05121-041.502.56
5.00LW05121-052.003.06
10.00LW05121-104.505.56
60.00LW05121-6029.5030.56

ZIF R/A Down Contact Details

Material and Finish:
Housing: LCP UL 94V-0 | Terminal: Phosphor bronze | Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated options
ZIF R/A Down contact drawing
CKT Part No DIM A DIM B
4LW05122-041.52.56
5LW05122-0523.06
10LW05122-104.55.56
60LW05122-6029.530.56

Frequently Asked Questions

What is the pitch and height of this connector?
This ZIF R/A type connector features a 0.5mm pitch with a low-profile height of 1.2mm.
What is the difference between Upper and Down contact types?
The Upper Contact type interfaces with the FPC cable from the top side, while the Down Contact type interfaces from the bottom, allowing for flexible PCB design requirements.
What circuit sizes are available for this series?
We offer a wide range of pin counts, ranging from 4 pins up to 60 pins.
What are the environmental ratings for these connectors?
They are designed to operate in temperatures from -25°C to +85°C and utilize LCP UL 94V-0 rated housing for excellent thermal stability.
What plating options are available for the terminals?
The terminals are made of phosphor bronze and can be provided with either Tin-plated or Gold-plated finishes.
What is the maximum current and voltage rating?
The connector is rated for a maximum of 0.5A AC/DC current and a 50V AC/DC voltage.
