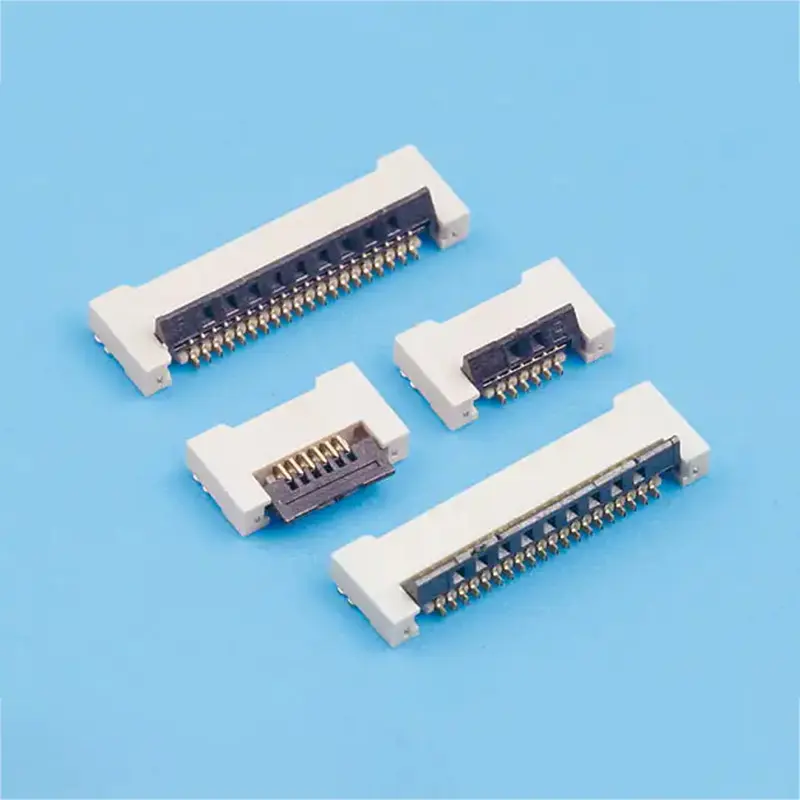

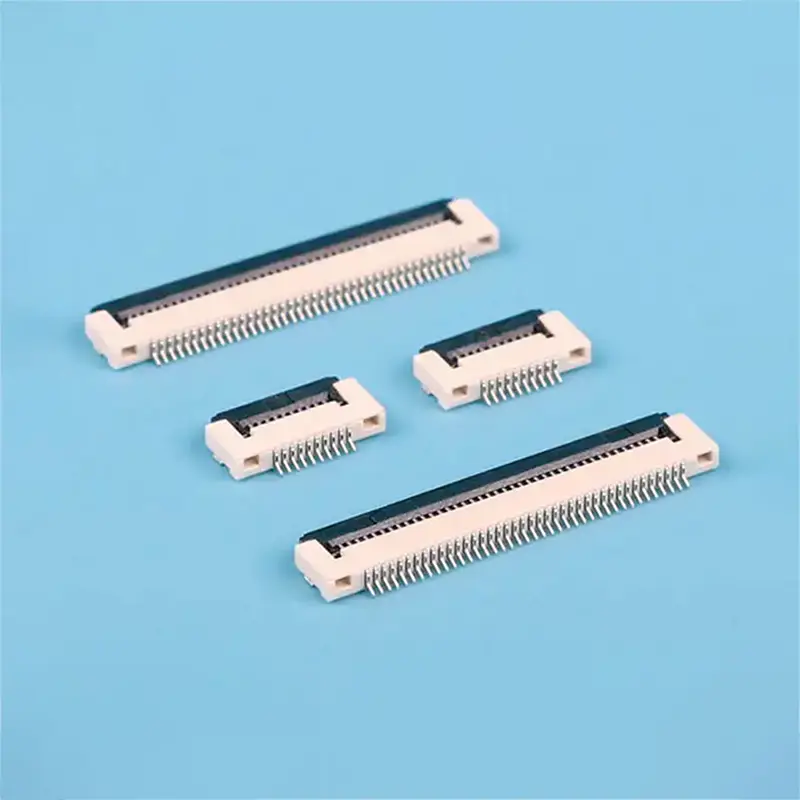

High-Quality 0.5mm Pitch 1.5H Slim Profile, Flip-Lock Bottom Contact FPC/FFC Connector, Horizontal SMT Type (4-60 Positions) Factories, Factory

High-quality 0.5mm pitch 1.5mm height easy-on flat flexible cable fpc connector, horizontal type, locking-style, for pcb circuit board;0.5mm pitch 1.5mm height back flip fpc flat connectors, zif slide type, flexible printed circuit cable connectors, horizontal contact

Send Inquiry

Product Description

★

Product Advantages

1. Space Saving Due to the small pitch design of FPC flat connector 0.5mm Pitch, the size of the connector can be significantly reduced, saving space for electronic devices and meeting the requirements of miniaturization and high-density design.

2. Improved Production Efficiency The flat connector design makes it more convenient and faster to plug and unplug the connector, reducing the time and labor required for plugging and unplugging connectors, thereby improving production efficiency.

⚙

Technical Specifications

Model Type	Diagram	Detailed Specifications
0.5mm Pitch Easy On Type H=1.5		1. CKT: 4Pin to 60Pin 2. Current rating: 0.5A AC/DC 3. Voltage rating (max): 50V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤30mΩ / After test ≤50mΩ 6. Insulation resistance: ≥500MΩ 7. Withstand voltage: 500VAC(rms) 8. Applicable PCB thickness: 1.6mm to 2.0mm
0.5mm Pitch Back Flip Type H=1.5

📐

Mounting Measurement

0.5mm Pitch Easy On Type (H=1.5)

Assembly Layout

Applicable Flat Cable

P.C.B Layout

0.5mm Pitch Back Flip Type (H=1.5)

Assembly Layout

Applicable Flat Cable

P.C.B Layout

📋

Product Description

Easy-on R/A

Material: Housing: LCP UL 94V-0; Terminal: Phosphor bronze; Fitting: Phosphor bronze.
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
4.00	XW05152-04	1.50	6.20
5.00	XW05152-05	2.00	6.70
6.00	XW05152-06	2.50	7.20
10.00	XW05152-10	4.50	9.20
60.00	XW05152-60	29.50	34.20

Back Flip R/A

Material: Housing: LCP UL 94V-0; Terminal: Phosphor bronze; Fitting: Phosphor bronze.
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
4	HW05150-04	1.5	2.52
5	HW05150-05	2	3.02
8	HW05150-08	3.5	4.52
12	HW05150-12	5.5	6.52
60	HW05150-60	29.5	30.52

Frequently Asked Questions

What is the pitch of this FPC flat connector?

The connector features a 0.5mm pitch design, optimized for high-density electronic applications.

What circuit sizes (CKT) are available?

We offer a wide range of circuit sizes, typically ranging from 4Pin to 60Pin to meet various design requirements.

What are the main benefits of the 0.5mm pitch design?

The primary benefits are significant space saving for miniaturized devices and improved production efficiency due to the easy plug-and-unplug design.

What materials are used in the construction?

The housing is made of LCP UL 94V-0, with terminals and fittings crafted from phosphor bronze and finished with tin or gold plating.

What is the operating temperature range for these connectors?

The connectors are designed to operate reliably within a temperature range of -25°C to +85°C.

What is the current and voltage rating?

These connectors have a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.
