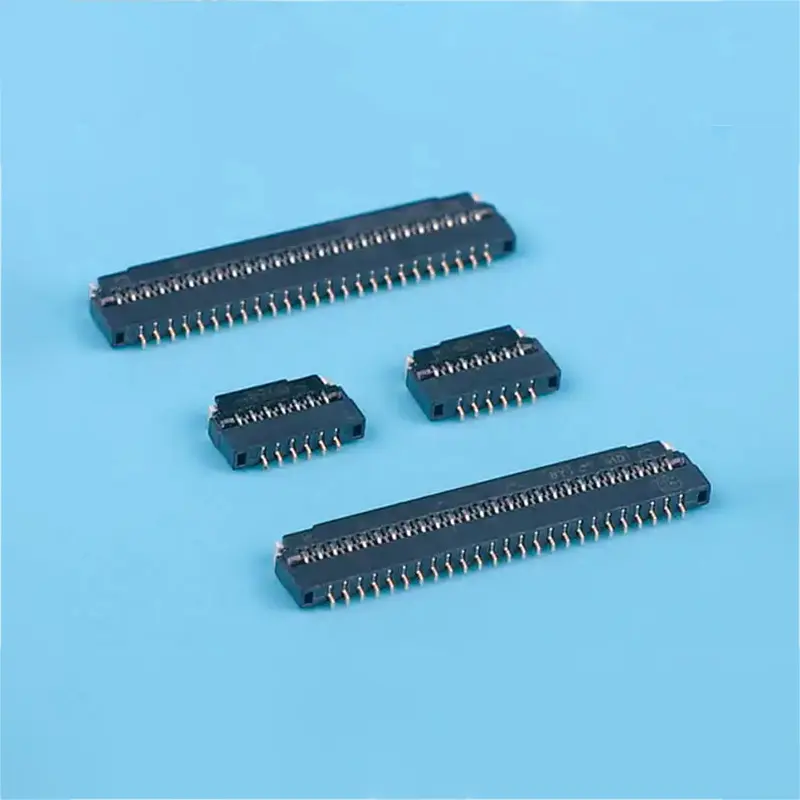

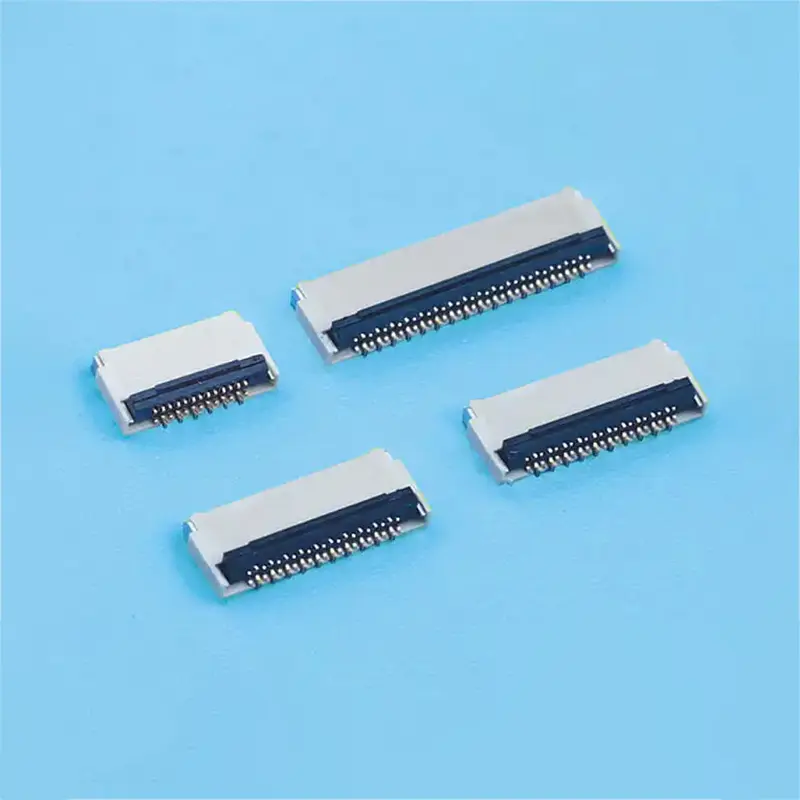

FPC Flat Connector 0.3mm Pitch is a high-precision, high-reliability, and high-signal transmission rate connector product. Its features such as high-density connection, high-speed transmission, stability and reliability, simplified design and assembly, multi-purpose application, and environmental protection and energy saving make it an ideal choice for connecting various electronic devices. We are committed to providing customers with high-quality products and comprehensive technical support to meet the needs of different industries and create greater value for customers.Easy-on fpc flat ribbon connector, 0.3mm pitch, 1.0mm height, flexible printed circuit connector, horizontal smt type;Back flip fpc flat flexible cable connector, 0.3mm pitch, 1.0mm height, bottom contact type for pcb board connections

Send Inquiry

Product Description

Product Features

🚀 High-precision Connection The FPC flat connector with a 0.3mm pitch adopts precise manufacturing processes to ensure the stability and reliability of the connection. Its 0.3mm pitch enables high-density connections, making it suitable for electronic devices with high precision requirements.

🛡️ High Reliability Uses high-quality materials and advanced manufacturing processes, ensuring good durability and corrosion resistance. It can maintain stable performance over long periods of use and is less prone to loose or broken connections.

⚡ High Signal Transmission Rate The compact pitch and optimized electrical design reduce signal transmission losses, improving the quality and speed of signal transmission for high-speed data needs.

📱 Flexible Applications Suitable for various electronic device connection needs including smartphones, tablets, laptops, and other portable devices for fast data transmission and power supply.

Product Advantages

Space Saving The 0.3mm spacing achieves high-density connections, improving device integration for wearable devices and smartphones.

User Experience Ensures stable and fast signal transmission in scenarios requiring high-speed data like video transmission and network communication.

Long Lifespan Maintains stable performance without frequent connection loosening or breaking, enhancing device reliability.

Efficiency Simplified design and assembly process with easy plug-and-play features reduces installation steps and costs.

Eco-Friendly Reduces the number of connectors used, lowering energy consumption and resource usage in compliance with environmental regulations.

Professional Support Comprehensive technical guidance and troubleshooting are provided to ensure a smooth customer experience.

Specifications

Model	Diagram	Specifications

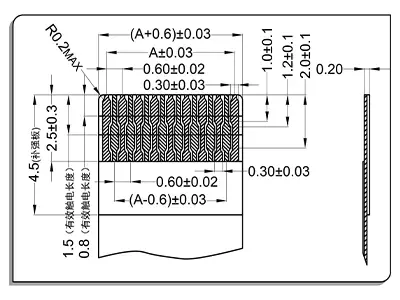

Easy on		• CKT: 13Pin to 71Pin • Current rating: 0.2A AC/DC • Voltage rating(max): 30V, AC/DC • Working Temperature: -25°C~+85°C • Contact resistance: ≤40mΩ (Initial), ≤60mΩ (After testing) • Insulation resistance: ≥50MΩ • Withstand voltage: 500VAC(rms) • Applicable PCB board thickness: 1.6mm to 2.0mm
Back Flip

Mounting Measurement

Easy on Type

Back Flip Type

Product Description

Easy-on R/A

Material and Finish: Housing: LCP UL 94V-0; Terminal: Phosphor Bronze; Fitting: Phosphor Bronze.
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
13.00	XW03102-13	3.60	4.26
15.00	XW03102-15	4.20	4.86
17.00	XW03102-17	4.80	5.46
19.00	XW03102-19	5.40	6.06
21.00	XW03102-21	6.00	6.66
23.00	XW03102-23	6.60	7.26
25.00	XW03102-25	7.20	7.86
27.00	XW03102-27	7.80	8.46
29.00	XW03102-29	7.80	9.06
31.00	XW03102-31	8.40	9.66
33.00	XW03102-33	9.00	10.26
71.00	XW03102-71	21.00	21.66

Back Flip R/A

Material and Finish: Housing: LCP UL 94V-0; Terminal: Phosphor Bronze; Fitting: Phosphor Bronze.
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
13.00	HW03102-13	3.60	4.25
15.00	HW03102-15	4.20	4.85
17.00	HW03102-17	4.80	5.45
19.00	HW03102-19	5.40	6.05
21.00	HW03102-21	6.00	6.65
23.00	HW03102-23	6.60	7.25
25.00	HW03102-25	7.20	7.85
27.00	HW03102-27	7.80	8.45
29.00	HW03102-29	8.40	9.05
31.00	HW03102-31	9.00	9.65
33.00	HW03102-33	9.60	10.25
71.00	XW03102-71	21.00	21.65

Frequently Asked Questions

What is the main benefit of a 0.3mm pitch FPC connector?

The 0.3mm pitch allows for ultra-high-density connections, which is essential for modern, compact electronic devices like smartphones and wearables where PCB space is limited.

Are these connectors suitable for high-speed data transmission?

Yes, the optimized electrical design and compact pitch minimize signal loss, making them ideal for high-speed video and network communication applications.

What is the difference between "Easy on" and "Back Flip" models?

"Easy on" typically refers to the traditional slider lock mechanism, while "Back Flip" uses a rotating actuator at the back, which can offer better cable retention and easier operation in certain assembly layouts.

What materials are used in these connectors?

They are constructed with LCP (Liquid Crystal Polymer) UL 94V-0 housings for high thermal resistance and phosphor bronze terminals with tin or gold plating for superior conductivity and corrosion resistance.

What is the operating temperature range?

The connectors are designed to operate reliably within a temperature range of -25°C to +85°C, which includes the temperature rise caused by electrical current.

How many circuits (pins) are available for these connectors?

Our standard range supports from 13Pin up to 71Pin configurations to meet various design requirements.
