Wholesale 0.5mm Pitch Gold Plated Ultra-Slim 1.0H/1.2H, Push-Down Hinged FPC/FFC Connector, Horizontal SMT, 4-30 Positions Manufacturer, Factories

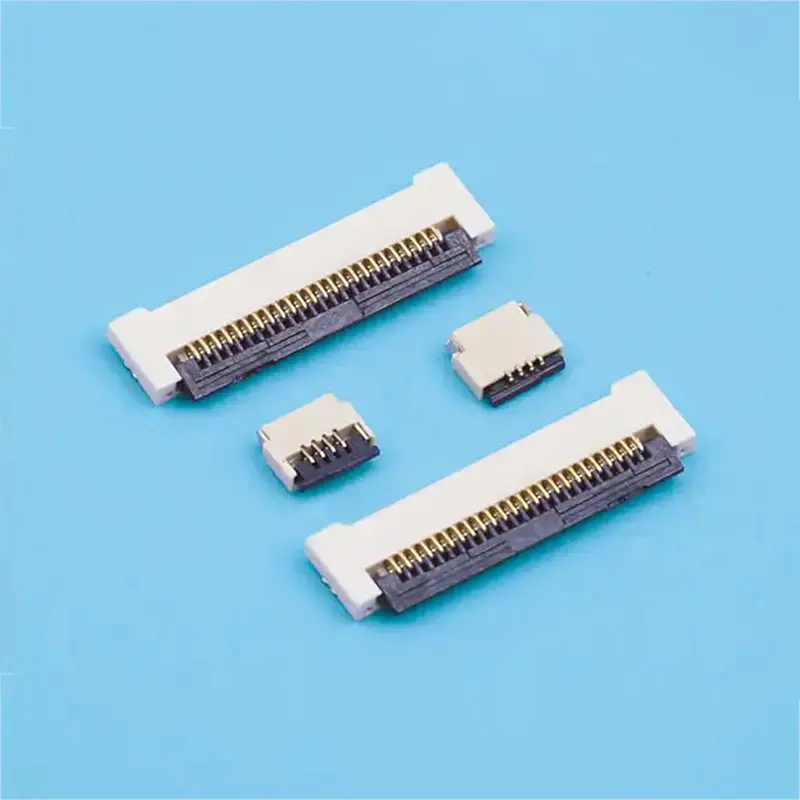

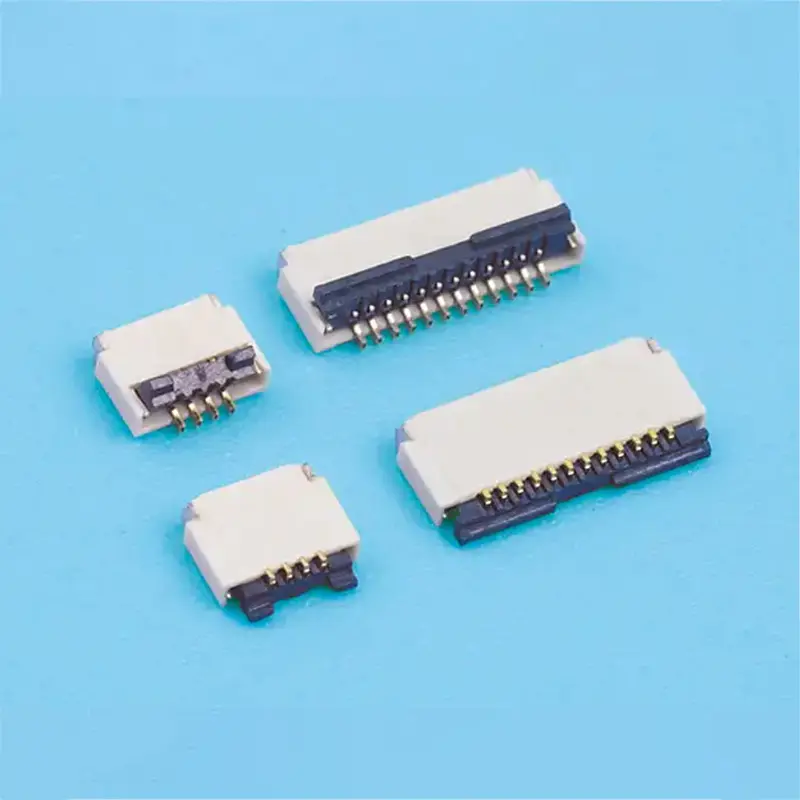

0.5mm Pitch Back Flip Type H=1.0 is a precision engineered component designed for high-performance applications in a variety of electronic devices. The connector features a compact design with a pitch of 0.5mm, making it ideal for space-constrained environments. The back flip structure enables efficient connection and disconnection, ensuring reliable performance under harsh conditions. With a height of 1.0mm, the connector is suitable for applications that require low-profile components, providing flexible design and functionality.Back flip micro fpc flat cable connector, 0.5mm pitch, 1.0mm height, compact design, white, for data, signal transfer applications;0.5mm pitch 1.2mm height back flip fpc flat connector kit, flexible printed circuit board connectors, zif horizontal type, compact design.

Send Inquiry

Product Description

📋 Product Specifications

Model	Diagram	Key Electrical Specs
0.5mm Pitch Back Flip Type H=1.0 (CKT: 4-40Pin)		✔ Current rating: 0.5A AC/DC ✔ Voltage rating: 50V AC/DC (max) ✔ Temperature: -25℃ ~ +85℃ ✔ Contact Resistance: ≤30mΩ (Initial) ✔ Insulation Resistance: ≥500MΩ ✔ Withstand Voltage: 500VAC(rms) ✔ PCB Thickness: 1.6mm to 2.0mm
0.5mm Pitch Back Flip Type H=1.2 (CKT: 4-60Pin)

📐 Mounting & Layout Measurements

0.5mm Pitch Back Flip Type H=1.0

Assembly Layout

Applicable Flat Cable

P.C.B Layout

0.5mm Pitch Back Flip Type H=1.2

Assembly Layout

Applicable Flat Cable

P.C.B Layout

🚀 Product Details & Materials

Material and Finish:
Housing: LCP UL94V-0 | Terminal: Phosphor bronze | Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated

Back Flip Type H=1.0 R/A Dimensions

CKT	Part No	DIM A	DIM B
4	HW05100-04	1.5	2.56
10	HW05100-10	4.5	5.56
40	HW05100-40	19.5	20.56

Back Flip Type H=1.2 R/A Dimensions

CKT	Part No	DIM A	DIM B
4	HW05120-04	1.5	2.52
10	HW05120-10	4.5	5.52
60	HW05120-60	29.5	30.52

❓ Frequently Asked Questions

Q1: What is the current and voltage rating for these connectors? The current rating is 0.5A AC/DC, and the maximum voltage rating is 50V AC/DC.

Q2: What are the material specifications for the housing and terminals? The housing is made of LCP UL94V-0. Both the terminals and fittings are made of phosphor bronze with tin-plated and gold-plated finishes.

Q3: What is the operating temperature range? The working temperature range is -25℃ to +85℃, which includes the temperature rise when applying electrical current.

Q4: How many pins (CKT) are available for the H=1.0 and H=1.2 models? The H=1.0 model supports 4Pin to 40Pin, while the H=1.2 model supports 4Pin to 60Pin.

Q5: What is the pitch size of this back flip type connector? These connectors feature a 0.5mm pitch design.

Q6: What is the required PCB thickness for installation? The applicable PCB board thickness ranges from 1.6mm to 2.0mm.
