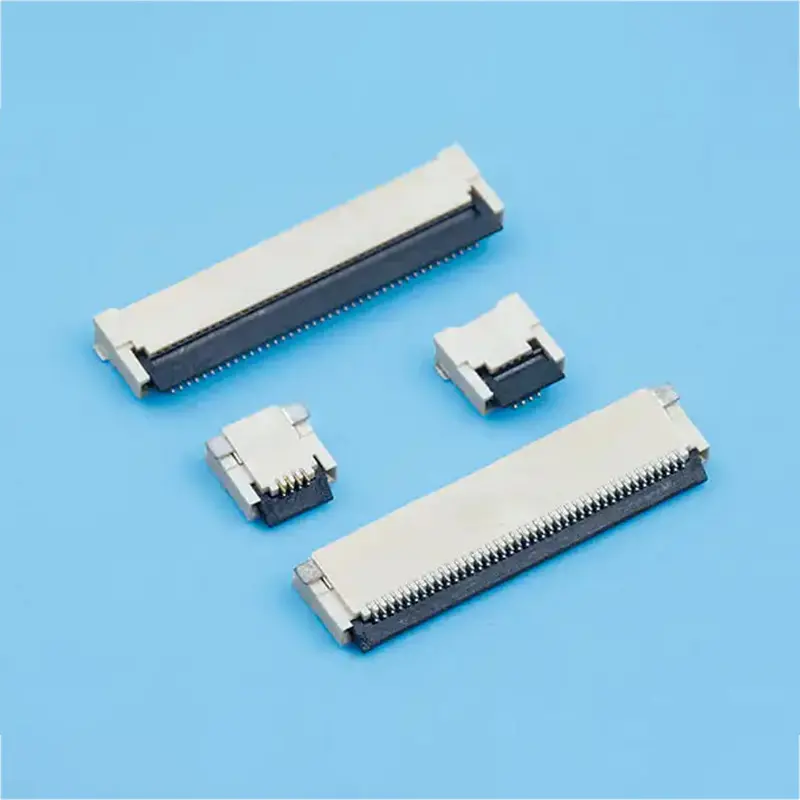

China 0.5mm Pitch Gold Plated Hinged Flip-Lock FPC/FFC Connector, Horizontal SMT, 4-60 Positions Factories, Factory

China 0.5mm Pitch Gold Plated Hinged Flip-Lock FPC/FFC Connector, Horizontal SMT, 4-60 Positions Factories, Factory

The small pitch design of FPC flat connector 0.5mm Pitch can reduce the number and length of connectors, thereby reducing production costs.The 0.5mm Pitch design enables the connector to provide better signal transmission performance, reducing signal loss and interference, and improving the efficiency and stability of electronic devices.0.5mm pitch 2.0mm height back flip fpc flat connectors, horizontal insert, locking type, zif slide, pcb mount.

Send Inquiry

Product Description

Product Advantages

Adaptable Scenarios FPC flat connector 0.5mm Pitch is suitable for various electronic device connection needs, including smartphones, tablets, laptops, and digital cameras, meeting the needs of diverse industries.
High Durability Made of sturdy and durable materials with excellent corrosion resistance, ensuring long-term stable performance even in harsh working environments.
Easy Maintenance The flat connector design simplifies installation and maintenance processes, significantly reducing the time and cost required for technical support.

Technical Specifications

Specifications Diagram
  • CKT: 4Pin to 80Pin
  • Current Rating: 0.5A AC/DC
  • Voltage Rating (Max): 50V AC/DC
  • Working Temperature: -25°C to +85°C
  • Contact Resistance: Initial ≤30mΩ / After Testing ≤50mΩ
  • Insulation Resistance: 2500MΩ
  • Withstand Voltage: 500VAC(rms)
  • PCB Thickness: 1.6mm to 2.0mm

Mounting & Layout Measurement

Assembly Layout

Assembly Layout

Applicable Flat Cable

Flat Cable

P.C.B Layout

P.C.B Layout

Product Description

Configuration: Back Flip R/A (Right Angle)

Material and Finish:
Housing: LCP UL94V-0
Terminal: Phosphor Bronze
Fitting: Phosphor Bronze
Finish: Tin-plated & Gold-plated

Product Structure
CKT Part No DIM A (mm) DIM B (mm)
4HW05200-041.52.52
5HW05200-0523.02
6HW05200-062.53.52
7HW05200-0734.02
8HW05200-083.54.52
9HW05200-0945.02
10HW05200-104.55.52
11HW05200-1156.02
12HW05200-125.56.52
13HW05200-1367.02
14HW05200-146.57.52
............
80HW05200-8039.540.52

Frequently Asked Questions

What is the pitch size of this FPC connector?
This FPC flat connector features a 0.5mm pitch, making it ideal for high-density electronic applications.
What is the available circuit (pin) range?
We offer a wide range of configurations from 4Pin up to 80Pin to suit different connectivity requirements.
What are the main materials used in construction?
The housing is made of LCP UL94V-0, and the terminals/fittings are crafted from phosphor bronze with tin or gold plating options.
Can this connector withstand extreme temperatures?
Yes, it is designed to operate reliably within a temperature range of -25°C to +85°C.
What devices is this connector compatible with?
It is highly adaptable and commonly used in smartphones, tablets, laptops, digital cameras, and other compact electronic devices.
What is the electrical rating for this series?
The connector has a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.
