Wholesale 0.5mm Pitch Flip-Lock FPC/FFC Connector, Bottom Contact, Horizontal SMT, 4/10/20/30/60 Positions Manufacturers, Factory
1 / 1
Wholesale 0.5mm Pitch Flip-Lock FPC/FFC Connector, Bottom Contact, Horizontal SMT, 4/10/20/30/60 Positions Manufacturers, Factory

Wholesale 0.5mm Pitch Flip-Lock FPC/FFC Connector, Bottom Contact, Horizontal SMT, 4/10/20/30/60 Positions Manufacturers, Factory

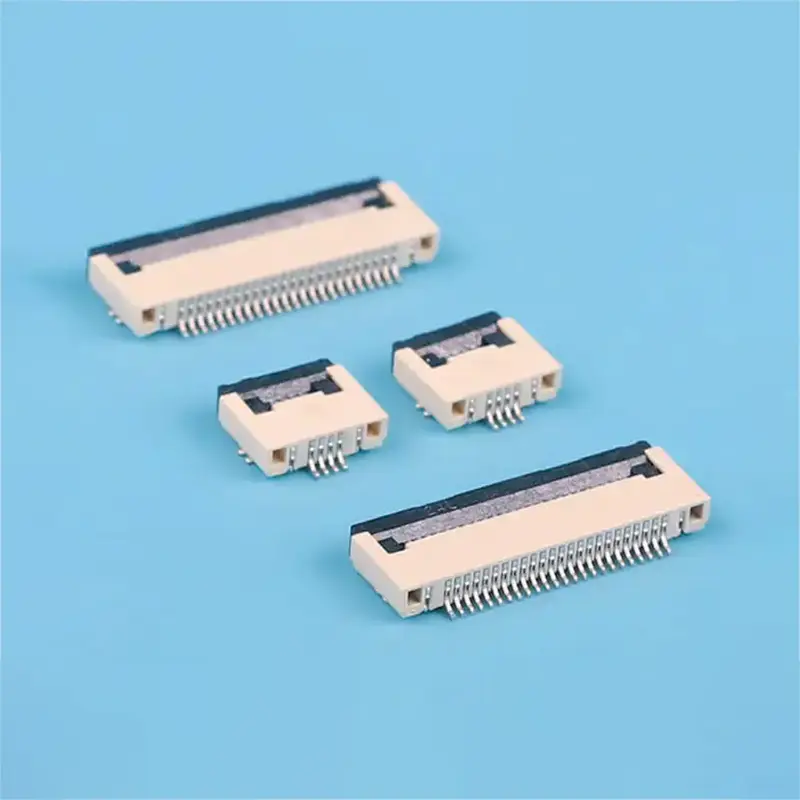

FPC Flat Connector 0.5mm Pitch is a connector product with small pitch design, high reliability, fast plug-in and pull-out, and good signal transmission performance. Its advantages lie in saving space, improving production efficiency, reducing production costs, enhancing signal transmission quality, adapting to various application scenarios, strong durability, easy installation and maintenance, providing customized services, and good after-sales service. Whether in the fields of smartphones, tablets, laptops, or digital cameras, FPC Flat Connector 0.5mm Pitch can provide customers with high-quality connection solutions to meet the needs of different industries and fields.0.5mm pitch easy-on fpc flat ribbon connector, 2.0mm height, locking zif slide type, horizontal contact, flexible printed circuit board connector

Send Inquiry

Product Description

✓ Product Advantages
Reduced Production Costs The small pitch design of FPC flat connector 0.5mm Pitch can reduce the number and length of connectors, thereby reducing production costs.
Improved Signal Transmission Quality The 0.5mm Pitch design enables the connector to provide better signal transmission performance, reducing signal loss and interference, and improving the efficiency and stability of electronic devices.
⚙ Specifications
FPC Connector Specifications
Technical ParameterValue
CKT Range4Pin to 65Pin
Current Rating0.5A AC/DC
Voltage Rating (Max)50V AC/DC
Working Temperature-25°C to +85°C
Contact ResistanceInitial ≤30mΩ / After Test ≤50mΩ
Insulation Resistance≥500MΩ
Withstand Voltage500VAC (rms)
Applicable PCB Thickness1.6mm to 2.0mm
📐 Mounting Measurement

Assembly Layout

Assembly layout

Applicable Flat Cable

Applicable Flat cable

P.C.B Layout

P.C.B Layout
i Product Description

Easy-on R/A Type

Material and Finish:

  • Housing: LCP UL 94V-0
  • Terminal: Phosphor bronze
  • Fitting: Brass
  • Finish: Tin-plated & Gold-plated
Product Diagram
CKT Part No DIM A DIM B
4XW05202-041.52.6
5XW05202-0523.1
6XW05202-062.53.6
7XW05202-0734.1
8XW05202-083.54.6
9XW05202-0945.1
10XW05202-104.55.6
11XW05202-1156.1
12XW05202-125.56.6
13XW05202-1367.1
14XW05202-146.57.6
............
65XW05202-6532.533.1
Frequently Asked Questions
Q1: What is the main application of the 0.5mm pitch FPC connector?
A: It is widely used in compact electronic devices such as smartphones, tablets, laptops, and medical equipment where space-saving and high-density wiring are required.
Q2: Does the connector support automated assembly?
A: Yes, the Easy-on R/A design and surface mount technology (SMT) compatibility make it suitable for high-speed automated pick-and-place assembly processes.
Q3: What are the temperature limitations for this product?
A: The operating temperature range is -25°C to +85°C, which includes the temperature rise during electrical current application.
Q4: Are different pin counts available for the XW05202 series?
A: Yes, we offer a wide range of pin counts from 4Pin up to 65Pin to meet various circuit requirements.
Q5: What materials ensure the durability of the connector?
A: The housing is made of LCP UL 94V-0 high-temperature plastic, and the terminals are phosphor bronze with tin or gold plating for excellent conductivity and corrosion resistance.
Q6: What is the benefit of the Gold-plated finish?
A: Gold plating provides superior oxidation resistance and maintains stable contact resistance over time, which is critical for high-reliability signal transmission.
