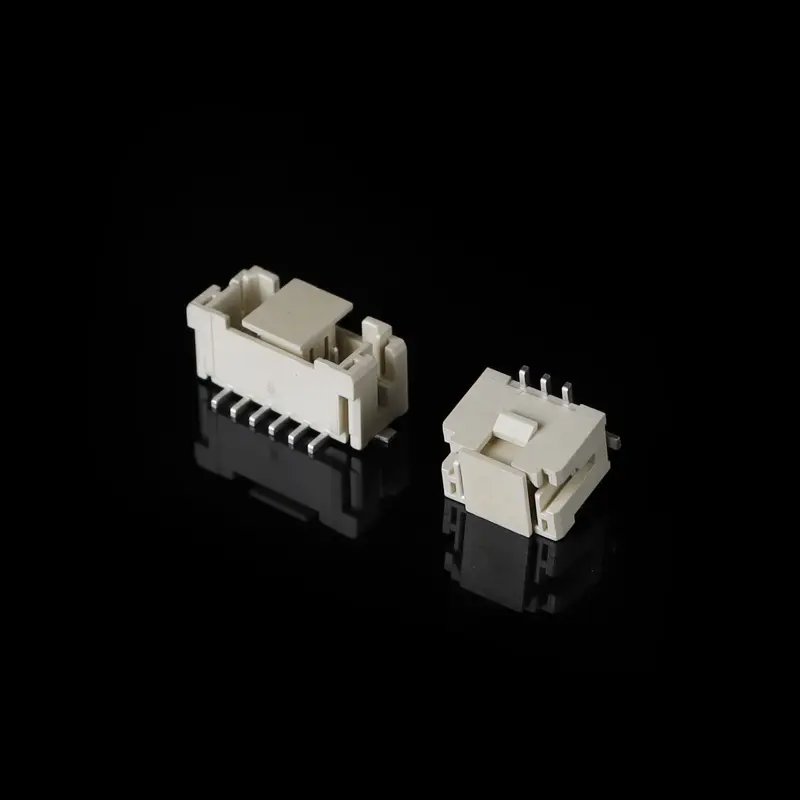

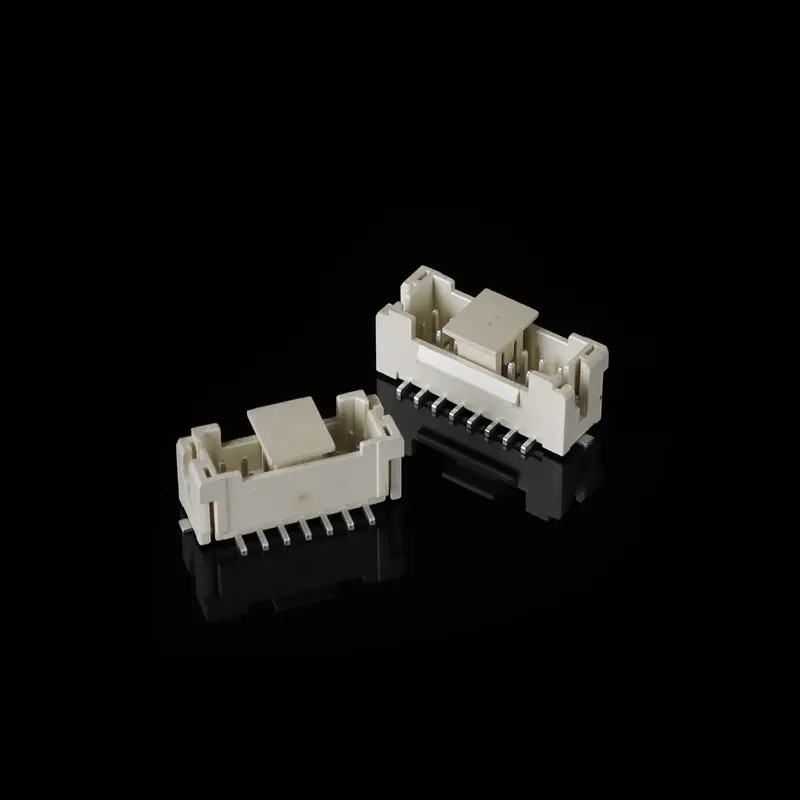

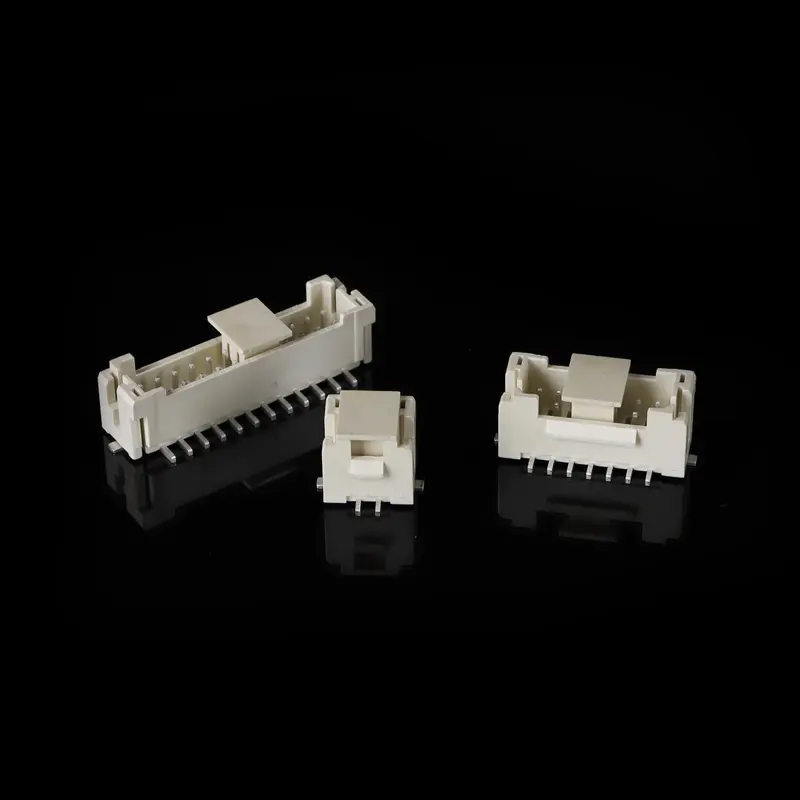

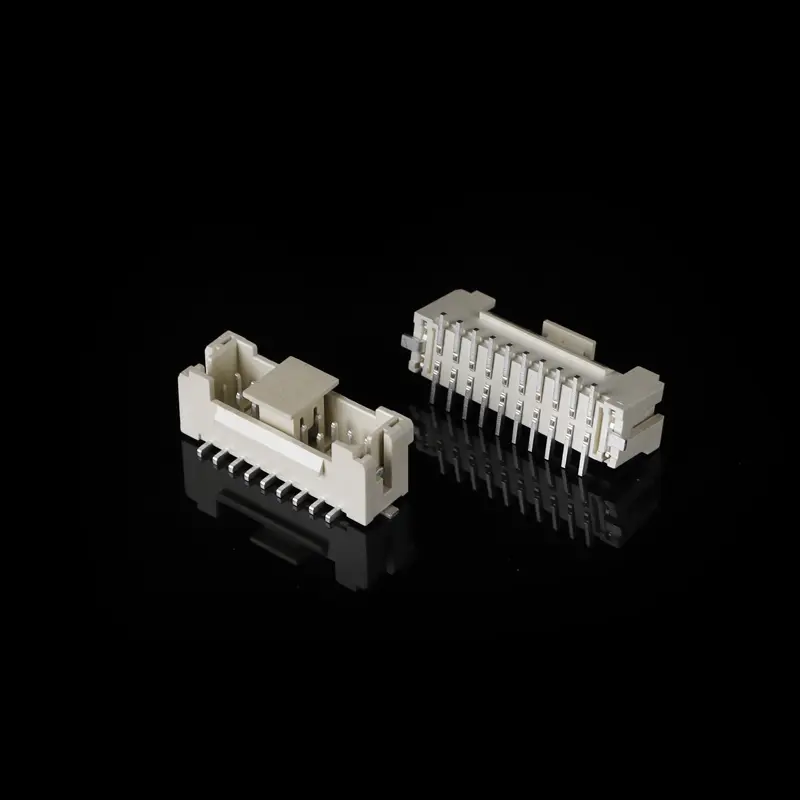

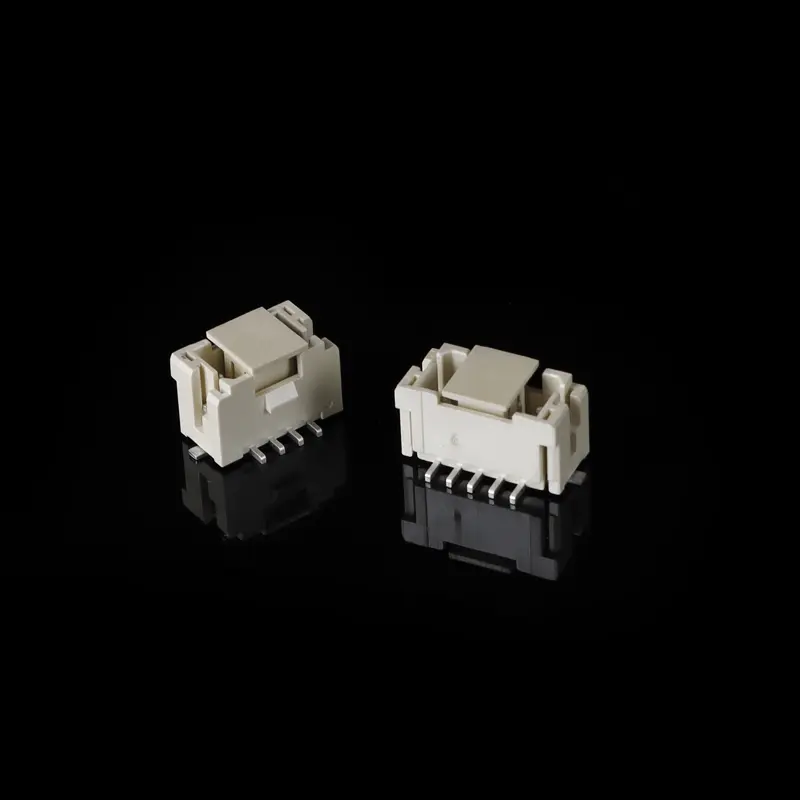

The 2.0mm Spacing Connector Horizontal Double Row Connector with Lock Plug-in is an ideal choice for internal interconnection in demanding electronic devices. Known for its excellent reliability and stable locking mechanism, it is widely used in household appliances such as washing machines, refrigerators, and air conditioners. Furthermore, it is suitable for industrial automation control systems including PLC modules, sensor interfaces, and motor drivers. This connector ensures stable signal transmission in communication equipment (routers, switches), office automation (printers, copiers), consumer electronics (game consoles, high-end audio), and automotive electronics.

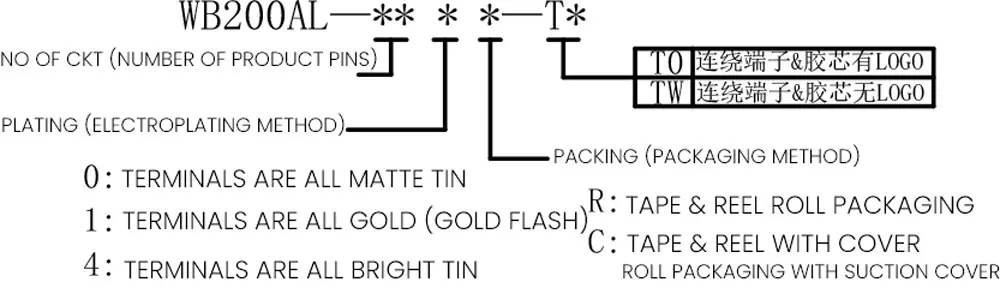

| No. | Name | Material |
|---|---|---|
| 1 | 2.0A type double row vertical WTB rubber core | LCP UL94V-0 Natural color |
| 2 | 2.0A type vertical (continuous winding) terminal | Copper alloy / Surface tin plating |
| 3 | 2.0A type double row vertical WTB suction cover | LCP UL94V-0 Natural color |

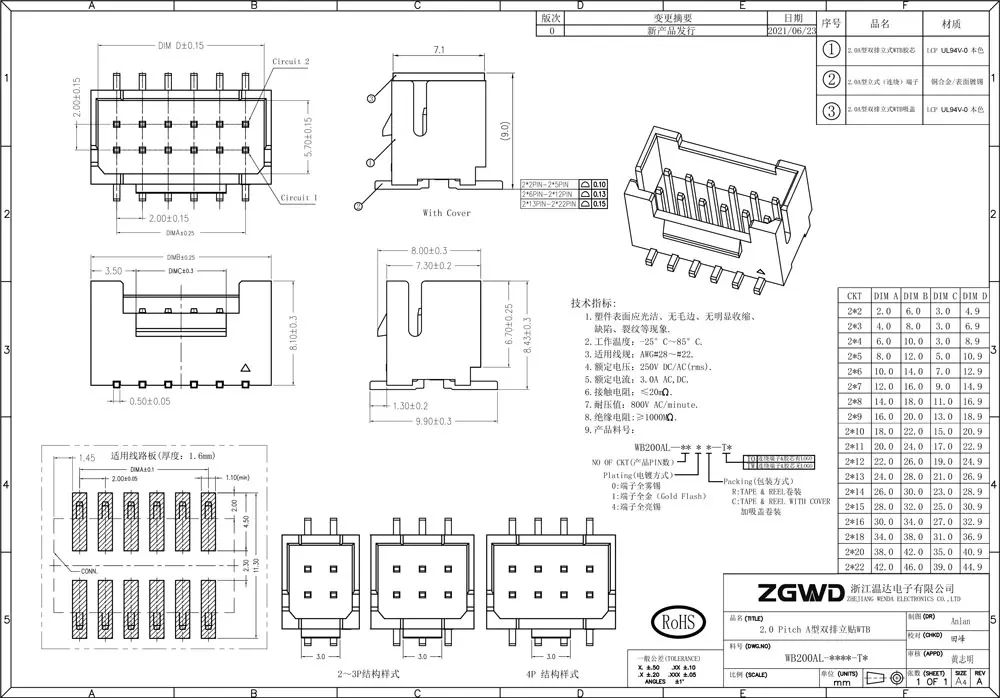

| CKT | DIM A | DIM B | DIM C | DIM D |
|---|---|---|---|---|
| 2*2 | 2.0 | 6.0 | 3.0 | 4.9 |
| 2*3 | 4.0 | 8.0 | 3.0 | 6.9 |
| 2*4 | 6.0 | 10.0 | 3.0 | 8.9 |
| 2*5 | 8.0 | 12.0 | 5.0 | 10.9 |
| 2*6 | 10.0 | 14.0 | 7.0 | 12.9 |
| 2*7 | 12.0 | 16.0 | 9.0 | 14.9 |
| 2*8 | 14.0 | 18.0 | 11.0 | 16.9 |
| 2*9 | 16.0 | 20.0 | 13.0 | 18.9 |
| 2*10 | 18.0 | 22.0 | 15.0 | 20.9 |
| 2*11 | 20.0 | 24.0 | 17.0 | 22.9 |
| 2*12 | 22.0 | 26.0 | 19.0 | 24.9 |
| 2*13 | 24.0 | 28.0 | 21.0 | 26.9 |
| 2*14 | 26.0 | 30.0 | 23.0 | 28.9 |
| 2*15 | 28.0 | 32.0 | 25.0 | 30.9 |
| 2*16 | 30.0 | 34.0 | 27.0 | 32.9 |
| 2*18 | 34.0 | 38.0 | 31.0 | 36.9 |
| 2*20 | 38.0 | 42.0 | 35.0 | 40.9 |
| 2*22 | 42.0 | 46.0 | 39.0 | 44.9 |
