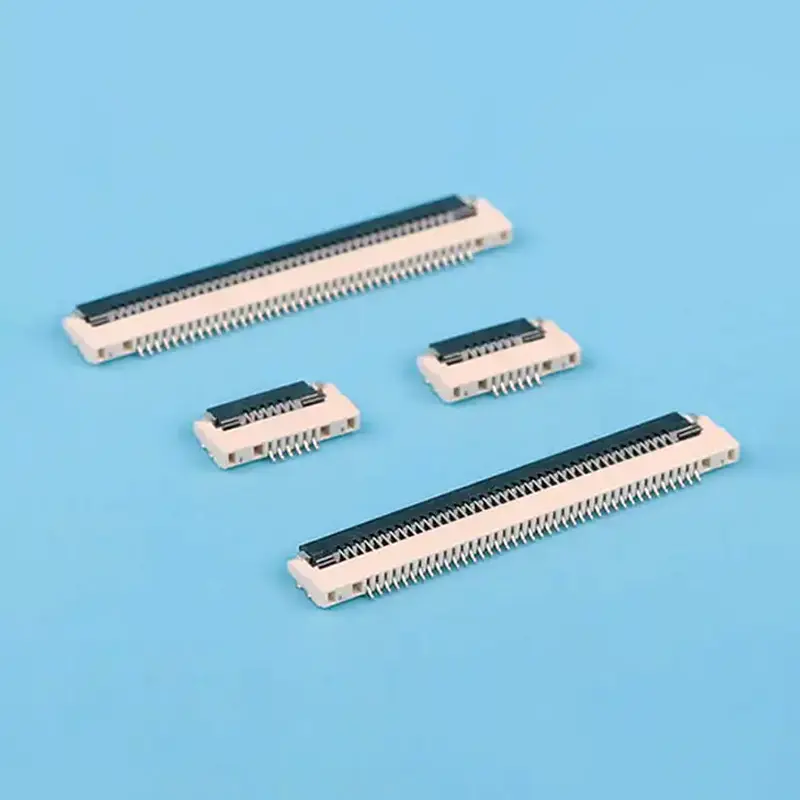

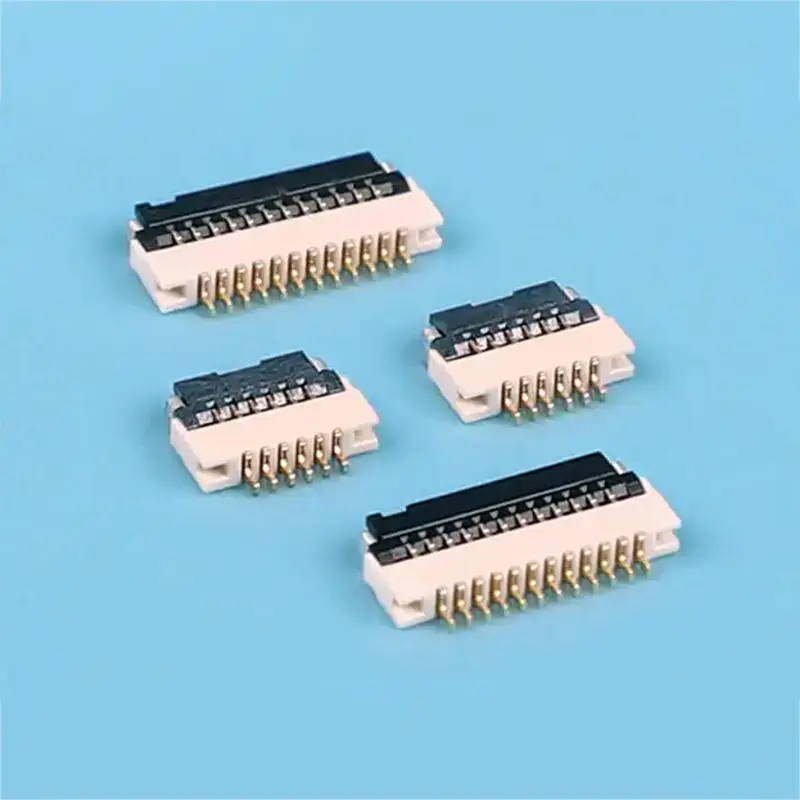

| Model Type | Diagram Reference | General Parameters |
|---|---|---|
| 0.5mm Pitch Easy on Type H=1.0 CKT: 4Pin to 50Pin |
|
|
| 0.5mm Pitch Easy On Type H=1.2 CKT: 4Pin to 60Pin |
|
Assembly Layout
Applicable Flat Cable
P.C.B Layout
Assembly Layout
Applicable Flat Cable
P.C.B Layout
Material and Finish:
Housing: LCP UL94V-0 | Terminal: phosphor bronze | Fitting: phosphor bronze
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 4 | XW05102-04 | 1.5 | 2.6 |
| 5 | XW05102-05 | 2 | 3.1 |
| 6 | XW05102-06 | 2.5 | 3.6 |
| 10 | XW05102-10 | 4.5 | 5.6 |
| 50 | XW05102-50 | 24.5 | 25.6 |
Material and Finish:
Housing: LCP UL94V-0 | Terminal: phosphor bronze | Fitting: phosphor bronze
Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 4 | XW05122-04 | 1.5 | 2.55 |
| 5 | XW05122-05 | 2 | 3.05 |
| 6 | XW05122-06 | 2.5 | 3.55 |
| 10 | XW05122-10 | 4.5 | 5.55 |
| 60 | XW05122-60 | 29.5 | 30.55 |
A: These connectors feature a standard 0.5mm pitch, suitable for high-density electronic applications.
A: The housing is made from LCP (Liquid Crystal Polymer) with a UL94V-0 flame retardant rating.
A: The current rating is 0.5A AC/DC, and the maximum voltage rating is 50V AC/DC.
A: Yes, the working temperature range is from -25℃ to +85℃, including the temperature rise during electrical current application.
A: The phosphor bronze terminals are available in both Tin-plated and Gold-plated finishes to ensure excellent conductivity and corrosion resistance.
A: These connectors are designed for PCB boards with a thickness ranging from 1.6mm to 2.0mm.
