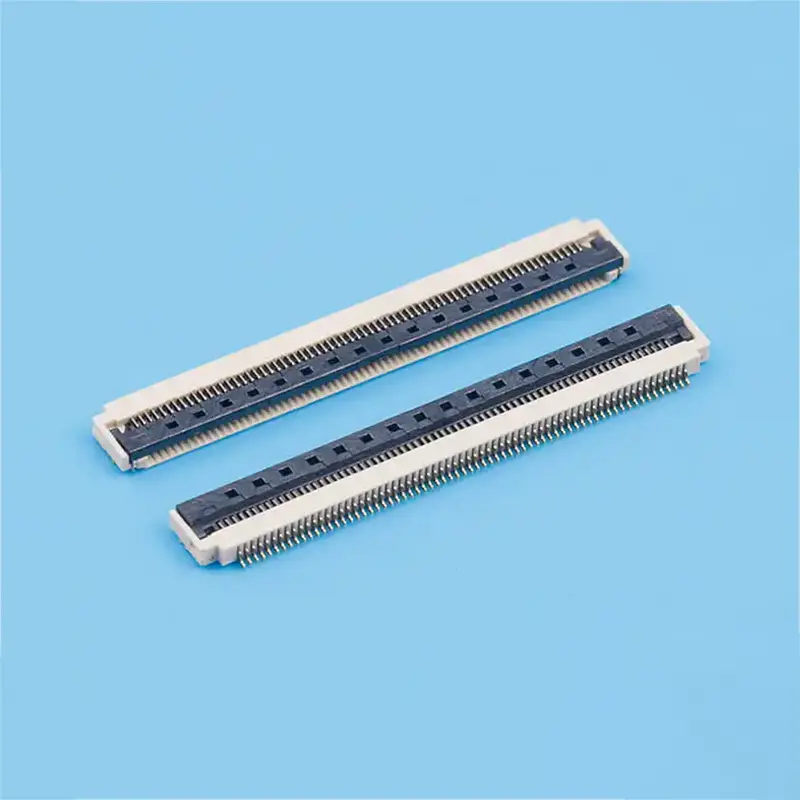

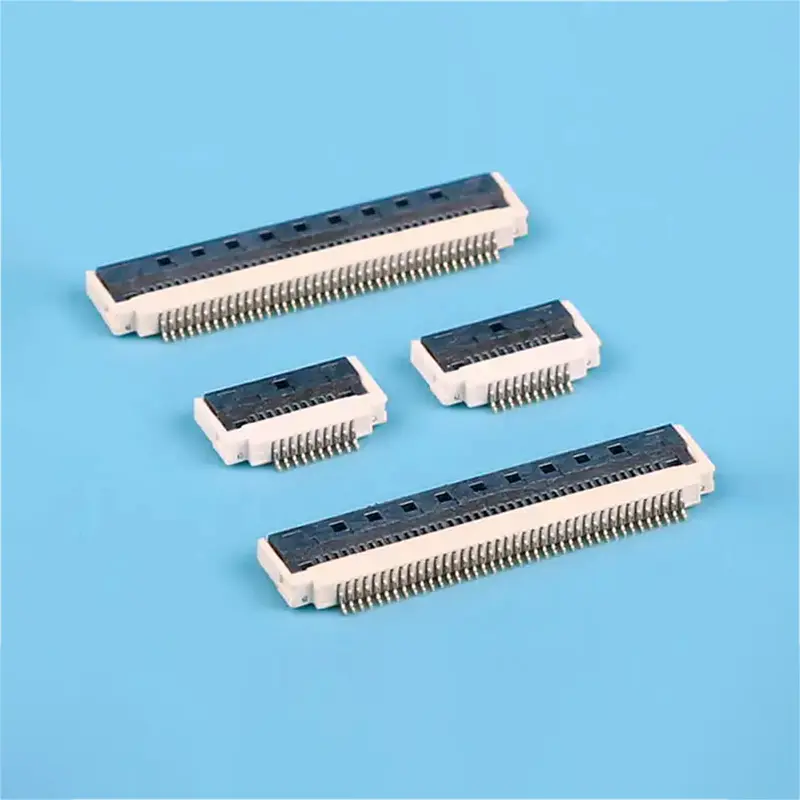

China 0.5mm Pitch Gold Plated Bottom-Entry FPC/FFC Connector, Butterfly Lock Flip-Type, 2.0mm Height Manufacturer, Factory
China 0.5mm Pitch Gold Plated Bottom-Entry FPC/FFC Connector, Butterfly Lock Flip-Type, 2.0mm Height Manufacturer, Factory
1 / 2
China 0.5mm Pitch Gold Plated Bottom-Entry FPC/FFC Connector, Butterfly Lock Flip-Type, 2.0mm Height Manufacturer, Factory
China 0.5mm Pitch Gold Plated Bottom-Entry FPC/FFC Connector, Butterfly Lock Flip-Type, 2.0mm Height Manufacturer, Factory

China 0.5mm Pitch Gold Plated Bottom-Entry FPC/FFC Connector, Butterfly Lock Flip-Type, 2.0mm Height Manufacturer, Factory

0.5mm pitch 2.0mm height, easy-on r/a with buckle fpc flat connectors, high-density integration flexible printed circuit board connectorsï¼›0.5mm pitch 2.0mm height easy-on r/a with buckle large solder fpc flat ribbon connector, flexible printed circuit board connectors, durable interface.

Send Inquiry

Product Description

Product Overview

The 0.5mm pitch Easy On H=2.0 connector features a 0.5mm pitch and a 2.0mm height. Its easy-to-install, right-angle snap-on design simplifies assembly for quick and reliable installation. This feature is particularly beneficial in high-density environments where space is limited. Large solder joints enhance connection stability, ensuring a durable interface even in harsh conditions.

This connector is rated for 0.5A AC/DC and a maximum voltage of 50V AC/DC, offering versatility and suitability for a wide range of applications. Whether used in consumer electronics, automotive systems, or industrial machinery, this connector provides a reliable power and signal transmission solution. Its operating temperature range of -25°C to +85°C ensures reliable operation in a wide range of environmental conditions, including elevated temperatures when powered.

Technical Specifications

Model Type Diagram Detailed Specifications
0.5mm Pitch Easy On Type H=2.0 with Buckle Buckle Type
  • CKT: 5Pin to 80Pin
  • Current rating: 0.5A AC/DC
  • Voltage rating(max): 50V, AC/DC
  • Working Temp: -25°C~+85°C
  • Contact resistance: ≤50mΩ
  • Insulation resistance: ≥500MΩ
  • Withstand voltage: 150VAC(rms)
  • Applicable PCB board thickness: 1.6mm to 2.0mm
0.5mm Pitch Easy On Type H=2.0 with Large Solder Large Solder Type

Mounting & Layout Measurements

With Buckle Type

Assembly layout 1 Assembly Layout
Flat cable 1 Applicable Flat Cable
PCB Layout 1 P.C.B Layout

Large Solder Type

Assembly layout 2 Assembly Layout
Flat cable 2 Applicable Flat Cable
PCB Layout 2 P.C.B Layout

Material & Dimensions

Easy-on R/A With Buckle
Material: Housing: LCP UL94V-0 | Terminal: phosphor bronze | Fitting: phosphor bronze
Finish: Tin-plated & Gold-plated
Buckle Dimensions
CKTPart NoDIM ADIM B
5XW05202-056.83.07
10XW05202-109.35.57
15XW05202-1511.88.07
80XW05202-8044.340.57
Easy-on R/A With Buckle Large solder
Material: Housing: LCP UL 94V-0 | Terminal: phosphor bronze | Fitting: phosphor bronze
Finish: Tin-plated & Gold-plated
Large Solder Dimensions
CKTPart NoDIM ADIM B
5XW05202-056.83.07
10XW05202-109.35.57
15XW05202-1511.88.07
80XW05202-8044.340.57
Frequently Asked Questions
1. What are the key dimensions of this connector?
The connector features a 0.5mm pitch and a low profile height of 2.0mm, making it ideal for compact electronic assemblies.
2. What is the current and voltage rating?
This series is rated for a maximum current of 0.5A AC/DC and a maximum voltage of 50V AC/DC.
3. What temperature range can this connector withstand?
It is designed to operate reliably within a temperature range of -25°C to +85°C, including the temperature rise when electrical current is applied.
4. What materials are used for the housing and terminals?
The housing is made of LCP (UL94V-0), and the terminals and fittings are crafted from phosphor bronze with tin or gold plating options.
5. Is it suitable for high-density PCB layouts?
Yes, the right-angle snap-on design and the 0.5mm pitch are specifically engineered for high-density environments where space optimization is critical.
6. What is the pin count range available?
The connector is available in a wide range of circuit counts, from 5 pins up to 80 pins, to accommodate various signal requirements.
