Wholesale 0.5mm Pitch Horizontal Drawer FPC/FFC Connector, SMT Type, Top-Bottom Contact, 4-60 Positions Manufacturers, Factories
Wholesale 0.5mm Pitch Horizontal Drawer FPC/FFC Connector, SMT Type, Top-Bottom Contact, 4-60 Positions Manufacturers, Factories
1 / 2
Wholesale 0.5mm Pitch Horizontal Drawer FPC/FFC Connector, SMT Type, Top-Bottom Contact, 4-60 Positions Manufacturers, Factories
Wholesale 0.5mm Pitch Horizontal Drawer FPC/FFC Connector, SMT Type, Top-Bottom Contact, 4-60 Positions Manufacturers, Factories

Wholesale 0.5mm Pitch Horizontal Drawer FPC/FFC Connector, SMT Type, Top-Bottom Contact, 4-60 Positions Manufacturers, Factories

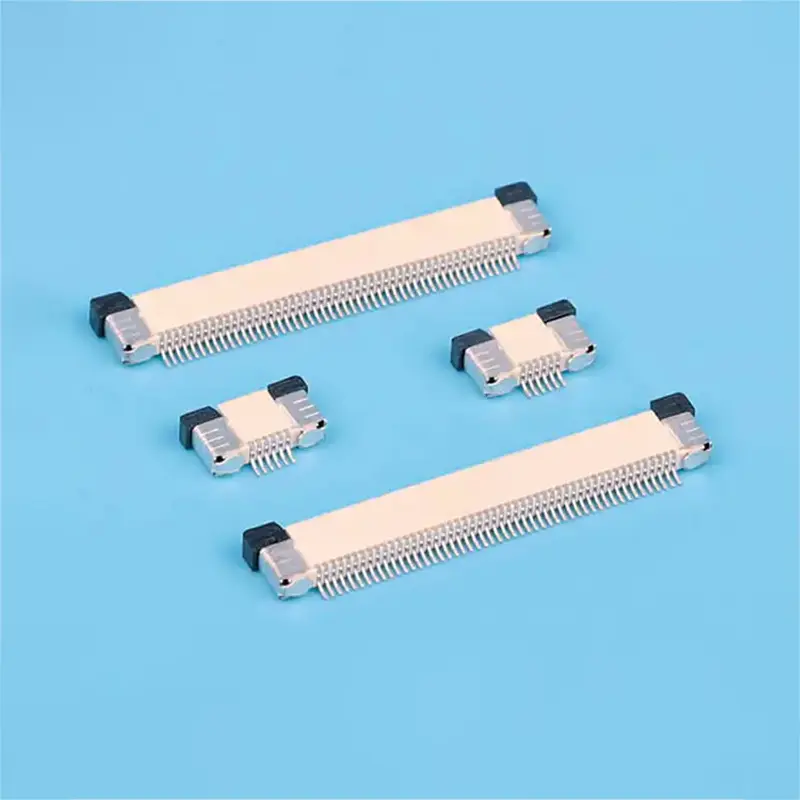

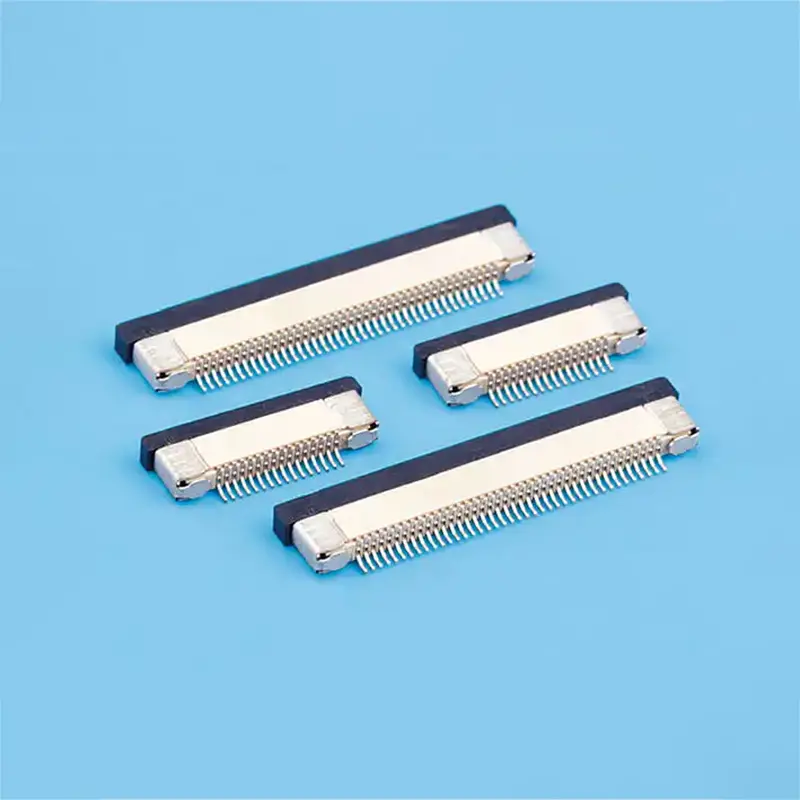

0.5mm pitch 2.0mm height zif r/a upper contact fpc flexible flat cable connector, horizontal type, zif slide lock, pcb board adapter for electronics, data transmission;0.5mm pitch 2.0mm height, zif r/a down contact fpc flat ribbon connectors, flexible printed circuit board connectors, easy insertion, durable locking design.

Send Inquiry

Product Description

Product Advantages
Model Diagram Specification
0.5mm Pitch ZIF R/A Type Upper Contact H=2.0
  • CKT: 4Pin to 60Pin
  • Current rating: 0.5A AC/DC
  • Voltage rating(max): 50V, AC/DC
  • Working Temperature: -25°C~+85°C
  • Contact resistance: Initial ≤30mΩ, After testing ≤50mΩ
  • Insulation resistance: 2500MΩ
  • Withstand voltage: 500VAC(rms)
  • Applicable PCB board thickness: 1.6mm to 2.0mm
0.5mm Pitch ZIF R/A Type Down Contact H=2.0
Mounting Measurement
Layout & Assembly Diagrams
Assembly Layout
Applicable Flat Cable
P.C.B Layout
Product Description
ZIF R/A Upper Contact

Material and Finish:
Housing: LCP UL94V-0 & Terminal: Phosphor Bronze & Fitting: Brass;
Finish: Tin-plated & Gold-plated

CKT Part No DIM A DIM B
4LW05201-041.52.56
5LW05201-0523.06
10LW05201-104.55.56
14LW05201-146.57.56
60LW05201-6029.530.56
ZIF R/A Down Contact

Material and Finish:
Housing: LCP UL 94V-0 & Terminal: Phosphor Bronze & Fitting: Brass;
Finish: Tin-plated & Gold-plated

CKT Part No DIM A DIM B
4LW05202-041.52.56
5LW05202-0523.06
10LW05202-104.55.56
14LW05202-146.57.56
60LW05202-6029.530.56
Frequently Asked Questions
What is the pitch and type of this connector?
This is a 0.5mm pitch ZIF (Zero Insertion Force) Right Angle (R/A) type connector, available in both upper and down contact configurations.
What is the range of circuits (CKT) available?
The connector supports a wide range of positions, from 4Pin up to 60Pin.
What are the electrical ratings for this product?
It has a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.
What materials are used for the housing and terminals?
The housing is made of LCP UL94V-0, terminals are phosphor bronze, and the fittings are brass with tin or gold plating options.
What is the operating temperature range?
The working temperature ranges from -25°C to +85°C, which includes the temperature rise during electrical current application.
What is the recommended PCB thickness for mounting?
The applicable PCB board thickness for these connectors is between 1.6mm and 2.0mm.
