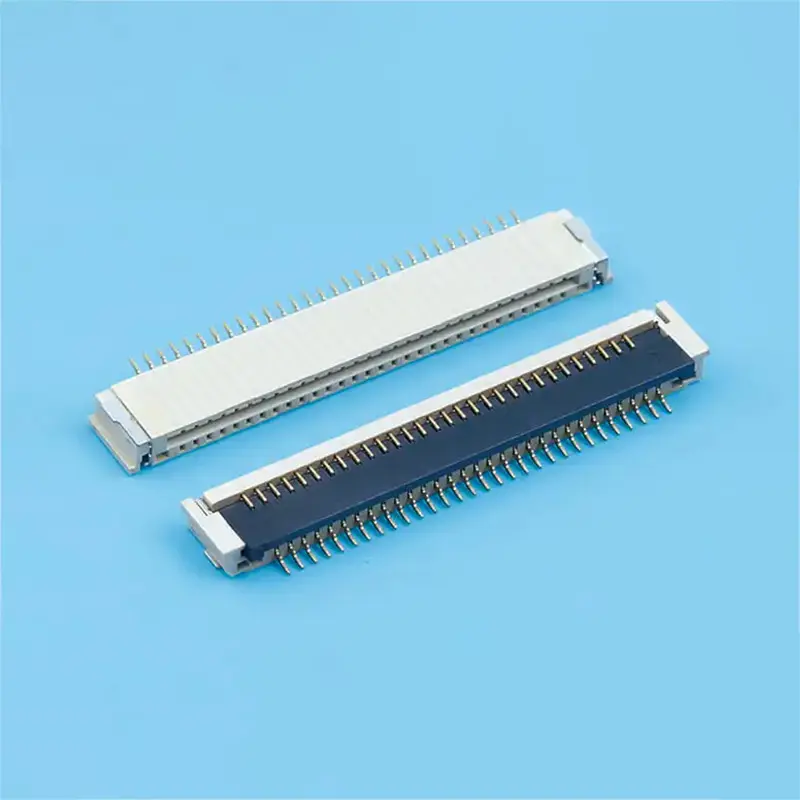

The connector supports multiple configurations from 10Pin to 68Pin and can be used in a variety of electronic systems. The 0.5A AC/DC rated current capacity ensures that it can meet medium power requirements, while the 50V AC/DC maximum rated voltage provides a safe operating range for most electronic circuits. These specifications make the 0.5mm pitch rear flap H=2.7 connector a reliable choice for engineers and designers who want to integrate FPC technology into their products.
The connector has an operating temperature range of -25°C to +85°C and can withstand a variety of environmental conditions, including the temperature rise generated when power is applied. Such a wide operating temperature range ensures that the connector can operate reliably in a variety of applications from consumer electronics to industrial equipment. The electrical performance characteristics of the 0.5mm pitch rear flap H=2.7 connector are low contact resistance, with an initial value of ≤20mΩ and a maximum value of ≤40mΩ after environmental testing.
Material and Finish:
Housing: LCP UL 94V-0 | Terminal: Phosphor Bronze | Fitting: Brass
Finish: Tin-plated & Gold-plated

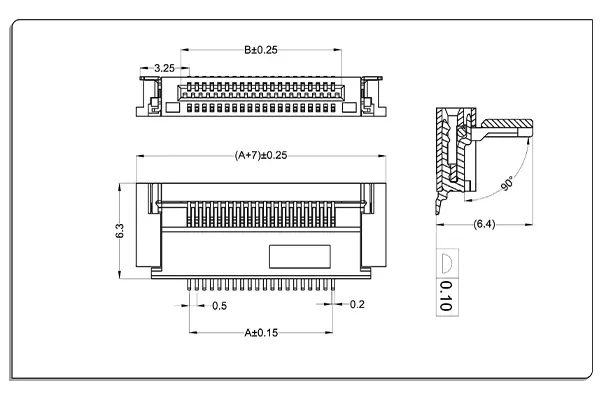

| CKT | Part No | DIM A | DIM B |
| 10 | HW05270-10 | 4.5 | 5.6 |
| 14 | HW05270-14 | 6.5 | 7.6 |
| 19 | HW05270-19 | 9 | 10.1 |
| 20 | HW05270-20 | 9.5 | 10.6 |
| 30 | HW05270-30 | 14.5 | 15.6 |
| 32 | HW05270-32 | 15.5 | 16.6 |
| 40 | HW05270-40 | 19.5 | 20.6 |
| 41 | HW05270-41 | 20 | 21.1 |
| 50 | HW05270-50 | 24.5 | 25.6 |
| 51 | HW05270-51 | 25 | 26.1 |
| 60 | HW05270-60 | 29.5 | 30.6 |
| 68 | HW05270-68 | 33.5 | 34.6 |
