Wholesale FPC/FFC 1.0mm pitch 2.0mm 2.7mm height flip cover horizontal SMT ribbon cable connector Manufacturers, Suppliers
Wholesale FPC/FFC 1.0mm pitch 2.0mm 2.7mm height flip cover horizontal SMT ribbon cable connector Manufacturers, Suppliers
1 / 2
Wholesale FPC/FFC 1.0mm pitch 2.0mm 2.7mm height flip cover horizontal SMT ribbon cable connector Manufacturers, Suppliers
Wholesale FPC/FFC 1.0mm pitch 2.0mm 2.7mm height flip cover horizontal SMT ribbon cable connector Manufacturers, Suppliers

Wholesale FPC/FFC 1.0mm pitch 2.0mm 2.7mm height flip cover horizontal SMT ribbon cable connector Manufacturers, Suppliers

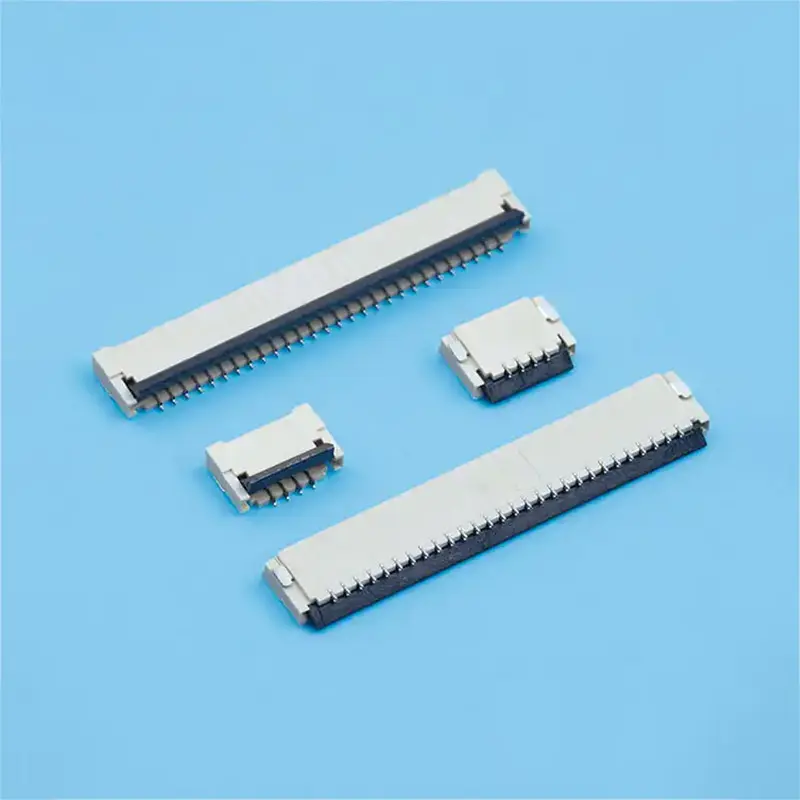

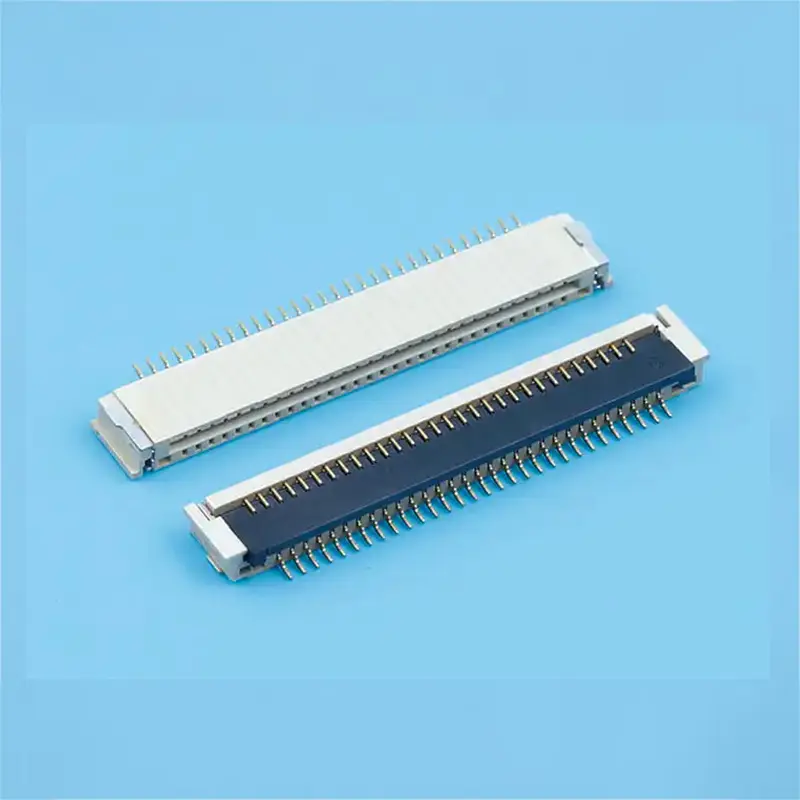

Fpc flat connector, 1.0mm pitch, 2.0mm height, back flip r/a, flexible printed circuit cable connectors, for electronics and prototypingï¼›High-density fpc flat ribbon cable connector, 1.0mm pitch, 2.7mm height, back flip r/a, durable interface, electronics internal wiring.

Send Inquiry

Product Description

⚙️ Specifications
Model Diagram Detailed Specifications
1.0mm Pitch Back Flip Type H=2.0 H=2.0 Diagram
  • 1. CKT: 4Pin to 30Pin
  • 2. Current rating: 0.5A AC/DC
  • 3. Voltage rating(max): 50V, AC/DC
  • 4. Working Temperature: -25°C~+85°C
  • 5. Contact resistance: Initial ≤30mΩ / After test ≤50mΩ
  • 6. Insulation resistance: ≥500MΩ
  • 7. Withstand voltage: 500VAC(rms)
  • 8. Applicable PCB board thickness: 1.6mm to 2.0mm
1.0mm Pitch Back Flip Type H=2.7 H=2.7 Diagram
  • 1. CKT: 4Pin to 35Pin
  • 2. Current rating: 0.5A AC/DC
  • 3. Voltage rating(max): 50V, AC/DC
  • 4. Working Temperature: -25°C~+85°C
  • 5. Contact resistance: Initial ≤20mΩ / After test ≤40mΩ
  • 6. Insulation resistance: ≥100MΩ
  • 7. Withstand voltage: 500VAC(rms)
  • 8. Applicable PCB board thickness: 1.6mm to 2.0mm
📐 Mounting Measurement

1.0mm Pitch Back Flip Type H=2.0

Assembly Layout

Assembly Layout H2.0

Applicable Flat Cable

Flat Cable H2.0

P.C.B Layout

PCB Layout H2.0

1.0mm Pitch Back Flip Type H=2.7

Assembly Layout

Assembly Layout H2.7

Applicable Flat Cable

Flat Cable H2.7

P.C.B Layout

PCB Layout H2.7
📝 Product Description

Back Flip R/A

Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated

Back Flip R/A
CKT Part No DIM A DIM B
4HW10200-0435.02
5HW10200-0546.02
6HW10200-0657.02
7HW10200-0768.02
8HW10200-0879.02
9HW10200-09810.02
10HW10200-10911.02
11HW10200-111012.02
12HW10200-121113.02
13HW10200-131214.02
14HW10200-141315.02
30HW10200-302931.02

Back Flip R/A With Buckle

Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Brass
Finish: Tin-plated & Gold-plated

Back Flip R/A With Buckle
CKT Part No DIM A DIM B
4HW10270-0435.1
5HW10270-0546.1
6HW10270-0657.1
7HW10270-0768.1
8HW10270-0879.1
9HW10270-09810.1
10HW10270-10911.1
11HW10270-111012.1
12HW10270-121113.1
13HW10270-131214.1
14HW10270-141315.1
35HW10270-353436.1
❓ Frequently Asked Questions
What are the available heights for these back-flip connectors?
We offer two height options: H=2.0mm and H=2.7mm to suit different PCB design requirements.
What is the pin count range for the 1.0mm pitch series?
The 1.0mm pitch back flip type supports from 4-pin up to 30-pin for the H=2.0 model, and up to 35-pin for the H=2.7 model.
What is the operating temperature range?
The connectors are designed to operate reliably within a temperature range of -25°C to +85°C, including the temperature rise during electrical current application.
What materials are used for the housing and terminals?
The housing is made of LCP UL 94V-0. Terminals are crafted from phosphor bronze, with fitting options in either phosphor bronze or brass, depending on the model.
What is the electrical rating for these components?
These connectors have a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.
What PCB thickness is compatible with these connectors?
The applicable PCB board thickness for these 1.0mm pitch connectors ranges from 1.6mm to 2.0mm.
