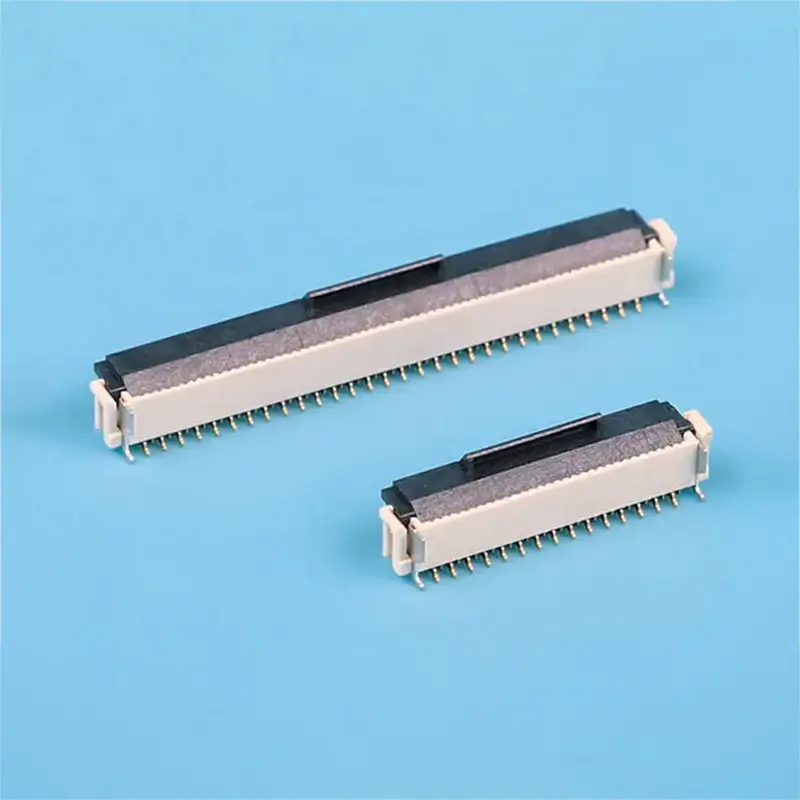

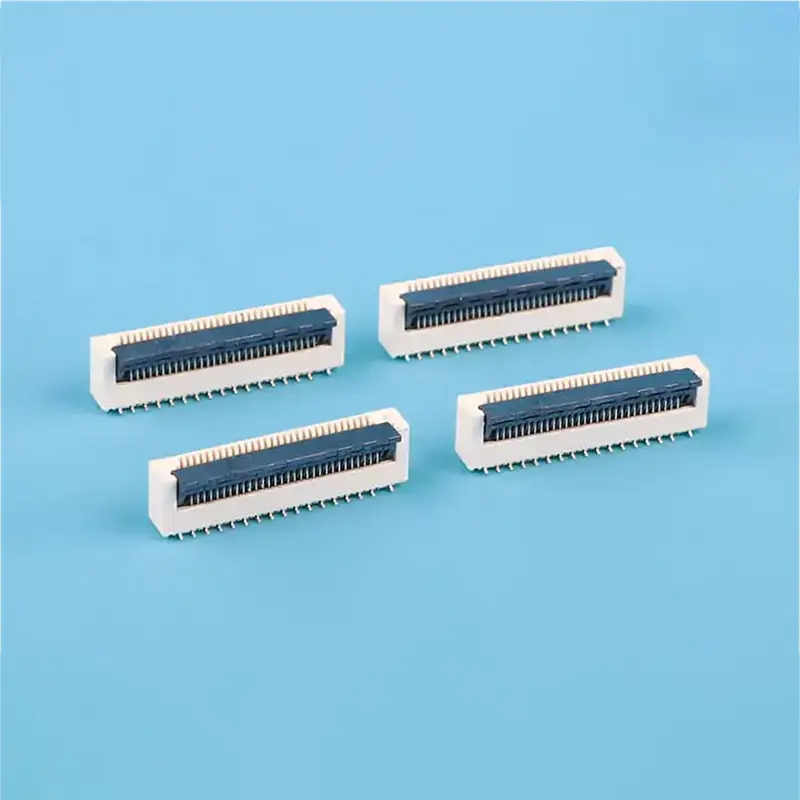

Wholesale ‌FPC FFC 0.5mm Pitch Vertical SMT 5.2H 5.4H Flip-Cover Latch Connector Suppliers, Factories
Wholesale ‌FPC FFC 0.5mm Pitch Vertical SMT 5.2H 5.4H Flip-Cover Latch Connector Suppliers, Factories
1 / 2
Wholesale ‌FPC FFC 0.5mm Pitch Vertical SMT 5.2H 5.4H Flip-Cover Latch Connector Suppliers, Factories
Wholesale ‌FPC FFC 0.5mm Pitch Vertical SMT 5.2H 5.4H Flip-Cover Latch Connector Suppliers, Factories

Wholesale ‌FPC FFC 0.5mm Pitch Vertical SMT 5.2H 5.4H Flip-Cover Latch Connector Suppliers, Factories

0.5mm pitch 4.0mm height flat fpc connector, easy-on s/t positive pointer with buckle, flexible printed circuit board cable connector, high reliability, for communication and industrial useï¼›0.5mm pitch, 5.4mm height, flexible printed circuit fpc connector, easy-on s/t positive pointer with buckle, slide lock, dual contact, high reliability.

Send Inquiry

Product Description

Specifications

Model Diagram Specification
0.5mm Pitch Easy On Type H=5.2 with Buckle 1. CKT: 5Pin to 80Pin
2. Current rating: 0.5A AC/DC
3. Voltage rating(max): 50V AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: ≤50mΩ
6. Insulation resistance: ≥500MΩ
7. Withstand voltage: 150VAC(rms)
8. Applicable PCB board thickness: 1.6mm to 2.0mm
0.5mm Pitch Easy On Type H=5.4 with Buckle

Mounting Measurement

Type Assembly Layout Applicable Flat Cable P.C.B Layout
0.5mm Pitch Easy On H=5.2
0.5mm Pitch Easy On H=5.4

Product Description

Easy-on S/T Positive pointer With Buckle H=5.2

Material: Housing: LCP UL 94V-0; Terminal: phosphor bronze; Fitting: phosphor bronze.

Finish: Tin-plated & Gold-plated.

H=5.2 Drawing
CKTPart NoDIM ADIM B
5XL05523-056.72
15XL05523-1511.77
80XL05523-8044.239.5

Easy-on S/T Positive pointer With Buckle H=5.4

Material: Housing: LCP UL 94V-0; Terminal: phosphor bronze; Fitting: phosphor bronze.

Finish: Tin-plated & Gold-plated.

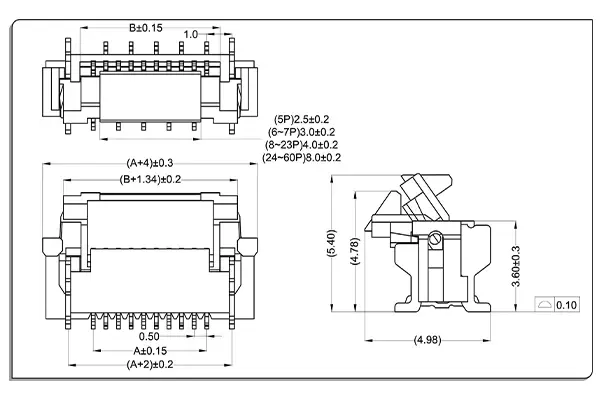

H=5.4 Drawing
CKTPart NoDIM ADIM B
5XL05543-0523.06
15XL05543-1578.06
60XL05543-6029.539.5
Frequently Asked Questions (FAQ)
1. What is the pitch size of this connector?
This connector features a 0.5mm pitch.
2. What is the working temperature range?
The operating temperature ranges from -25°C to +85°C.
3. What is the applicable PCB board thickness?
It is designed for PCB boards with a thickness of 1.6mm to 2.0mm.
4. What materials are used for the housing and terminals?
The housing is made of LCP UL 94V-0, and the terminals/fittings are made of phosphor bronze.
5. What is the voltage rating of this connector?
The maximum voltage rating is 50V AC/DC.
