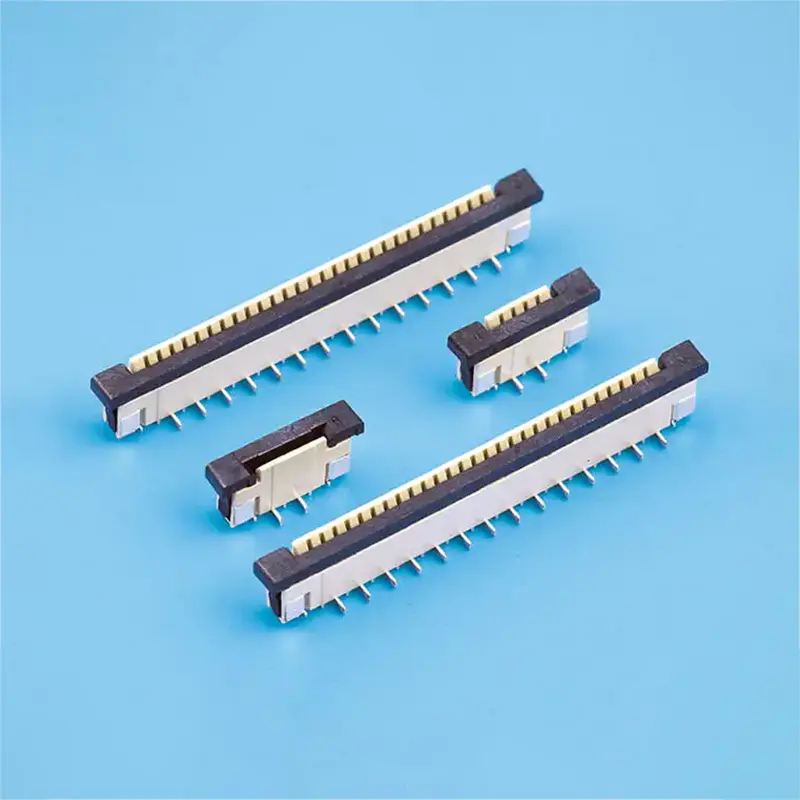

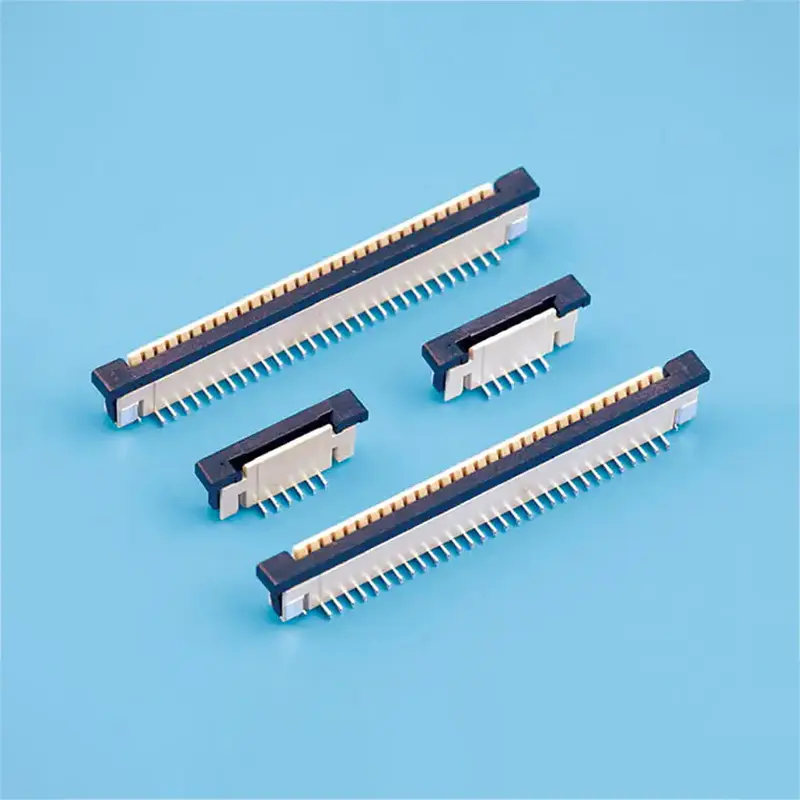

Wholesale FPC Connector FFC 1.0mm Pitch Vertical SMT Push Pull Lock Connector 5.5mm Height Single Row Socket for Flat Flex Cable Manufacturers, Suppliers

1 / 2

Wholesale FPC Connector FFC 1.0mm Pitch Vertical SMT Push Pull Lock Connector 5.5mm Height Single Row Socket for Flat Flex Cable Manufacturers, Suppliers

1.0mm pitch 5.5mm height fpc flat connector, zif s/t, high-density flex cable adapter for pcb, secure lockingï¼›1.0mm pitch 5.5mm height fpc flat connector, zif s/t, high-density flex cable adapter for pcb, secure locking.

Send Inquiry

Product Description

📋

Technical Specifications

Model	Diagram	Specification Details
1.0mm Pitch ZIF S/T FPC Flat Connector H=5.5		CKT: 4Pin to 40Pin Current rating: 0.5A AC/DC Voltage rating: 50V, AC/DC Working Temp: -25°C to +85°C Contact resistance: Initial ≤30mΩ; After test ≤60mΩ Insulation resistance: ≥500MΩ Withstand voltage: 250VAC(rms) PCB Thickness: 1.6mm to 2.0mm
1.0mm Pitch ZIF S/T Abreast PIN H=5.5

📐

Mounting & Layout Measurement

1.0mm Pitch ZIF S/T FPC Flat Connector

Assembly Layout

Applicable Flat Cable

P.C.B Layout

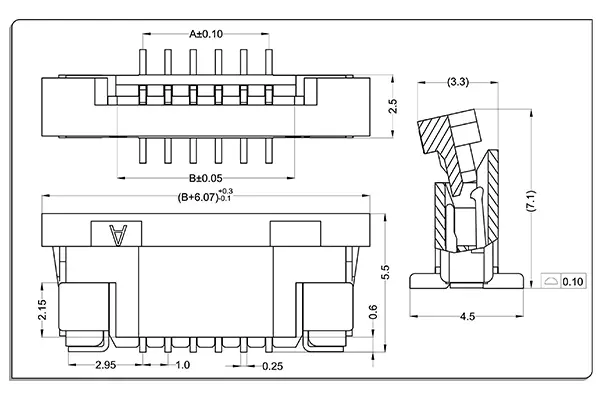

1.0mm Pitch ZIF S/T Abreast PIN

Assembly Layout

Applicable Flat Cable

P.C.B Layout

🔍

Product Description & Materials

Model: LL10553 Series (FPC Flat)

Material and Finish:

Housing: LCP UL 94V-0
Terminal: Phosphor Bronze
Fitting: Brass
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
4	LL10553-04	3	5.03
10	LL10553-10	9	11.03
14	LL10553-14	13	15.03
40	LL10553-40	39	41.03

Model: LL10550 Series (Abreast PIN)

Material and Finish:

Housing: LCP UL 94V-0
Terminal: Phosphor Bronze
Fitting: Brass
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
4	LL10550-04	3	5.03
10	LL10550-10	9	11.03
14	LL10550-14	13	15.03
40	LL10550-40	39	41.03

❓

Frequently Asked Questions

What is the pitch size of these ZIF connectors?

These connectors feature a 1.0mm pitch design, suitable for high-density electronic packaging.

What is the maximum current and voltage rating?

The current rating is 0.5A AC/DC, and the maximum voltage rating is 50V AC/DC.

What materials are used for the housing and terminals?

The housing is made of LCP UL 94V-0, while the terminals are phosphor bronze with tin or gold plating options.

What range of pin counts are available?

We offer a wide range of circuit configurations from 4 pins up to 40 pins.

Are these connectors compatible with standard PCB thicknesses?

Yes, they are designed to be used with applicable PCB board thicknesses ranging from 1.6mm to 2.0mm.

What is the operating temperature range?

The connectors can operate effectively in temperatures ranging from -25°C to +85°C, including the temperature rise during current application.
