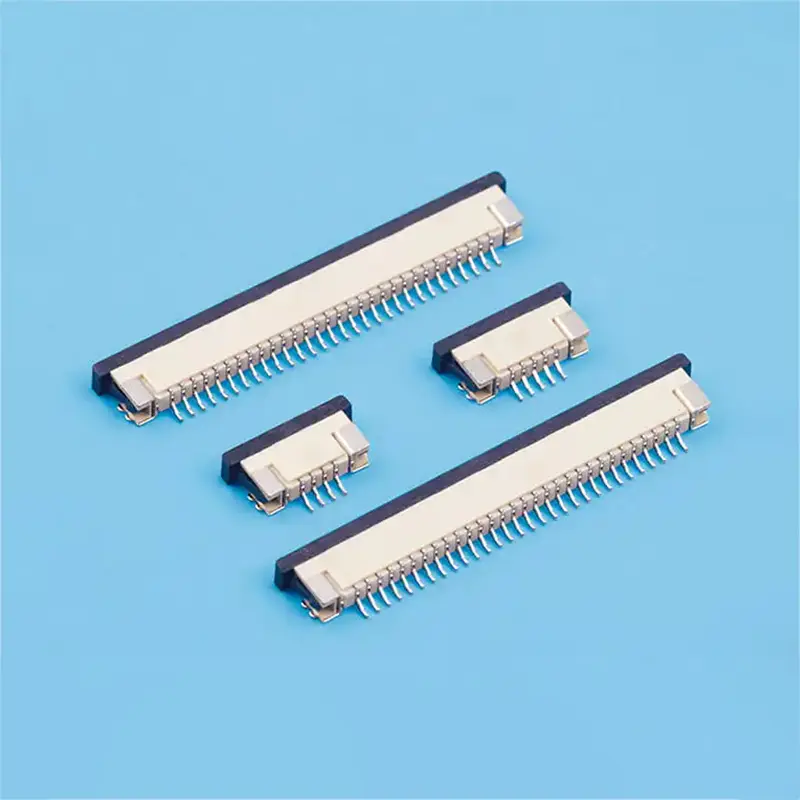

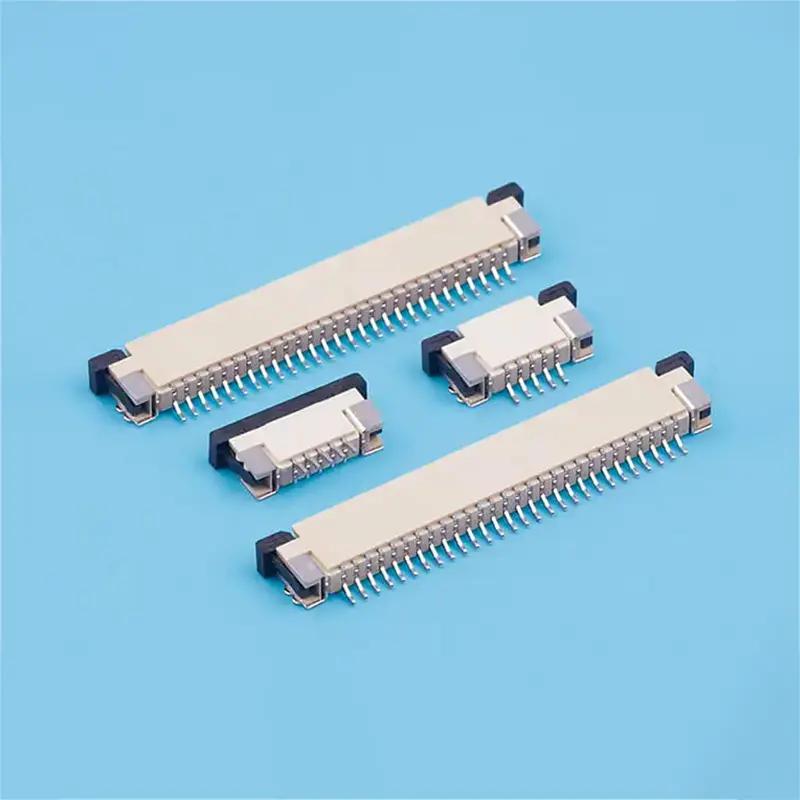

Wholesale FPC Connector FFC 1.0mm Pitch 2.5mm Height Horizontal SMT Push Pull Lock Socket Top Bottom Contact Connector 4p to 30p Suppliers, Factory

1.0mm pitch, 2.5mm height fpc flat connector, zif r/a upper contact, flexible printed circuit board connectors, durable, for signal transferï¼›1.0mm pitch 2.5mm height fpc flat flexible cable connector, zif r/a down contact, horizontal contact, locking type.

Send Inquiry

Product Description

⚙

Specifications

Model	Diagram	Specification
1.0mm Pitch ZIF R/A Type Upper Contact H=2.5		1. CKT: 4Pin to 40Pin 2. Current rating: 0.5A AC/DC 3. Voltage rating (max): 50V AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤30mΩ / After test ≤60mΩ 6. Insulation resistance: ≥500MΩ 7. Withstand voltage: 250VAC(rms) 8. PCB thickness: 1.6mm to 2.0mm
1.0mm Pitch ZIF R/A Type Down Contact H=2.5

📐

Mounting Measurement

Upper Contact H=2.5

Assembly Layout

Applicable Flat Cable

P.C.B Layout

Down Contact H=2.5

Assembly Layout

Applicable Flat Cable

P.C.B Layout

📝

Product Description

ZIF R/A Upper Contact Material: Housing: LCP UL 94V-0; Terminal: Phosphor bronze; Fitting: Brass.
Finish: Tin-plated & Gold-plated.

CKT	Part No	DIM A	DIM B
4	LW10251-04	3	5.03
5	LW10251-05	4	6.03
6	LW10251-06	5	7.03
10	LW10251-10	9	11.03
14	LW10251-14	13	15.03
40	LW10251-40	39	41.03

ZIF R/A Down Contact Material: Housing: LCP UL 94V-0; Terminal: Phosphor bronze; Fitting: Brass.
Finish: Tin-plated & Gold-plated.

CKT	Part No	DIM A	DIM B
4	LW10252-04	3	5.03
5	LW10252-05	4	6.03
6	LW10252-06	5	7.03
10	LW10252-10	9	11.03
14	LW10252-14	13	15.03
40	LW10252-40	39	41.03

Frequently Asked Questions

What is the pitch and orientation of these ZIF connectors?

These are 1.0mm pitch Zero Insertion Force (ZIF) Right Angle (R/A) type connectors, available in both upper and down contact configurations.

What are the electrical ratings for this series?

The connectors have a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.

What materials are used in the construction?

The housing is made of LCP UL 94V-0, with phosphor bronze terminals and brass fittings. Finish options include tin-plated or gold-plated.

What is the operating temperature range?

The working temperature range is -25°C to +85°C, which includes the temperature rise when applying electrical current.

What PCB thickness is compatible with these connectors?

These connectors are suitable for PCB board thicknesses ranging from 1.6mm to 2.0mm.

How many pins are available?

This series supports a circuit range from 4Pin up to 40Pin.
