Product Overview

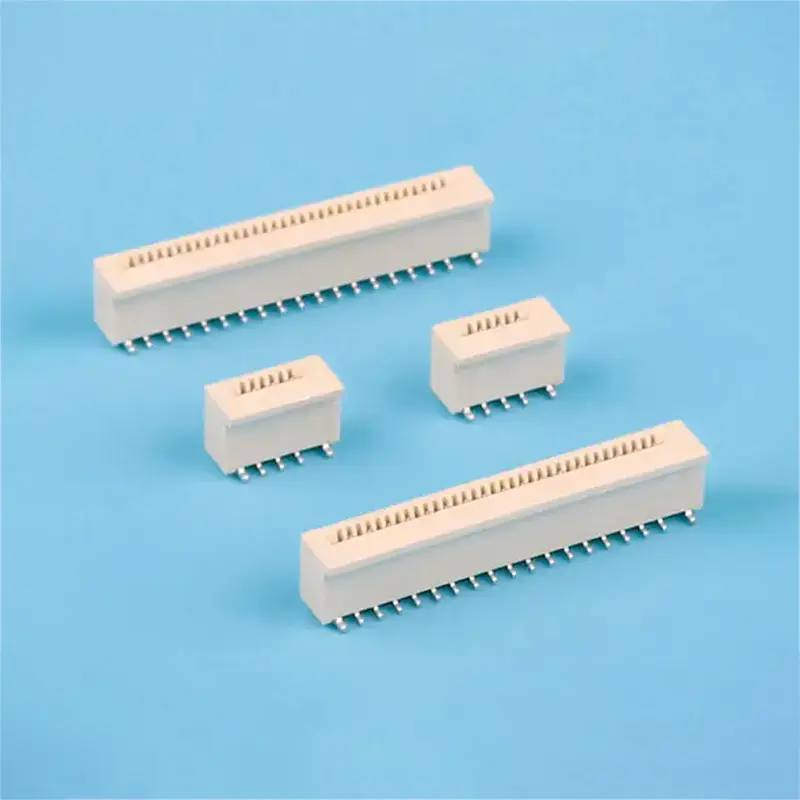

The connector features a 0.5mm pitch, representing the precision distance between adjacent pin centers. This fine-pitch engineering is essential for modern high-density electronic applications. Supporting configurations from 4 to 60 pins, it offers exceptional versatility for diverse circuit designs.
Electrically, this 0.5mm pitch Non-ZIF (Non-Zero Insertion Force) S/T positive pointer connector is rated for 0.5A AC/DC and handles up to 50V AC/DC. Designed for durability, it operates within a temperature range of -25°C to +85°C, ensuring reliable performance even under thermal stress caused by electrical current.
Material and Construction
Non-ZIF S/T Positive Pointer Construction:
Housing Material: LCP UL 94V-0 (High-temperature resistant)
Terminal Material: Phosphor Bronze
Fitting Material: Brass
Finish: High-quality Tin-plated & Gold-plated options
| CKT |
Part No |
DIM A (mm) |
DIM B (mm) |
| 4 | WL05403-04 | 1.5 | 2.6 |
| 5 | WL05403-05 | 2 | 3.1 |
| 10 | WL05403-10 | 4.5 | 5.6 |
| 14 | WL05403-14 | 6.5 | 7.6 |
| 60 | WL05403-60 | 29.5 | 30.6 |
Frequently Asked Questions (FAQ)
What is the specific pitch of this connector?
This connector features a precise 0.5mm pitch, designed for high-density electronic interconnections.
How many pins are available for this model?
We provide configurations ranging from 4 pins up to 60 pins to suit various circuit requirements.
What are the electrical ratings for the 0.5mm pitch connector?
The connector is rated for a current of 0.5A AC/DC and a maximum voltage of 50V AC/DC.
Can this connector withstand high-temperature environments?
Yes, it is designed to operate reliably within a temperature range of -25°C to +85°C.
What materials are used in the manufacturing of this connector?
The housing is made of LCP UL 94V-0, terminals are phosphor bronze, and fittings are brass with tin or gold plating.
What is the recommended PCB thickness for mounting?
This connector is compatible with PCB boards having a thickness between 1.6mm and 2.0mm.
