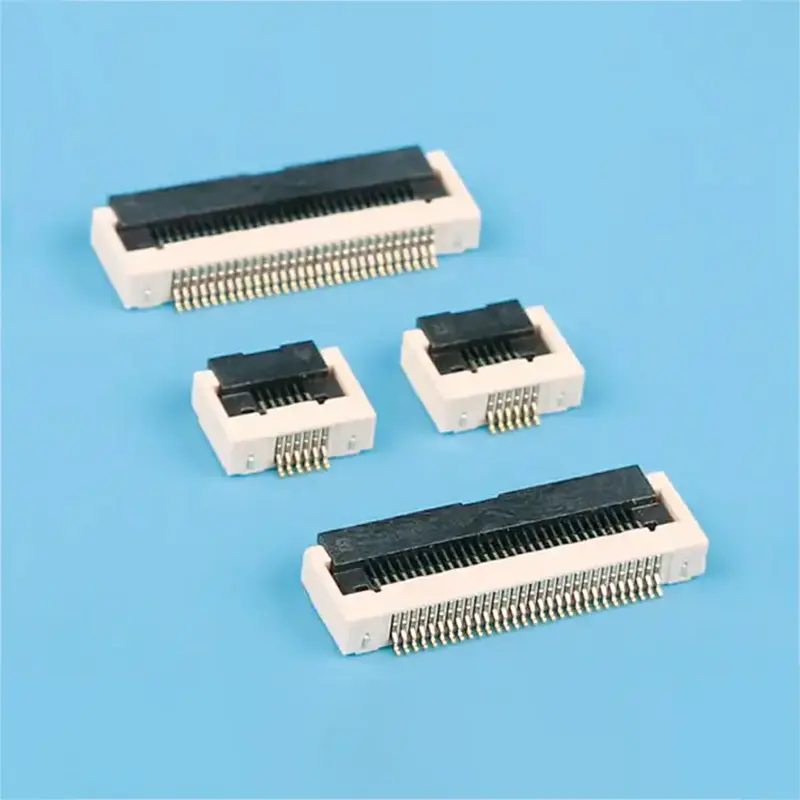

‌Gold-plated 0.5mm pitch 2.55mm height horizontal SMT FPC/FFC socket with butterfly latch and bottom entry

Send Inquiry

Product Description

📋 Product Specifications
Model Diagram Technical Specification
0.5mm Pitch Easy On Type H=2.55 with Buckle
  • CKT: 5Pin to 80Pin
  • Current rating: 0.5A AC/DC
  • Voltage rating(max): 50V, AC/DC
  • Working Temperature: -25°C~+85°C
  • Contact resistance: ≤50mΩ
  • Insulation resistance: 2500MΩ
  • Withstand voltage: 150VAC(rms)
  • Applicable PCB board thickness: 1.6mm to 2.0mm
0.5mm Pitch Easy On Type H=2.55 with Customized Butterfly Buckle
📐 Mounting Measurement & Layout
Model Type Assembly Layout Applicable Flat Cable P.C.B Layout
Standard Buckle
Butterfly Buckle
🛠️ Material and Finish

Housing: LCP UL94V-0

Terminal: Phosphor bronze

Fitting: Brass

Finish: Tin-plated & Gold-plated

Easy-on R/A With Buckle
Easy-on R/A Customized Butterfly buckle

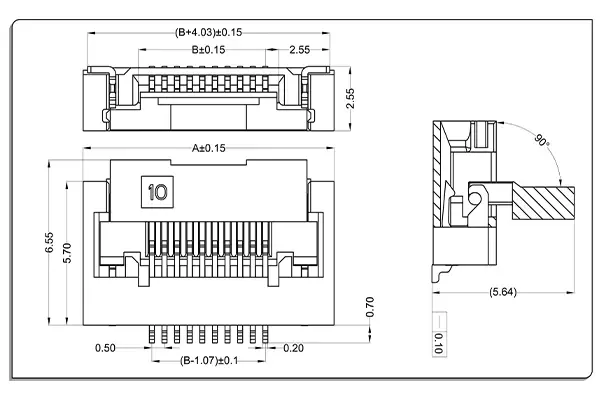

📏 Dimensions - Easy-on R/A With Buckle
CKT Part No DIM A DIM B
5XW05252-057.453.07
6XW05252-067.953.57
7XW05252-078.454.07
8XW05252-088.954.57
10XW05252-109.955.57
15XW05252-1512.458.07
80XW05252-8044.9540.57
❓ Frequently Asked Questions
1. What is the pitch and height of this FPC connector?
This is a 0.5mm pitch Easy On Type connector with a profile height of 2.55mm.
2. What are the available pin counts?
The connector is available in a wide range of circuits, from 5Pin up to 80Pin configurations.
3. What materials are used for the housing and terminals?
The housing is made of LCP (UL94V-0), the terminals are phosphor bronze, and the fittings are brass, featuring tin-plated or gold-plated finishes.
4. What is the operating temperature range?
The connector is designed to work efficiently within a temperature range of -25°C to +85°C.
5. What is the maximum current and voltage rating?
It supports a current rating of 0.5A AC/DC and a maximum voltage rating of 50V AC/DC.
6. What PCB thickness is recommended for this connector?
The recommended applicable PCB board thickness for installation is between 1.6mm and 2.0mm.
