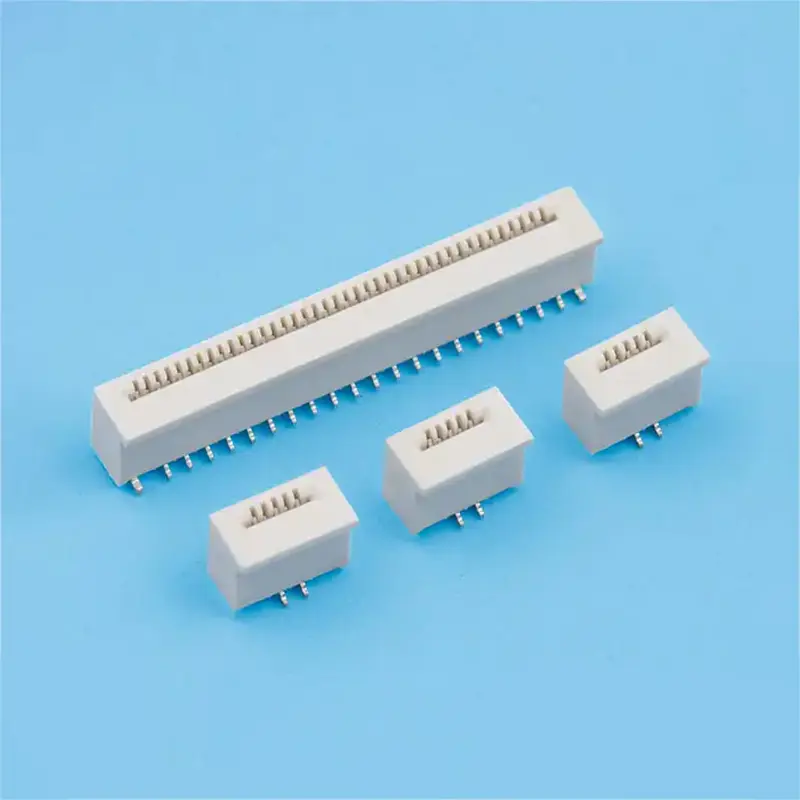

The 1.0-H5.5 Non-ZIF ST Reversed Pointer Connector Kit is a precision solution designed for flexible connections on printed circuit boards (PCBs). With a 0.5mm pitch and 4.0mm height, this connector kit is ideal for space-constrained applications. The Non-ZIF design allows for easy and reliable connections, while the reverse pointer configuration ensures proper alignment and secure engagement. This product is particularly suitable for a variety of electronic devices that require a rugged and efficient interconnect system.

Send Inquiry

Product Description

Technical Specifications

Diagram Electrical & Mechanical Requirements
Technical Diagram
✔ CKT Range: 4Pin to 60Pin
✔ Current Rating: 0.5A AC/DC
✔ Voltage Rating: 50V Max (AC/DC)
✔ Temperature Range: -25°C to +85°C
✔ Contact Resistance: Initial <30mΩ / After Test ≤60mΩ
✔ Insulation Resistance: ≥500MΩ
✔ Withstand Voltage: 250VAC (rms)
✔ PCB Thickness: 1.6mm to 2.0mm

Mounting Measurement & Layout

Assembly Layout

Assembly Layout

Applicable Flat Cable

Applicable Flat Cable

P.C.B Layout

P.C.B Layout

Detailed Product Description

Non-ZIF S/T Reversed Pointer

Material and Finish:

  • Housing: LCP UL 94V-0
  • Terminal: Phosphor Bronze
  • Fitting: Brass
  • Finish: Tin-plated & Gold-plated
Product Overview
CKT Part No DIM A (mm) DIM B (mm)
4WL05404-041.52.6
5WL05404-0523.1
6WL05404-062.53.6
7WL05404-0734.1
8WL05404-083.54.6
10WL05404-104.55.6
12WL05404-125.56.6
14WL05404-146.57.6
............
60WL05404-6029.530.6

Service and After-Sales

★
Customized Services: We provide professional customization for FPC flat connectors with 0.5mm pitch based on specific client requirements and technical specifications.
★
After-Sales Support: Our comprehensive service includes expert technical support, product warranty, and repair services to ensure reliable long-term performance.

Frequently Asked Questions

1. What is the pitch of this FPC connector?

This connector features a 0.5mm pitch, making it ideal for compact electronic applications.

2. What are the material specifications for the housing?

The housing is made from LCP (Liquid Crystal Polymer) with a UL 94V-0 flame retardant rating.

3. Does this connector support high-temperature environments?

Yes, it has a working temperature range of -25°C to +85°C, which includes the temperature rise during electrical current application.

4. What is the current and voltage rating?

The connector is rated for a current of 0.5A AC/DC and a maximum voltage of 50V AC/DC.

5. Can the number of circuits (CKT) be customized?

Yes, we offer a wide range of circuit options from 4Pin up to 60Pin to meet different design needs.

6. What type of plating is used on the terminals?

The terminals are made of phosphor bronze with options for both Tin-plated and Gold-plated finishes.
