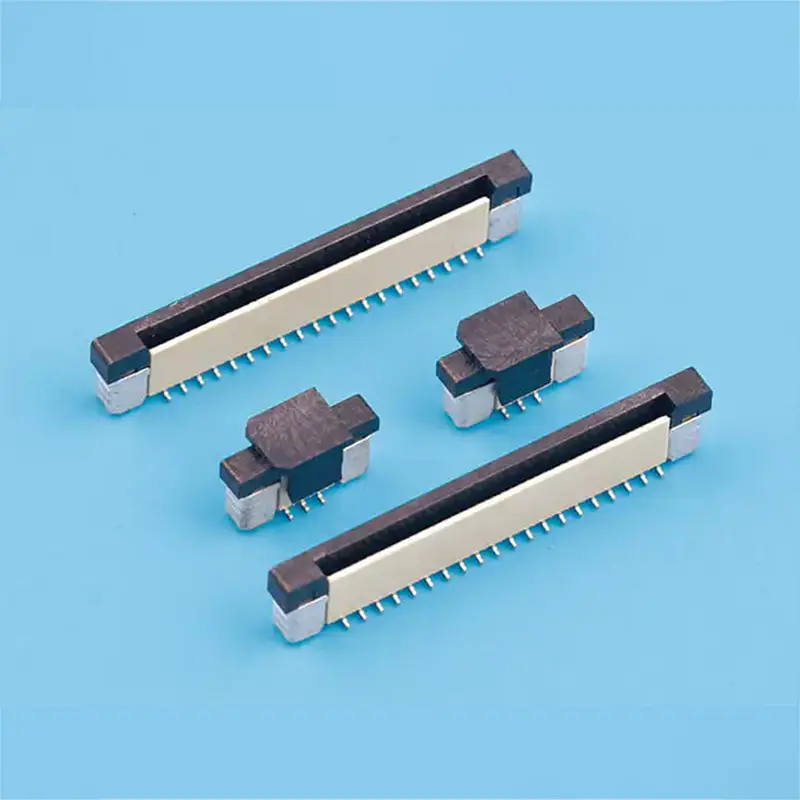

High-Quality FPC FFC Connector 0.5mm Pitch Reverse Standard Orientation 4.5mm Height Vertical SMT Staggered Contacts Flat Plug & Socket Suppliers, Factory

1 / 1

High-Quality FPC FFC Connector 0.5mm Pitch Reverse Standard Orientation 4.5mm Height Vertical SMT Staggered Contacts Flat Plug & Socket Suppliers, Factory

Designed to be compatible with a wide range of flat cable configurations, the 0.5mm Pitch ZIF RA Type H=4.5 connector is an ideal choice for engineers and designers seeking reliability and efficient electronic design. With its compact size and rugged specifications, the 0.5mm pitch ZIF RA H=4.5 connector is designed to meet the demands of modern electronic devices and ensure optimal performance in a variety of environments.

Send Inquiry

Product Description

Product Overview

The 0.5mm Pitch ZIF RA Type H=4.5 connector supports 4 to 60 pins, providing flexibility for different circuit designs. With a rated current of 0.5A AC/DC and a maximum rated voltage of 50V AC/DC, it is suitable for a wide range of applications from consumer electronics to industrial machinery. The connector is designed to operate over a temperature range of -25°C to +85°C, taking into account the temperature rise when power is applied.

Technical Specifications

Diagram	Specification Details
	1. CKT: 4Pin to 60Pin 2. Current rating: 0.5A AC/DC 3. Voltage rating(max): 50V, AC/DC 4. Working Temperature: -25°C ~ +85°C 5. Contact resistance: Initial ≤30mΩ / After environmental testing ≤50mΩ 6. Insulation resistance: ≥500MΩ 7. Withstand voltage: 500VAC(rms) 8. Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting & Layout Measurements

Assembly Layout

Applicable Flat Cable

P.C.B Layout

Product Description & Materials

ZIF S/T Positive pointer

Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Brass
Finish: Tin-plated & Gold-plated

Dimensions Reference

CKT (Pin)	Part No	DIM A	DIM B
4	LL05453-04	1.5	2.56
5	LL05453-05	2.0	3.06
6	LL05453-06	2.5	3.56
7	LL05453-07	3.0	4.06
8	LL05453-08	3.5	4.56
9	LL05453-09	4.0	5.06
10	LL05453-10	4.5	5.56
11	LL05453-11	5.0	6.06
12	LL05453-12	5.5	6.56
13	LL05453-13	6.0	7.06
14	LL05453-14	6.5	7.56
60	LL054532-60	29.5	30.56

Frequently Asked Questions

Q1: What is the pitch and height of this ZIF connector? A: This connector features a 0.5mm pitch and a right-angle (RA) height of 4.5mm.

Q2: What is the maximum current and voltage rating? A: The current rating is 0.5A AC/DC, and the maximum voltage rating is 50V AC/DC.

Q3: What pin counts are available for this series? A: The series supports a wide range of pin counts from 4 pins up to 60 pins to fit various circuit requirements.

Q4: What are the materials used for construction? A: It is constructed with an LCP UL 94V-0 housing, phosphor bronze terminals, and brass fittings, available in tin-plated or gold-plated finishes.

Q5: What is the operating temperature range? A: The working temperature range is -25°C to +85°C, including the temperature rise during electrical current application.

Q6: What PCB thickness is recommended for installation? A: This connector is designed to be compatible with PCB boards having a thickness between 1.6mm and 2.0mm.
