1.0mm pitch 2.9mm height flat flexible cable fpc connector, non-zif r/a double-side contact, flat ribbon connectors, durable interface;1.0mm pitch 4.5mm height vertical fpc flat connector, non-zif s/t double-side contact, flexible printed circuit board connector, high-density interface interconnect.

Send Inquiry

Product Description

Specifications

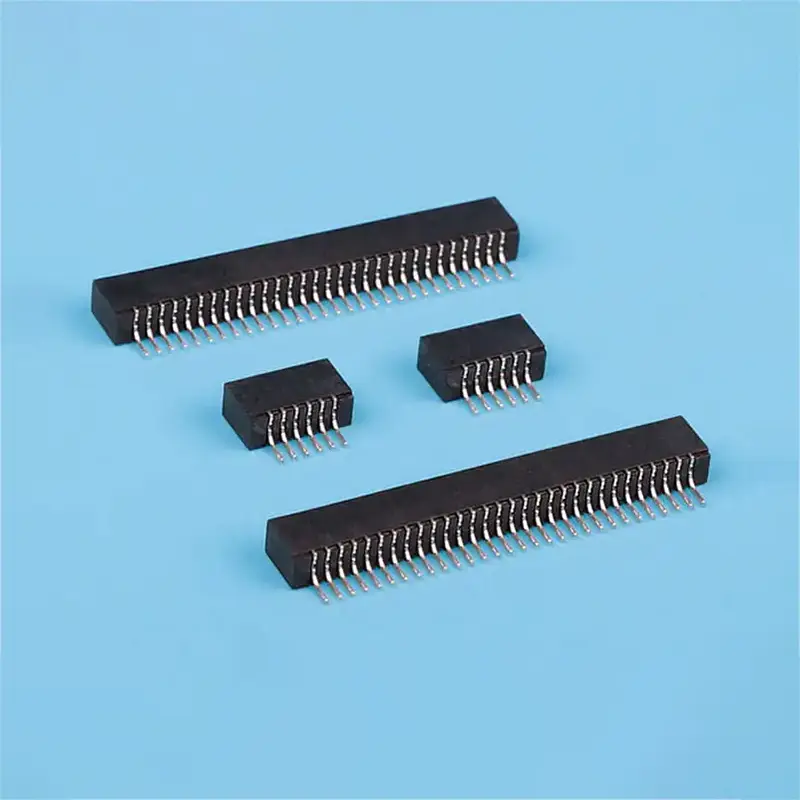

1.0mm Pitch Non-ZIF R/A Double-side Contact H=2.9
1.0mm Pitch Non-ZIF R/A Double-side Contact H=2.9 Diagram

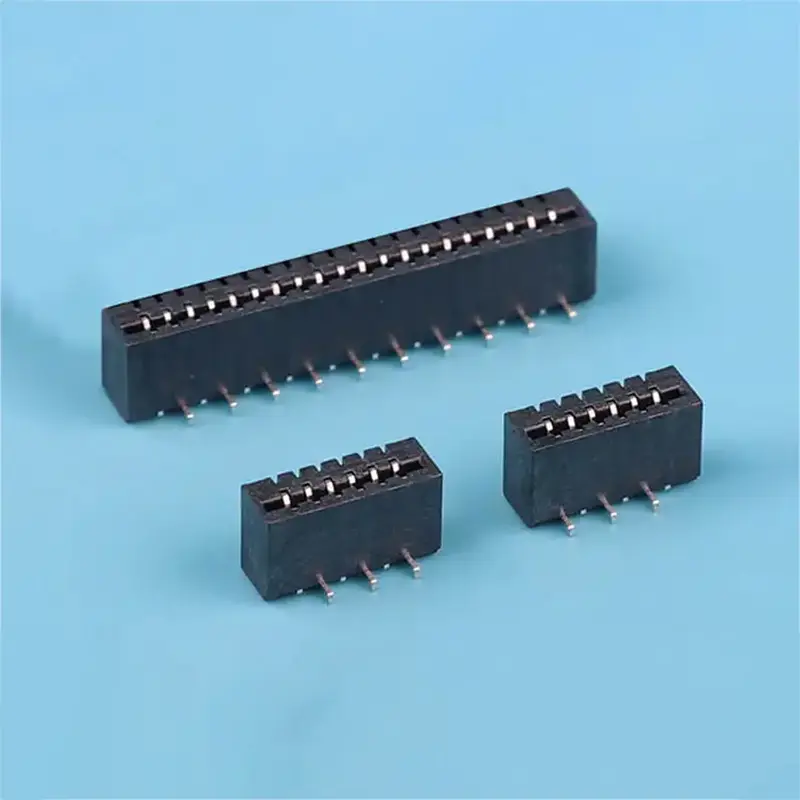

1.0mm Pitch Non-ZIF S/T Double-side Contact H=4.5
1.0mm Pitch Non-ZIF S/T Double-side Contact H=4.5 Diagram

Technical Features

  • CKT Range: 4Pin to 30Pin
  • Current Rating: 0.5A AC/DC
  • Voltage Rating (Max): 50V AC/DC
  • Working Temperature: -25°C to +85°C (including temperature rise when electrical current is applied)
  • Contact Resistance: Initial value ≤ 30mΩ; After environmental testing ≤ 60mΩ
  • Insulation Resistance: ≥ 500MΩ
  • Withstand Voltage: 500VAC (rms)
  • Applicable PCB Thickness: 1.6mm to 2.0mm

Mounting Measurement

1.0mm Pitch Non-ZIF R/A Double-side Contact H=2.9

Assembly Layout
Assembly Layout H=2.9
Applicable Flat Cable
Applicable Flat Cable H=2.9
P.C.B Layout
P.C.B Layout H=2.9

1.0mm Pitch Non-ZIF S/T Double-side Contact H=4.5

Assembly Layout
Assembly Layout H=4.5
Applicable Flat Cable
Applicable Flat Cable H=4.5
P.C.B Layout
P.C.B Layout H=4.5

Product Description

Non-ZIF R/A Double-sided contact

Material and Finish: Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Finish: Tin-plated & Gold-plated
Non-ZIF R/A Double-sided contact Product Image
CKT Part No DIM A DIM B
4WW10290-0435.05
5WW10290-0546.05
6WW10290-0657.05
7WW10290-0768.05
8WW10290-0879.05
9WW10290-09810.05
10WW10290-10911.05
11WW10290-111012.05
12WW10290-121113.05
13WW10290-131214.05
14WW10290-141315.05
----
30WW10290-302931.05

Non-ZIF S/T Positive pointer

Material and Finish: Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Finish: Tin-plated & Gold-plated
Non-ZIF S/T Positive pointer Product Image
CKT Part No DIM A DIM B
4WL10453-0435.05
5WL10453-0546.05
6WL10453-0657.05
7WL10453-0768.05
8WL10453-0879.05
9WL10453-09810.05
10WL10453-10911.05
11WL10453-111012.05
12WL10453-121113.05
13WL10453-131214.05
14WL10453-141315.05
----
30WL10453-302931.05

Frequently Asked Questions (FAQ)

What is the pitch size of these Non-ZIF connectors?
These connectors feature a standard 1.0mm pitch, making them ideal for compact and high-density electronic applications.
What circuit (pin) configurations are available?
We offer a wide range of circuit configurations, ranging from 4Pin up to 30Pin to meet diverse design requirements.
What materials are used for the housing and terminals?
The housing is constructed from high-temperature LCP (UL 94V-0 rated) plastic, and the terminals are made of high-quality phosphor bronze with both Tin-plated and Gold-plated finish options.
What is the operating temperature range for these connectors?
The working temperature range is -25°C to +85°C, which includes the temperature rise that occurs when applying electrical current.
What are the electrical ratings of these 1.0mm pitch connectors?
They have a current rating of 0.5A AC/DC, a maximum voltage rating of 50V AC/DC, and can withstand a voltage of up to 500VAC (rms).
What is the recommended PCB thickness for installation?
These connectors are designed to be compatible with applicable PCB board thicknesses ranging from 1.6mm to 2.0mm.
