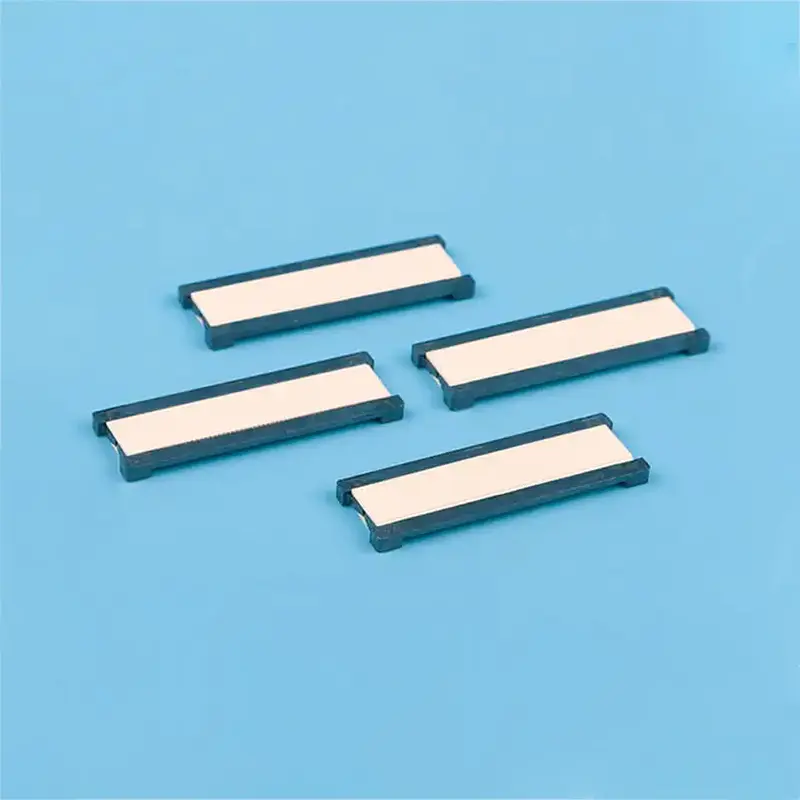

High-Quality FFC FPC Adapter Extension Board 0.5mm Pitch Double-Sided Drawer Type 2.0mm Height Mid-Mount Connector 24/30 Pin Ribbon Cable Manufacturer, Factories
1 / 1
High-Quality FFC FPC Adapter Extension Board 0.5mm Pitch Double-Sided Drawer Type 2.0mm Height Mid-Mount Connector 24/30 Pin Ribbon Cable Manufacturer, Factories

High-Quality FFC FPC Adapter Extension Board 0.5mm Pitch Double-Sided Drawer Type 2.0mm Height Mid-Mount Connector 24/30 Pin Ribbon Cable Manufacturer, Factories

The 0.5mm Pitch ZIF Double Side connector is a highly specialized component designed for efficient and reliable electrical connections in a variety of electronic applications. The connector features a compact design with a pitch of only 0.5mm, making it ideal for high-density circuit boards with limited space. The connector configuration ranges from 4Pin to 60Pin, with diverse functions and compatibility with a variety of devices, ensuring seamless connectivity in consumer electronics and industrial applications.

Send Inquiry

Product Description

Product Overview

The 0.5mm Pitch ZIF Double Side connector is rated at 0.5A for both AC and DC applications. This current rating represents the maximum current that the connector can safely withstand in the event of overheating or damage.

The 0.5mm Pitch ZIF Double Side connector has excellent contact resistance values. The initial contact resistance rating is ≤30mΩ, ensuring minimal energy loss during operation. After environmental testing, the contact resistance remained within the acceptable range of ≤60mΩ; providing adaptability to external factors such as humidity and temperature changes. The insulation resistance rating of this connector is ≥500MΩ, which is critical to preventing leakage and ensuring the safety of connected equipment.

Technical Specifications

Technical Diagram
  • CKT: 4Pin to 60Pin
  • Current Rating: 0.5A AC/DC
  • Voltage Rating: 50V AC/DC (Max)
  • Working Temperature: -25°C to +85°C
  • Contact Resistance: Initial ≤30mΩ / After Test ≤60mΩ
  • Insulation Resistance: ≥500MΩ
  • Withstand Voltage: 250VAC (rms)

Mounting & Assembly

Assembly Layout

Assembly Layout

Applicable Flat Cable

Flat Cable Specification

Material & Dimensions

Double-Side Drawing Construction

Material Finish: Housing made of LCP UL 94V-0. Terminal utilizes phosphor bronze with high-quality Tin-plated and Gold-plated finishing options.

Product Drawing Description
CKT Part No DIM A (mm) DIM B (mm)
4SL05200-041.52.56
5SL05200-0523.06
6SL05200-062.53.56
7SL05200-0734.06
8SL05200-083.54.56
............
60SL05200-6029.530.56
10SL05250-104.52.56
11SL05250-1153.06
12SL05250-125.53.56
60SL05250-6029.530.56

Frequently Asked Questions

1. What is the current rating for this 0.5mm Pitch ZIF connector? The connector is rated at 0.5A for both AC and DC applications.
2. How does environmental exposure affect contact resistance? The initial contact resistance is ≤30mΩ, and after environmental testing, it remains stable at ≤60mΩ.
3. What are the primary materials used in construction? The housing is made of heat-resistant LCP (UL 94V-0), and the terminals are phosphor bronze with tin or gold plating.
4. What is the operating temperature range? It operates effectively between -25°C and +85°C, including the temperature rise during electrical current application.
5. What pin counts (CKT) are available for this series? This series supports a wide range of configurations from 4Pin up to 60Pin.
6. What is the insulation safety rating? It features an insulation resistance of ≥500MΩ and can withstand a voltage of 250VAC (rms).
