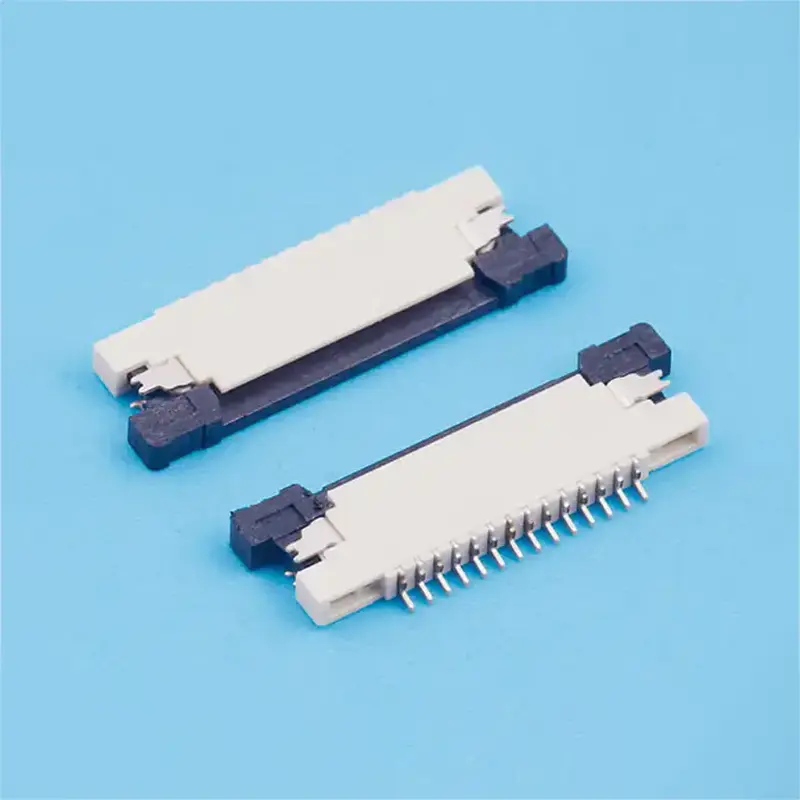

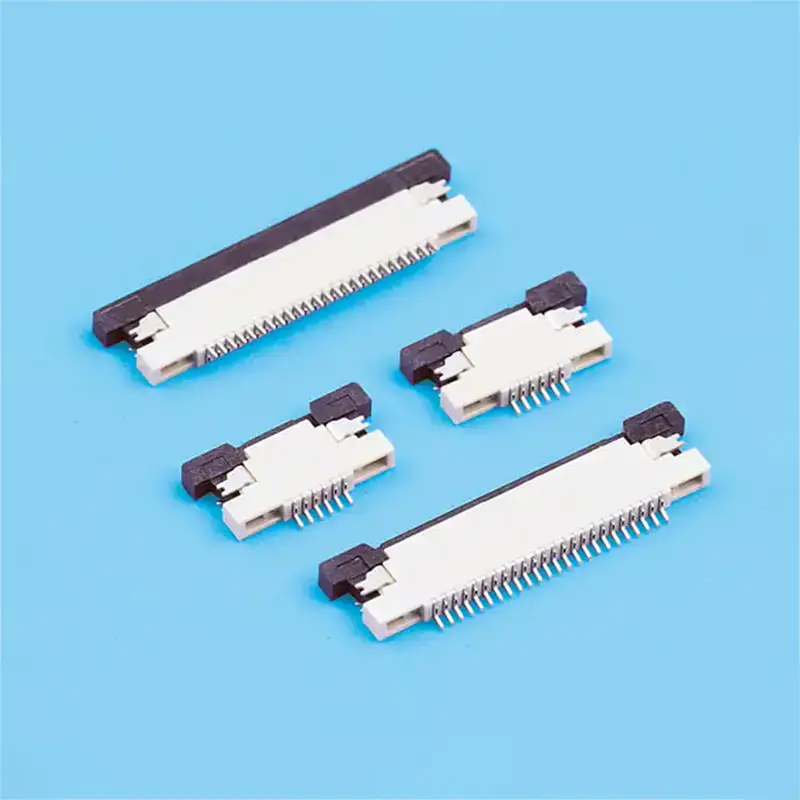

China ‌FPC/FFC 0.62mm Pitch 14P 1.2H Pull-Up Horizontal SMT Top-Contact OLED Flat Cable Connector Manufacturer, Manufacturers
China ‌FPC/FFC 0.62mm Pitch 14P 1.2H Pull-Up Horizontal SMT Top-Contact OLED Flat Cable Connector Manufacturer, Manufacturers
1 / 2
China ‌FPC/FFC 0.62mm Pitch 14P 1.2H Pull-Up Horizontal SMT Top-Contact OLED Flat Cable Connector Manufacturer, Manufacturers
China ‌FPC/FFC 0.62mm Pitch 14P 1.2H Pull-Up Horizontal SMT Top-Contact OLED Flat Cable Connector Manufacturer, Manufacturers

China ‌FPC/FFC 0.62mm Pitch 14P 1.2H Pull-Up Horizontal SMT Top-Contact OLED Flat Cable Connector Manufacturer, Manufacturers

The 0.62mm pitch ZIF R/A-type upper contact and 0.7mm pitch ZIF R/A-type upper contact connectors are essential components for high-density interconnects. Designed to facilitate seamless connections in flexible printed circuits (FPCs), these connectors provide reliable solutions for a variety of applications. With a height of 1.2mm, both connectors are designed to meet the needs of modern electronic devices, saving valuable space while ensuring efficient performance.

Send Inquiry

Product Description

Product Overview

The 0.62mm pitch connector is designed for flexible printed circuit applications, and its surface mount structure enhances its usability in compact designs. The connector supports 0.5A AC/DC rated current and 50V AC/DC maximum rated voltage, suitable for a variety of electronic devices. The operating temperature range of -25°C to +85°C ensures that the connector can work effectively under various environmental conditions, including the temperature rise generated when power is applied. The initial contact resistance of the connector is less than 30mΩ, and the maximum resistance after environmental testing is 50mΩ, ensuring reliable electrical performance.

Likewise, the 0.7mm pitch connector is designed for flat flexible cable applications and features a PCB mount design that simplifies installation and improves reliability. The connector also supports a 0.5A AC/DC rated current and a 50V AC/DC maximum rated voltage, making it a versatile choice for a variety of electronic applications. The 1.2mm height makes it space-saving, especially beneficial for applications with limited PCB space. An operating temperature range of -25°C to +85°C and a strong contact resistance specification ensure that the connector can withstand the rigors of daily use.

Specifications

Model Diagram Technical Specification
0.62mm Pitch ZIF R/A Type Upper Contact H=1.2 0.62mm Pitch Diagram
CKT: 14Pin 		1. Current rating: 0.5A AC/DC
2. Voltage rating(max): 50V AC/DC
3. Working Temperature: -25°C~+85°C (Including temperature rise)
4. Contact resistance: Initial <30mΩ; Post-test ≤50mΩ
5. Insulation resistance: ≥500MΩ
6. Withstand voltage: 500VAC(rms)
7. Applicable PCB thickness: 1.6mm to 2.0mm
0.7mm Pitch ZIF R/A Type Upper Contact H=1.2 0.7mm Pitch Diagram
CKT: 13Pin

Mounting Measurement

Model Assembly Layout Applicable Flat Cable P.C.B Layout
0.62mm Pitch ZIF R/A Type 0.62mm Assembly 0.62mm Cable 0.62mm PCB
0.7mm Pitch ZIF R/A Type 0.7mm Assembly 0.7mm Cable 0.7mm PCB

Product Description

0.62mm Pitch ZIF R/A Type Upper Contact H=1.2

Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated

0.62mm Product Detail

0.7mm Pitch ZIF R/A Type Upper Contact H=1.2

Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated

0.7mm Product Detail

Frequently Asked Questions

Q1: What are the primary applications for these pitch connectors?
These connectors are specifically designed for Flexible Printed Circuit (FPC) and Flat Flexible Cable (FFC) applications, common in compact electronic devices.
Q2: What is the maximum current and voltage these connectors can handle?
Both the 0.62mm and 0.7mm pitch models support a maximum rated current of 0.5A AC/DC and a maximum rated voltage of 50V AC/DC.
Q3: What materials are used in the construction of these connectors?
The housing is made from LCP UL 94V-0. Both the terminals and fittings are constructed from phosphor bronze with tin-plated and gold-plated finishes.
Q4: Can these connectors operate in high-temperature environments?
Yes, they have an operating temperature range of -25°C to +85°C, which includes the temperature rise during electrical current application.
Q5: What is the height and mounting style of the 0.7mm pitch model?
The 0.7mm pitch model features a low profile height of 1.2mm and utilizes a PCB mount design to save space and ensure reliability.
Q6: What are the contact resistance specifications?
The initial contact resistance is less than 30mΩ, and it remains reliable with a maximum resistance of 50mΩ after environmental testing.
