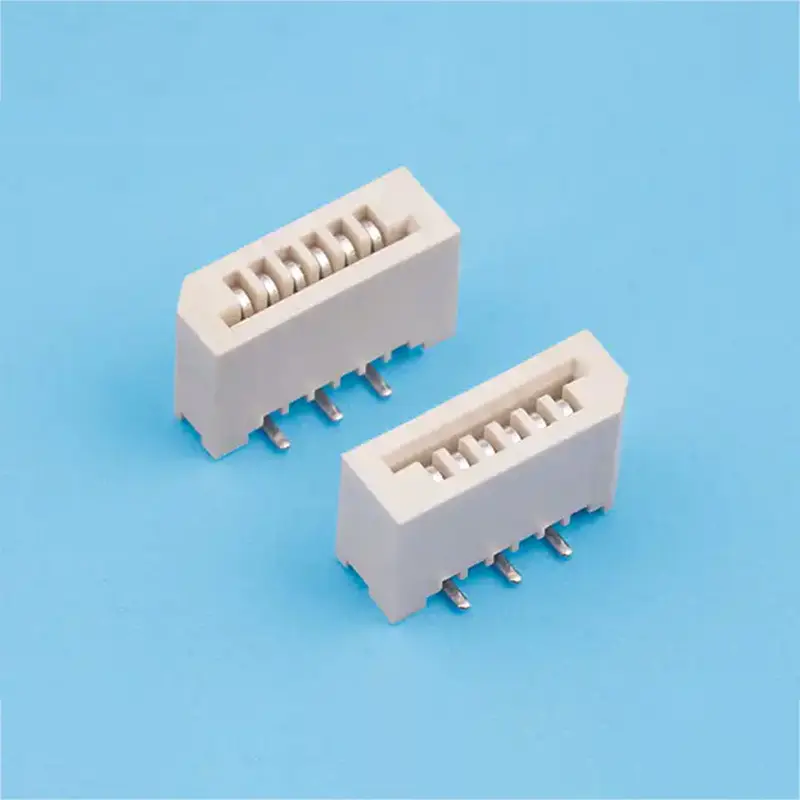

1.0mm pitch 5.5mm height vertical smt fpc connector, non-zif s/t positive pointer, flat flexible cable socket, reliable contact, durable housing;1.0mm pitch 5.5mm height, vertical fpc flat ribbon connector, non-zif s/t reversed pointer, easy-insertion, pcb mount, high-durability.

Send Inquiry

Product Description

Specifications

Model Diagram Specification
1.0mm Pitch Non-ZIF S/T Positive Pointer H=5.5 1. CKT: 4Pin to 30Pin
2. Current rating: 0.5A AC/DC
3. Voltage rating(max): 50V, AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: ≤55mΩ
6. Insulation resistance: ≥500MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable PCB board thickness: 1.6mm to 2.0mm
1.0mm Pitch Non-ZIF S/T Reversed Pointer H=5.5 Same specifications as Positive Pointer model.

Mounting Measurement

Model Assembly Layout Applicable Flat Cable P.C.B Layout
1.0mm Pitch Non-ZIF S/T Positive Pointer H=5.5
1.0mm Pitch Non-ZIF S/T Reversed Pointer H=5.5

Product Description

Non-ZIF S/T Positive pointer
Non-ZlF S/T Reversed pointer

Non-ZIF S/T Positive/Reversed pointer

Material and Finish: Housing: LCP UL 94V-0; Terminal: phosphor bronze; Finish: Tin-plated & Gold-plated.

CKT Part No DIM A DIM B
4WL 10553-0437.8
10WL 10553-10913.8
30WL 10553-302933.8

Frequently Asked Questions (FAQ)

Q1: What is the operating temperature range for these connectors? A: These connectors are designed to operate efficiently within a temperature range of -25°C to +85°C.
Q2: What is the applicable PCB thickness for this series? A: The connectors are compatible with PCB boards having a thickness between 1.6mm and 2.0mm.
Q3: Are these connectors available in both Positive and Reversed pointer types? A: Yes, we provide both Non-ZIF S/T Positive Pointer and Reversed Pointer configurations to meet different assembly needs.
Q4: What materials are used for the housing and terminals? A: The housing is made of LCP UL 94V-0, and the terminals are constructed from phosphor bronze with tin or gold plating options.
Q5: What is the maximum voltage rating for this connector series? A: The maximum voltage rating for these connectors is 50V (AC/DC).
