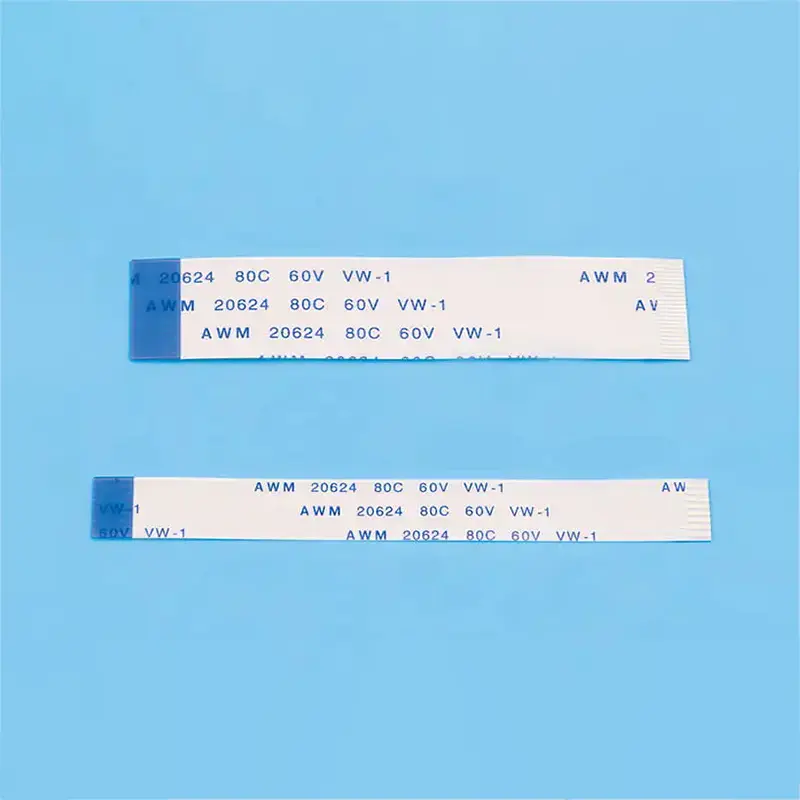

High-quality flexible flat cable - ffc ribbon cable, standard pitch, multiple pin counts, reliable data connection, durable flat ribbon conductors.FFC cable is made of flexible materials and has good bending performance. It can freely bend in a narrow space and adapt to various complex installation environments.FFC cable is designed with connectors at both ends, which can be directly inserted into devices without additional soldering or crimping processes, greatly simplifying the installation process.

Send Inquiry

Product Description

Product Description
Product Specification Diagram
Technical Dimensions
DIMENSION SPECIFICATIONS
NO of conductorsN
PitchP
SpanSP
WidthW
MarginM
Total lengthTL
Insulator lengthL
Insert ThicknessT
Surface ThicknessST
Strip LengthS1 / S2
Supporting Tape lengthB1 / B2
Dimensional Diagram & Model Data
Model Diagram Type A
Model Diagram Type B
CKT Part No SP (Span) W (Width) TL (Total Length)
4A0.5*04*601.52.560
5A0.5*05*602360
6A0.5*06*602.53.560
7A0.5*07*603460
8A0.5*08*603.54.560
10A0.5*10*604.55.560
12A0.5*12*1005.56.5100
CKT Part No SP (Span) W (Width) TL (Total Length)
4B0.5*04*601.52.560
6B0.5*06*602.53.560
8B0.5*08*603.54.560
10B0.5*10*604.55.560
13B0.5*13*10067100
FAQ
What does the "CKT" value represent in the tables?
CKT refers to the circuit count or the number of conductors available in the specific cable model.
How is the Total Width (W) of the cable calculated?
The total width is determined by the span of the conductors plus the required margin (M) on both sides of the insulation.
What is the difference between Pitch (P) and Span (SP)?
Pitch is the center-to-center distance between adjacent conductors, while Span is the distance from the center of the first conductor to the center of the last conductor.
What are the common values for TL (Total Length)?
Standard total lengths shown in our data include 60mm and 100mm, though these can vary based on the specific part number selected.
What is the function of the Supporting Tape (B1/B2)?
The supporting tape provides mechanical reinforcement at the connection ends to ensure a secure fit and durability within the connector socket.
Can I find different conductor configurations for these connectors?
Yes, our dimensional diagrams cover configurations ranging from 4 pins (CKT) up to 13 pins and beyond, depending on the series.
