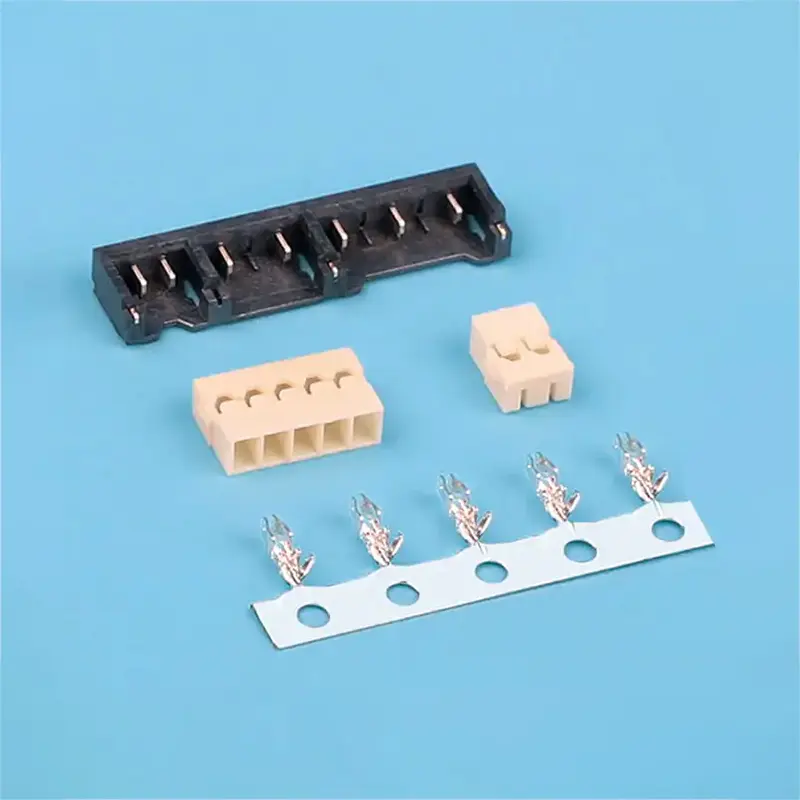

High-Quality 1.5A Type Li-ion Battery 10 Pin Horizontal SMT Socket Connector 1.5mm Pitch 2P 3P 5P Combo Right Angle Connector Suppliers, Factory
1 / 1
High-Quality 1.5A Type Li-ion Battery 10 Pin Horizontal SMT Socket Connector 1.5mm Pitch 2P 3P 5P Combo Right Angle Connector Suppliers, Factory

High-Quality 1.5A Type Li-ion Battery 10 Pin Horizontal SMT Socket Connector 1.5mm Pitch 2P 3P 5P Combo Right Angle Connector Suppliers, Factory

Battery products are an indispensable part of modern life, providing stable power sources for various electronic devices. Battery products have a wide range of applications, including household appliances, communication equipment, medical devices, military equipment, etc. Precision 1.5mm pitch battery holder connector with pcb mounting design, durable plastic housing, universal compatibility, easy-to-install.

Send Inquiry

Product Description

Specifications
Diagram Specification
Diagram
 1. CKT: 2Pin to 16Pin
2. Current rating: 1A AC/DC
3. Voltage rating(max): 100V, AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: Initial ≤20mΩ; After test ≤40mΩ
6. Insulation resistance: ≥500MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable wire: AWG #30 to #26
9. Applicable PCB board thickness: 1.6mm to 2.0mm
Mounting Measurement
Right Angle
P.C.B Layout
Product Parameter

Terminal: T=0.15mm

Terminal
Part No. Wire Range Insulation O.D Material Finish
DCT150A0-T0 AWG#30~ #26 1.10mm MAX phosphor bronze Tin & Gold-plated
Product Description

Housing Material: Nylon 66 UL 94V-0

Housing
CKTPart NoDIM ADIM B
2DCT150A0-021.53.22
3DCT150A0-0334.72
4DCT150A0-044.56.22
5DCT150A0-0567.72
6DCT150A0-067.59.22
7DCT150A0-07910.72
8DCT150A0-0810.512.22
9DCT150A0-091213.72
10DCT150A0-1013.515.22
16DCT150A0-1622.524.22

Wafer Material and Finish: Housing: LCP UL 94V-0; Terminal: Brass; Fitting: Brass; Finish: Tin-plated & Gold-plated

Wafer
Frequently Asked Questions
1. What is the current rating for this connector?
The connector has a current rating of 1A AC/DC.
2. What wire sizes are compatible with this product?
This connector is compatible with wire sizes ranging from AWG #30 to #26.
3. What is the operating temperature range?
The operating temperature range is -25°C to +85°C (including temperature rise).
4. What materials are used for the housing?
The housing is manufactured from Nylon 66 (UL 94V-0) for the main connector and LCP (UL 94V-0) for the wafer.
5. What is the required PCB board thickness for installation?
The connector is designed for PCB boards with a thickness of 1.6mm to 2.0mm.
