China XHB HA 2.54 Male Connector Housing 2.54mm Pitch Wire to Board Plug with Terminals Straight Right Angle (Vertical Horizontal Mount) Manufacturer, Manufacturers

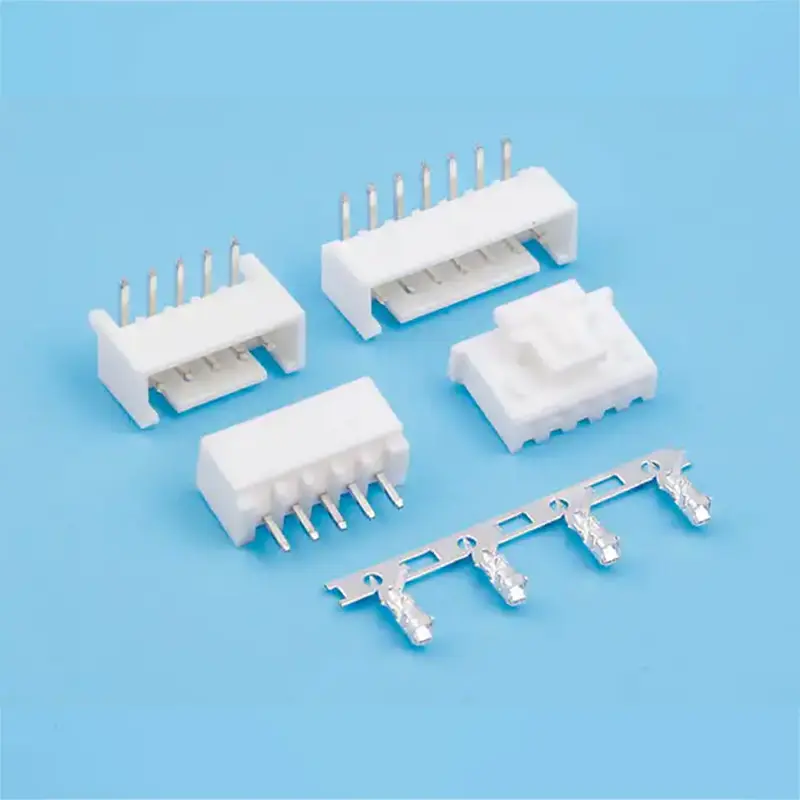

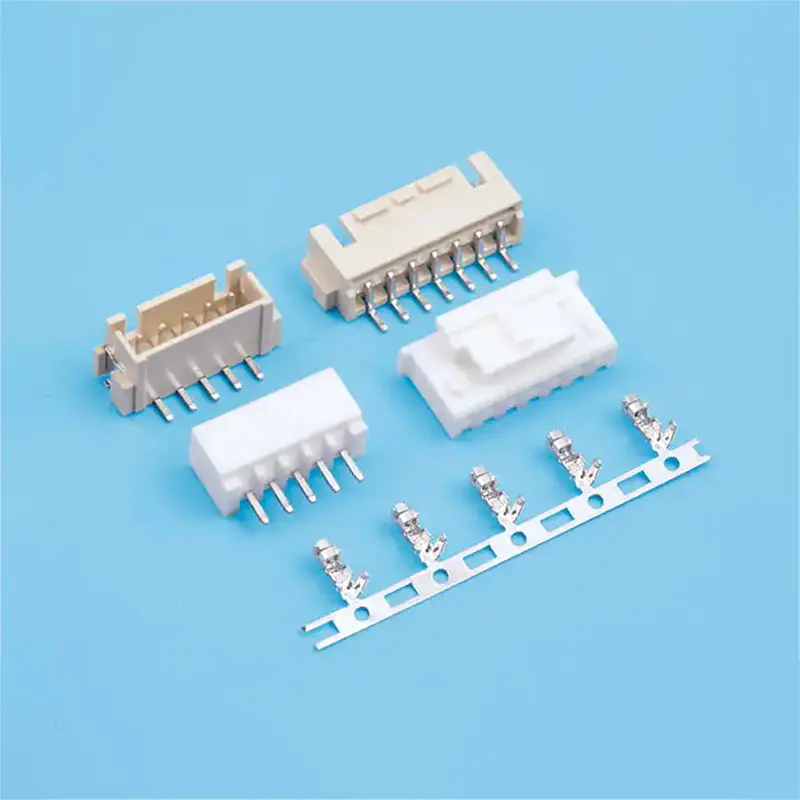

2.5mm pitch wire-to-board strip connector, vertical/horizontal pcb mount, electronic componentsï¼›2.5mm pitch connector, pcb board-to-board interconnect strip, wire-to-board vertical/horizontal plug set.

Send Inquiry

Product Description

✓

Specifications

Model	Diagram	Specification
2.5-K Type(XHB) Wire-to-Board Strip Connector		1. CKT: 2Pin to 16Pin 2. Current rating: 3A AC/DC 3. Voltage rating(max): 250V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 1000VAC(rms) 8. Applicable wire: AWG #28 to #22 9. Applicable PCB board thickness: 1.6mm to 2.0mm
2.5-K Type(XHB) Wire-to-Board Strip Connector 2

⚙

Mounting Measurement

Type	Straight Angle	Right Angle
2.5-K Type(XHB)
2.5-K Type(XHB) 2

📊

Product Parameter

Terminal: T=0.2mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WT250M0-T0	AWG#28~ #22	1.90mm MAX	Phosphor Bronze	Tin & Gold-plated

Product Description

2.5-K Type(XHB).1 Housing
Material: Nylon 66 UL94V-0

CKT	Part No	DIM A	DIM B
2	WT250K0-02	2.5	7.5
3	WT250K0-03	5	10
4	WT250K0-04	7.5	12.5
12	WT250K0-12	27.5	32.5
16	WT250K0-16	37.5	42.5

Wafer (LCP)
Material: Housing: LCP UL 94V-0; Terminal: Brass; Fitting: Brass
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT250KL-02	2.5	7.5
6	WT250KL-06	12.5	17.5
16	WT250KL-16	37.5	42.5

2.5-K Type(XHB).2 Housing
Material: Nylon 66 UL94V-0

Frequently Asked Questions

Q1: What is the current and voltage rating for the 2.5-K Type connector? A: The current rating is 3A AC/DC and the maximum voltage rating is 250V AC/DC.

Q2: What temperature range can these connectors withstand? A: They are designed to operate in temperatures ranging from -25°C to +85°C.

Q3: What wire gauges are compatible with the WT250M0-T0 terminal? A: The applicable wire range is AWG #28 to #22.

Q4: What are the primary materials used in the housing and terminals? A: The housing is typically made of Nylon 66 or LCP (UL94V-0), and terminals are made of Phosphor Bronze or Brass with Tin/Gold plating.

Q5: How many circuits (pins) are available for this series? A: The 2.5-K Type series is available from 2 pins up to 16 pins.

Q6: What is the recommended PCB thickness for mounting? A: The applicable PCB board thickness is between 1.6mm and 2.0mm.
