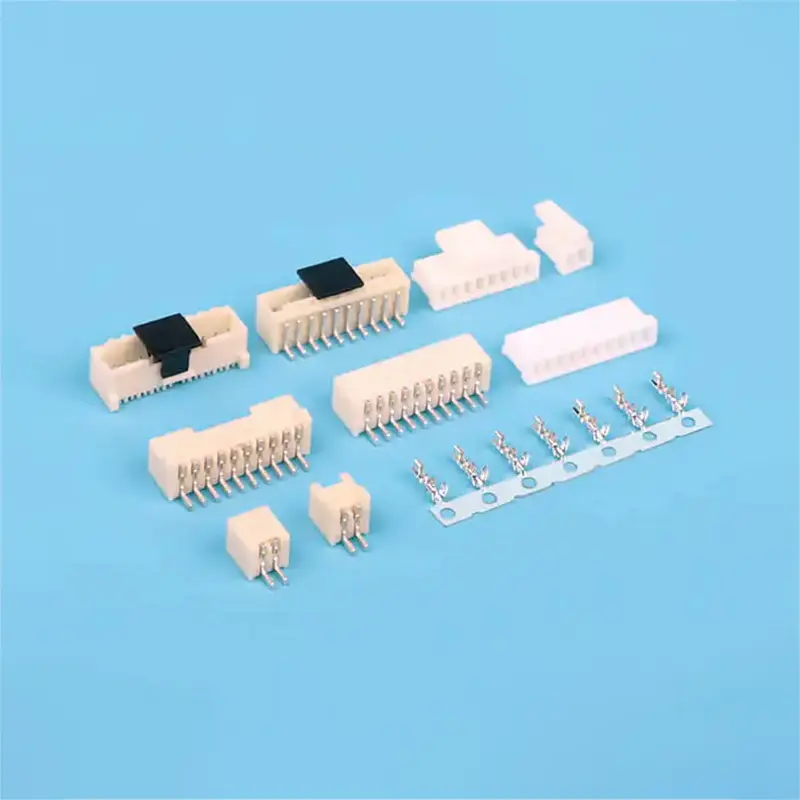

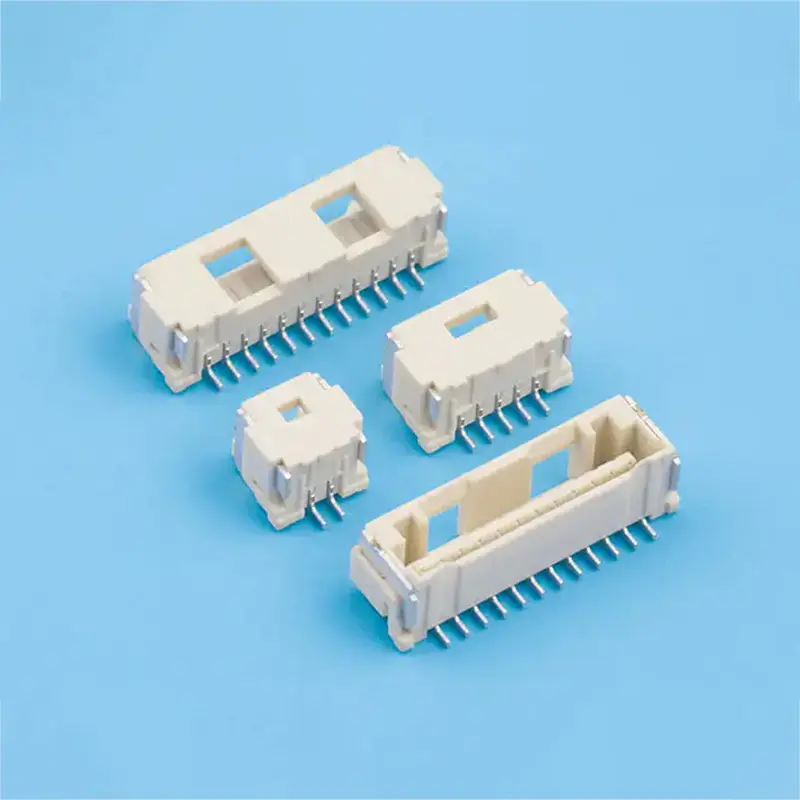

1.5mm pitch wire-to-board strip connector, smt/solder,high precision, durable design, electrical interfaceï¼›1.5mm Pitch Wire-to-Board Strip Connector, PCB Mount, Multi-Pin, Durable Housing, Electronic Component.

Send Inquiry

Product Description

Specifications

Model Diagram Specification
1.5-K Type(MX) Wire-to-Board Strip Connector 1.5-K Type Diagram 1. CKT: 2Pin to 16Pin
2. Current rating: 3A AC/DC
3. Voltage rating(max): 350V AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ
6. Insulation resistance: ≥1000MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable wire: AWG #28 to #24
9. Applicable PCB thickness: 1.6mm to 2.0mm
1.5-B Type(MX) Wire-to-Board Strip Connector 1.5-B Type Diagram 1. CKT: 2Pin to 15Pin
2. Current rating: 2A AC/DC
3. Voltage rating(max): 100V AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: ≤40mΩ
6. Insulation resistance: 2500MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable PCB thickness: 1.6mm to 2.0mm

Mounting Measurement

Type Straight Angle Right Angle
1.5-K Type(MX) K Type Straight Angle K Type Right Angle
1.5-B Type(MX) B Type Straight Angle B Type Right Angle

Product Parameter: 1.5-K Type(MX)

Terminal Details (T=0.15mm)

Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WT150K0- T0 AWG#28~ #24 0.7~1.10mm MAX phosphor bronze Tin & Gold-plated

Product Components: 1.5-K Type

Housing Material: Nylon 66 UL 94V-0

Housing 1
Housing 2

Wafer (Straight & Right Angle)

Material: PA6T UL 94V-0 | Terminal: Brass | Finish: Tin/Gold-plated

Wafer 1
Wafer 2
Wafer 3
Wafer 4

Product Components: 1.5-B Type

Wafer Material: PA9T UL 94V-0

Terminal: Phosphor bronze | Fitting: Brass | Finish: Tin/Gold-plated

B Type Wafer

Frequently Asked Questions

What is the current rating for the 1.5-K Type connector?
The 1.5-K Type Wire-to-Board connector has a current rating of 3A AC/DC.
What temperature range can these connectors withstand?
Both 1.5-K and 1.5-B types are designed to operate in temperatures ranging from -25°C to +85°C, including the temperature rise when current is applied.
Which wire gauges are compatible with the 1.5-K Type terminals?
The applicable wire range for the WT150K0-T0 terminal is AWG #28 to #24.
What are the housing materials used in these connectors?
The 1.5-K Type housing is made of Nylon 66 (UL 94V-0), while the 1.5-B Type wafer uses PA9T (UL 94V-0).
Are different mounting configurations available?
Yes, both connector types support Straight Angle and Right Angle mounting configurations to suit different PCB layout requirements.
What is the insulation resistance of the 1.5-B Type connector?
The 1.5-B Type connector features an insulation resistance of 2500MΩ.
