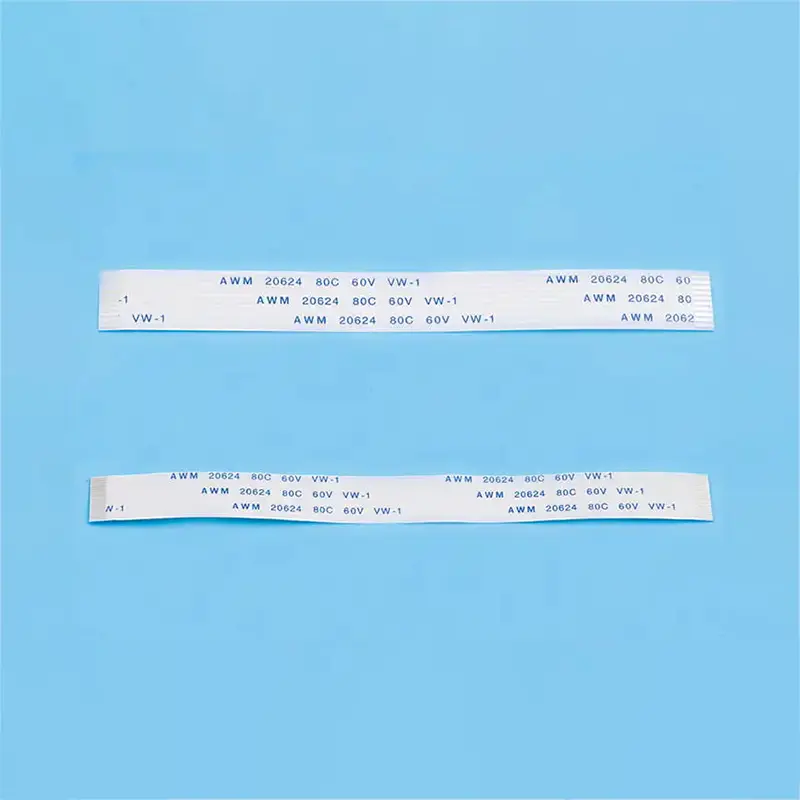

Wholesale FFC Ribbon Cable Flat Flexible Cable 1.0mm Pitch 10-40 Pin Length 10-100cm for Printer LCD Supplier, Factories

Flexible flat cable ffc ribbon cable 0.5mm pitch - flexible ribbon wire cable, high-speed data transfer, flexible and durable, ideal for electronics. FFC cable uses multi-layer insulation materials and shielding layers to effectively prevent electromagnetic interference and ensure the stability and reliability of signal transmission.

Send Inquiry

Product Description

Application Areas

●

Automotive Electronics FFC cable is widely used in automotive electronics fields, such as navigation systems, car audio, air conditioning control systems, etc., for connecting various sensors, actuators, and controllers.

●

Communication Devices In mobile phones, tablets, and other communication devices, FFC cable is used to connect screens, cameras, touch screens, and other modules to achieve signal transmission and control.

●

Medical Equipment In medical imaging equipment, monitors, and other medical devices, FFC cable is used to connect various sensors and displays to collect and display data.

●

Industrial Automation In robots, automated production lines, and other industrial automation equipment, FFC cable is used to connect various sensors, actuators, and controllers to achieve automatic control of the equipment.

●

Household Appliances In televisions, refrigerators, washing machines, and other household appliances, FFC cable is used to connect various circuit boards and display screens to achieve control and display functions of the equipment.

Product Description

DIMENSION
NO of conductors	N
Pitch	P
Span	SP
Width	W
Margin	M / /
Total length	TL
Insulator length	L
Insert Thickness	T
Suface Thickness	ST
Strip Length	S1 / S2
Supporting Tape length	B1 / B2

Dimensional Diagram

CKT	Part No	SP	W	TL
4	A0.50460	1.5	2.5	60
5	A0.50560	2	3	60
6	A0.50660	2.5	3.5	60
7	A0.50760	3	4	60
8	A0.50860	3.5	4.5	60
9	A0.50960	4	5	60
10	A0.51060	4.5	5.5	60
11	A0.511100	5	6	100
12	A0.512100	5.5	6.5	100
13	A0.513100	6	7	100

CKT	Part No	SP	W	TL
4	B0.50460	1.5	2.5	60
5	B0.50560	2	3	60
6	B0.50660	2.5	3.5	60
7	B0.50760	3	4	60
8	B0.50860	3.5	4.5	60
9	B0.50960	4	5	60
10	B0.51060	4.5	5.5	60
11	B0.511100	5	6	100
12	B0.512100	5.5	6.5	100
13	B0.513100	6	7	100

Frequently Asked Questions

What are the primary uses of FFC cables?

FFC (Flexible Flat Cable) cables are primarily used for high-density electronic connections where space is limited, such as in automotive electronics, consumer devices, and industrial machinery.

Are FFC cables suitable for automotive environments?

Yes, they are widely used in automotive systems like navigation, audio controls, and sensors due to their flexibility and reliable signal transmission.

How do I read the dimensional specifications for FFC?

The specifications usually include the number of conductors (N), pitch (P), total width (W), and total length (TL), as shown in our dimensional tables.

What industries benefit from using FFC technology?

Key industries include telecommunications, medical equipment manufacturing, industrial automation, and household appliance production.

Can FFC cables handle data transmission for displays?

Absolutely. FFC cables are a standard solution for connecting circuit boards to LCD screens, cameras, and touch panels in mobile and medical devices.

What does the "Pitch" refer to in an FFC cable?

Pitch refers to the distance from the center of one conductor to the center of the adjacent conductor, which is critical for ensuring the cable matches the connector.
