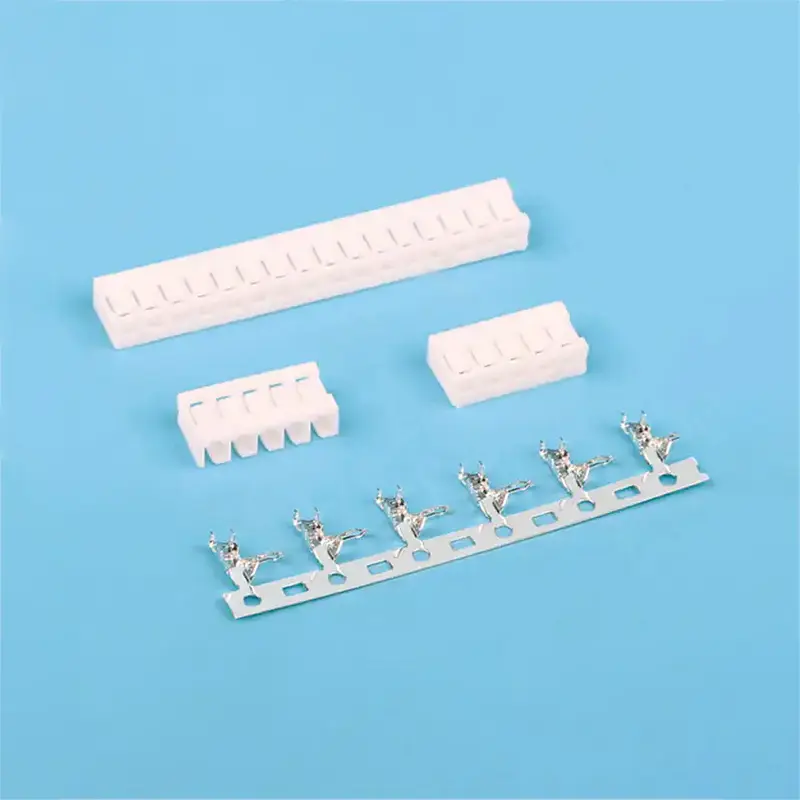

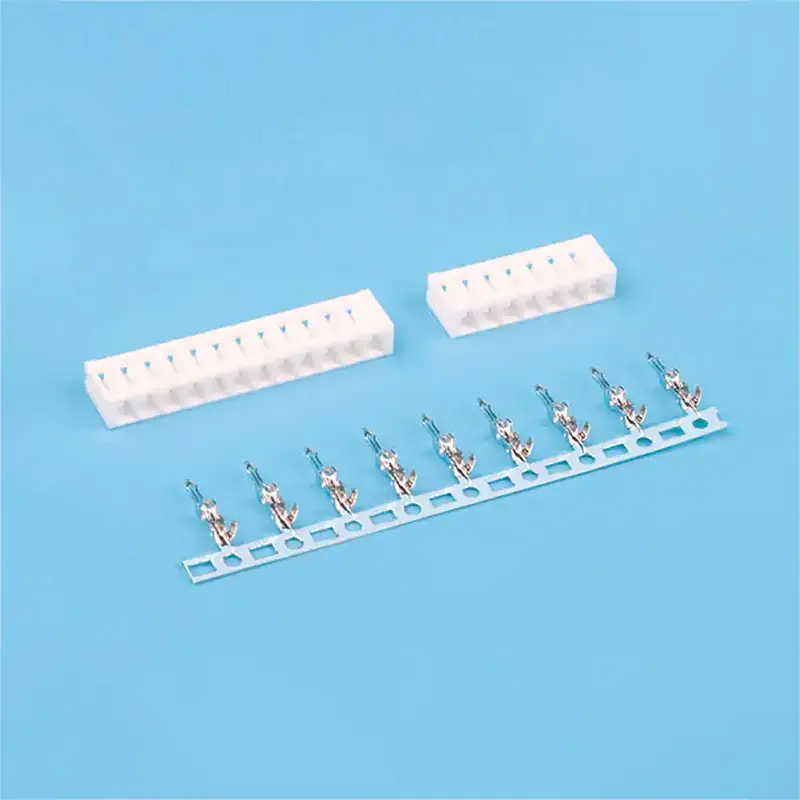

Wholesale SCN2.5 Compatible Connector Set Male Plug Housing with Terminals & Female PCB Socket 2.5mm Pitch Factories, Factory
Wholesale SCN2.5 Compatible Connector Set Male Plug Housing with Terminals & Female PCB Socket 2.5mm Pitch Factories, Factory
1 / 2
Wholesale SCN2.5 Compatible Connector Set Male Plug Housing with Terminals & Female PCB Socket 2.5mm Pitch Factories, Factory
Wholesale SCN2.5 Compatible Connector Set Male Plug Housing with Terminals & Female PCB Socket 2.5mm Pitch Factories, Factory

Wholesale SCN2.5 Compatible Connector Set Male Plug Housing with Terminals & Female PCB Socket 2.5mm Pitch Factories, Factory

2.5mm pitch wire-to-board strip connector, pcb mount, multi-circuit power connector, durable, for electronic applicationsï¼›2.5mm pitch wire-to-board strip connector, pcb mount, signal transfer, electrical component, durable housing, industrial standard, easy installation.

Send Inquiry

Product Description

Specifications
Model Diagram Specification
JC25 Wire-to-Board Strip Connector
JC25 Diagram
  • CKT: 2Pin to 16Pin
  • Current rating: 2.5A AC/DC
  • Voltage rating: 250V, AC/DC
  • Working Temp: -25°C~+85°C
  • Insulation resistance: ≥1000MΩ
  • Withstand voltage: 1000VAC(rms)
  • Applicable wire: AWG #26 to #22
  • PCB thickness: 1.6mm to 2.0mm
SCN2.5 Wire-to-Board Straight Connector
SCN2.5 Diagram
Product Parameter
JC25 Terminal: T=0.2mm
JC25 Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WTJC250-T0 AWG#26~ #22 1.70mm MAX Phosphor bronze Tin & Gold-plated
SZN2.5 Terminal: T=0.2mm
SZN2.5 Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WTSCN25-T0 AWG#26~ #22 1.70mm MAX Phosphor bronze Tin & Gold-plated
Product Description
JC25 Housing

Material: Nylon 66 UL94V-0

JC25 Housing Diagram
CKT Part No DIM A (mm) DIM B (mm)
2WTJC250-022.55.5
3WTJC250-0358
4WTJC250-047.510.5
5WTJC250-051013
6WTJC250-0612.515.5
8WTJC250-0817.520.5
12WTJC250-1227.530.5
16WTJC250-1337.540.5
SZN1.5 Housing

Material: Nylon 66 UL94V-0

SZN1.5 Housing Diagram
CKT Part No DIM A (mm) DIM B (mm)
2WTSCN25-022.56.5
3WTSCN25-0359
4WTSCN25-047.511.5
5WTSCN25-051014
6WTSCN25-0612.516.5
8WTSCN25-0817.521.5
12WTSCN25-1227.531.5
16WTSCN25-1337.541.5
Frequently Asked Questions
What is the current and voltage rating for these connectors?
The JC25 and SCN2.5 series support a current rating of up to 2.5A AC/DC and a maximum voltage rating of 250V AC/DC.
What type of wires can be used with the JC25 terminals?
These terminals are compatible with wire ranges from AWG #26 to AWG #22, with a maximum insulation outer diameter of 1.70mm.
What is the temperature tolerance for these wire-to-board connectors?
The working temperature range is -25°C to +85°C, which includes the temperature rise when applying electrical current.
What materials are used for the housing and terminals?
The housing is made of Nylon 66 UL94V-0. The terminals are manufactured from phosphor bronze with a Tin & Gold-plated finish.
What are the PCB requirements for installation?
The connectors are designed for applicable PCB board thicknesses ranging from 1.6mm to 2.0mm.
How many circuits (pins) are available for these models?
They are available in various configurations from 2 Pin up to 16 Pin to meet different application requirements.
