1.0mm pitch wire-to-board strip connector kit, surface mount, multiple pins, durable, compact, high precision, electronic component, pcb assemblyï¼›1.0mm pitch wire-to-board connector kit, vertical/horizontal mount, multi-pin strip connectors.

Send Inquiry

Product Description

⚙️ Technical Specifications

Model Type	Diagram	General Specification

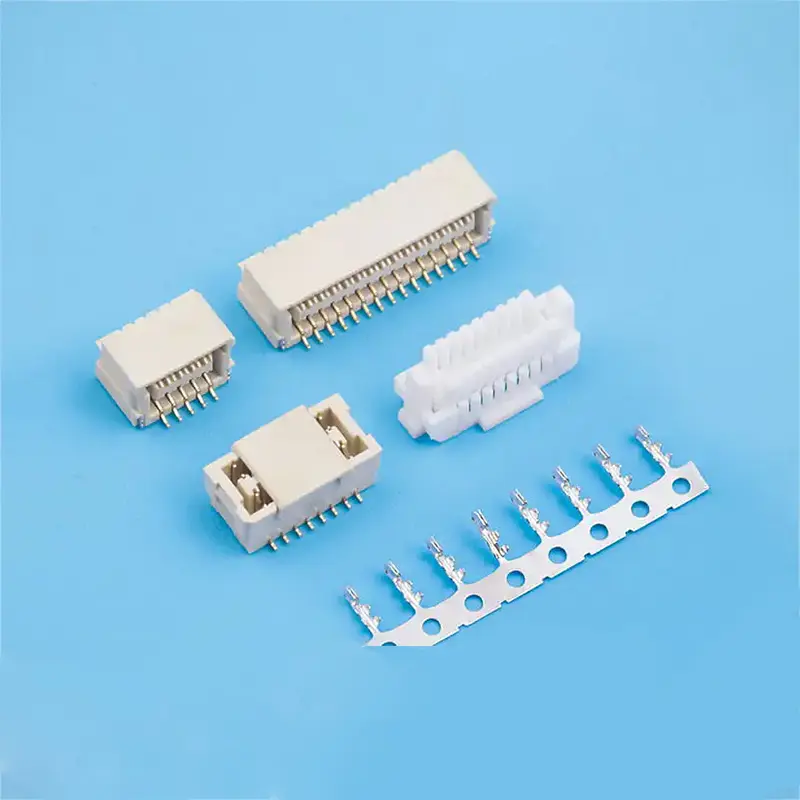

1.0-B Type Double Row (SHD) Wire-to-Board Strip Connector CKT: 24Pin to 230Pin		▶ 1. Current rating: 1A AC/DC ▶ 2. Voltage rating(max): 50V, AC/DC ▶ 3. Working Temperature: -25°C~+85°C ▶ 4. Contact resistance: Initial ≤20mΩ; After testing ≤40mΩ ▶ 5. Insulation resistance: ≥100MΩ ▶ 6. Withstand voltage: 500VAC(rms) ▶ 7. Applicable wire: AWG #32 to #28 ▶ 8. Applicable PCB thickness: 1.6mm to 2.0mm

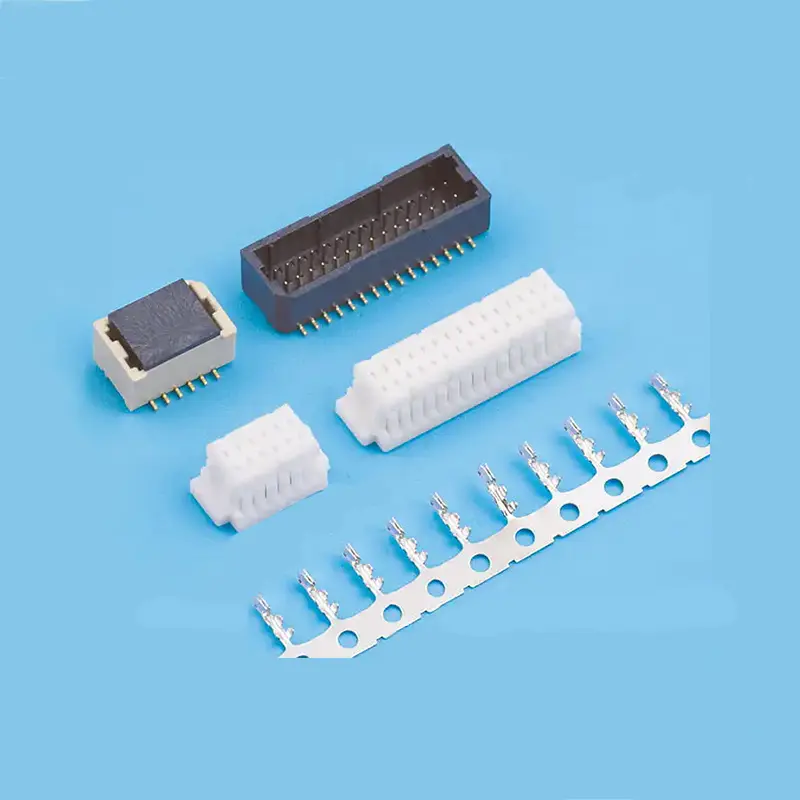

1.0-B Type Double Row 4 Generation Wire-to-Board Connector CKT: 24Pin to 225Pin

📏 Mounting Measurement

Double Row (SHD) Strip Connector

Straight Angle

Right Angle

Double Row 4 Generation Connector

Straight Angle

Right Angle

🛠️ Product Parameter

Terminal Details: 1.0-B Type Double Row(SHD)

Terminal Thickness: T=0.12mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB100B0- T0	AWG#32~ #28	0.8mm MAX	Phosphor Bronze	Tin & Gold-plated

Terminal Details: 1.0-B Type Double Row 4 Generation

Terminal Thickness: T=0.12mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB100B0- T0	AWG#32~ #28	0.6mm MAX	Phosphor Bronze	Tin & Gold-plated

📋 Product Description & Dimensions

Housing: 1.0-B Type Double Row(SHD)

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2*4	WB100B0-08	3	4.4
2*10	WB100B0-20	9	10.4
2*30	WB100B0-60	29	30.4

Wafer: 1.0-B Type Double Row(SHD)

Housing: PA6T / LCP UL 94V-0 | Terminal & Fitting: Phosphor Bronze | Finish: Tin/Gold-plated

Housing: 1.0-B Type Double Row 4 Generation

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2*4	WB100B0-08	8.75	3
2*12	WB100B0-24	16.75	11
2*25	WB100B0-50	29.75	25

Wafer: 1.0-B Type Double Row 4 Generation

Housing: LCP UL 94V-0 | Terminal & Fitting: Phosphor Bronze | Finish: Tin/Gold-plated

Frequently Asked Questions

1. What is the current and voltage rating for these connectors?

The connectors have a current rating of 1A AC/DC and a maximum voltage rating of 50V AC/DC.

2. What is the working temperature range?

The operating temperature range is -25°C to +85°C, which includes the temperature rise when electrical current is applied.

3. Which wire sizes are compatible with these terminals?

These connectors are designed for use with applicable wire sizes ranging from AWG #32 to #28.

4. What materials are used for the housing and terminals?

The housings are typically made of Nylon 66 or LCP (UL 94V-0). The terminals and fittings are made of phosphor bronze with tin or gold plating options.

5. What are the available circuit (CKT) sizes?

For the SHD Type, circuit sizes range from 2*4Pin to 2*30Pin. For the 4th Generation Type, they range from 2*4Pin to 2*25Pin.

6. What is the insulation and contact resistance?

The insulation resistance is ≥100MΩ, and the initial contact resistance is ≤20mΩ (≤40mΩ after environmental testing).
