China ‌0.5mm pitch 2.2mm height horizontal SMT FPC FFC socket with flip cover and butterfly latch bottom entry design Manufacturer, Supplier
1 / 1
China ‌0.5mm pitch 2.2mm height horizontal SMT FPC FFC socket with flip cover and butterfly latch bottom entry design Manufacturer, Supplier

China ‌0.5mm pitch 2.2mm height horizontal SMT FPC FFC socket with flip cover and butterfly latch bottom entry design Manufacturer, Supplier

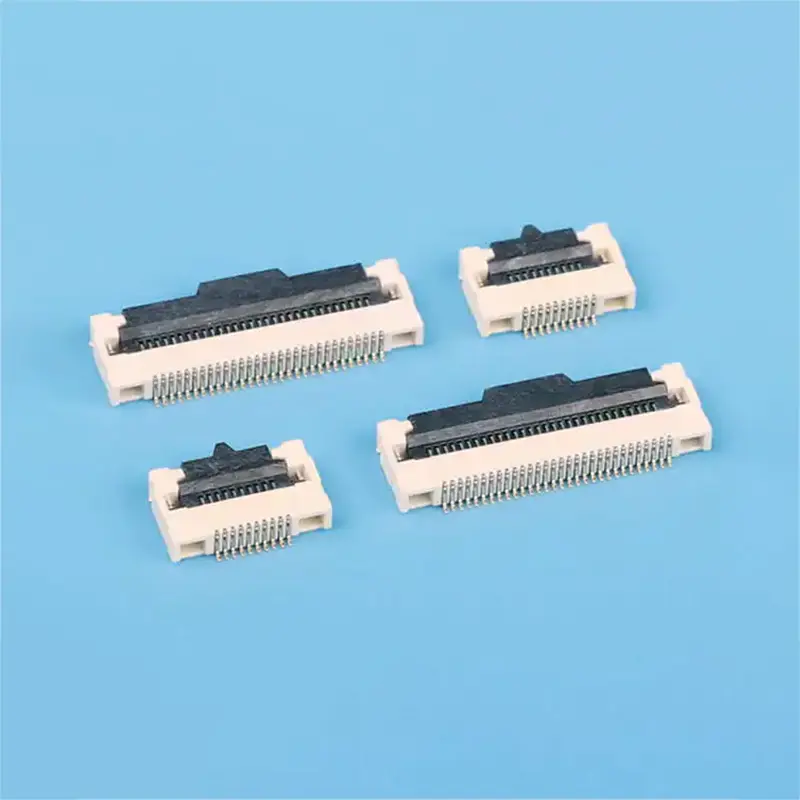

The 0.5mm Pitch Easy On Type H=2.2 with Buckle connector is a connector designed for flexible printed circuit boards (FPCs). The connector is compact in design and only 2.2mm in height, making it ideal for applications with limited space. The easy-plug structure makes it easier to install and remove, thereby increasing the usability of the connector in various electronic devices. The connector has a pitch of 0.5mm and is compatible with a variety of pin configurations from 5 pins to 96 pins, which can flexibly adapt to different circuit designs.

Send Inquiry

Product Description

Product Overview
The 0.5mm pitch connector is rated for 0.5A and is suitable for both AC and DC applications, ensuring reliable performance in a wide range of electronic systems. The AC/DC voltage rating of up to 50V makes it suitable for numerous consumer electronics and industrial applications. The connector is designed to operate over a temperature range of -25°C to +85°C, which takes into account the temperature rise when powered on. In terms of electrical performance, the 0.5mm Pitch Easy On Type H=2.2 with Buckle connector has an impressive contact resistance value of less than 30mΩ. Such low contact resistance is critical to minimizing power losses and ensuring efficient signal transmission.
Technical Specifications
Product Diagram
Feature Details
CKT Range5Pin to 96Pin
Current Rating0.5A AC/DC
Voltage Rating50V AC/DC (Max)
Working Temperature-25°C to +85°C
Contact Resistance< 30mΩ
Insulation Resistance≥ 100MΩ
Withstand Voltage500V AC (rms)
Applicable PCB Thickness1.6mm to 2.0mm
Mounting & Layout Measurement
Assembly Layout
Assembly Layout
Applicable Flat Cable
Flat Cable
P.C.B Layout
PCB Layout
Detailed Description
Easy-on R/A With Buckle
Material and Finish:
Housing: LCP UL 94V-0
Terminal: Phosphor bronze
Fitting: Phosphor bronze
Finish: Tin-plated & Gold-plated

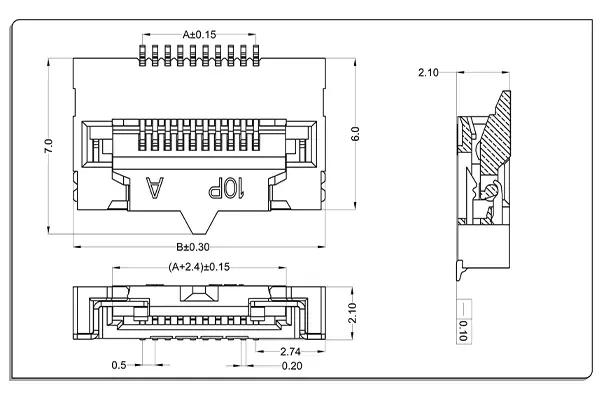

Product Description Detail
CKT Part No DIM A (mm) DIM B (mm)
5XW02522-0527.5
6XW02522-062.58
7XW02522-0738.5
8XW02522-083.59
9XW02522-0949.5
10XW02522-104.510
11XW02522-11510.5
12XW02522-125.511
13XW02522-13611.5
14XW02522-146.512
15XW02522-15712.5
............
96XW02522-9647.553
Frequently Asked Questions
What is the electrical rating for this 0.5mm pitch connector?
The connector is rated for a current of 0.5A (AC/DC) and a maximum voltage of 50V (AC/DC).
What is the operating temperature range?
It can operate reliably between -25°C and +85°C, which includes the temperature rise during electrical current application.
What materials are used in the construction of this connector?
The housing is made of LCP UL 94V-0, while the terminals and fittings are crafted from high-quality phosphor bronze with tin and gold plating.
How many circuits (pins) are available for this series?
This connector series is available in a wide range of pin counts, from 5Pin up to 96Pin.
What is the contact resistance value?
The connector features a low contact resistance of less than 30mΩ, ensuring high efficiency in signal transmission.
What is the compatible PCB thickness for mounting?
This product is suitable for PCB boards with a thickness ranging from 1.6mm to 2.0mm.
