Wholesale Horizontal & Vertical VH3.96 Plug Housing, 3.96mm Pitch Male Connector for Wire to Board Connection Supplier, Factory
1 / 1
Wholesale Horizontal & Vertical VH3.96 Plug Housing, 3.96mm Pitch Male Connector for Wire to Board Connection Supplier, Factory

Wholesale Horizontal & Vertical VH3.96 Plug Housing, 3.96mm Pitch Male Connector for Wire to Board Connection Supplier, Factory

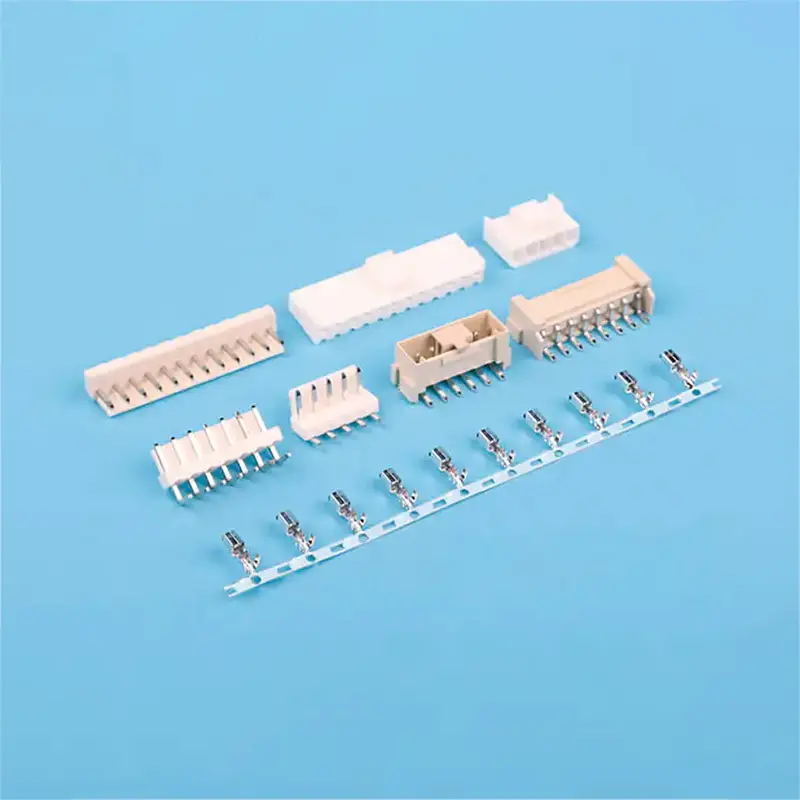

VH3.96 mm Nylon Horizontal Straight Pin High Temperature and Corrosion Resistance Wire-to-Board Strip Connector.The 3.96mm Pitch WTB board-to-board strip connector adopts a precise design concept, enabling high-density connections and improving the stability and reliability of circuits.

Send Inquiry

Product Description

Specifications
Technical Diagram
CKT: 2Pin to 16Pin
Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Working Temp: -25°C to +85°C
Contact Resistance: Initial ≤20mΩ / After Test ≤30mΩ
Insulation Resistance: ≥1000MΩ
Withstand Voltage: 1500V AC(rms)
Applicable Wire: AWG #22 to #16
PCB Thickness: 1.6mm to 2.0mm
Mounting Measurement

Straight Angle

Straight Angle Mounting

Right Angle

Right Angle Mounting
Product Parameter

Terminal: T=0.25mm

Product Parameter Diagram
Part No. Wire Range Insulation O.D Material Finish
WT396V0-T0 AWG#22~ #16 3.00mm MAX phosphor bronze Tin & Gold-plated
Product Description

Housing Material: Nylon 66 UL 94V-2 / UL94V-0

Housing Diagram
CKT Part No DIM A DIM B
2WT396V0-023.968.46
3WT396V0-037.9212.42
4WT396V0-0411.8816.38
5WT396V0-0515.8420.34
6WT396V0-0619.824.3
7WT396V0-0723.7628.26
8WT396V0-0827.7232.22
9WT396V0-0931.6836.18
10WT396V0-1035.6440.14
11WT396V0-1139.644.1
12WT396V0-1243.5648.06
13WT396V0-1359.463.9

Wafer Material and Finish:

Housing: LCP UL 94V-0 or Nylon 66; Terminal: Brass; Fitting: Brass; Finish: Tin-plated & Gold-plated

Wafer Type 1
Wafer Type 2
CKT Part No (LCP/Nylon) DIM A DIM B
2WT396VL/VW-023.968.68 / 7.92
3WT396VL/VW-037.9212.64 / 11.88
12WT396VL/VW-1243.5648.28
16WT396VL/VW-1659.463.36
Housing Detail
Terminal Detail
Assembly View
Final Product Overview
FAQ
1. What is the current and voltage rating for these connectors?
The connectors have a current rating of 7A AC/DC and a maximum voltage rating of 250V AC/DC.
2. What wire sizes are compatible with the WT396 series?
These connectors are compatible with wire ranges from AWG #22 to AWG #16.
3. What are the material options for the housing?
The housing is available in Nylon 66 (UL 94V-2 or UL 94V-0) and LCP (UL 94V-0) to suit different temperature and durability requirements.
4. What is the operating temperature range?
The working temperature range is -25°C to +85°C, which includes the temperature rise during electrical current application.
5. Can these connectors be mounted at different angles?
Yes, the series supports both Straight Angle and Right Angle mounting configurations on PCB thicknesses ranging from 1.6mm to 2.0mm.
6. What is the contact resistance of the terminal?
The initial contact resistance is ≤20mΩ, and it remains ≤30mΩ after environmental testing.
