| Model | Diagram | General Specifications |
|---|---|---|

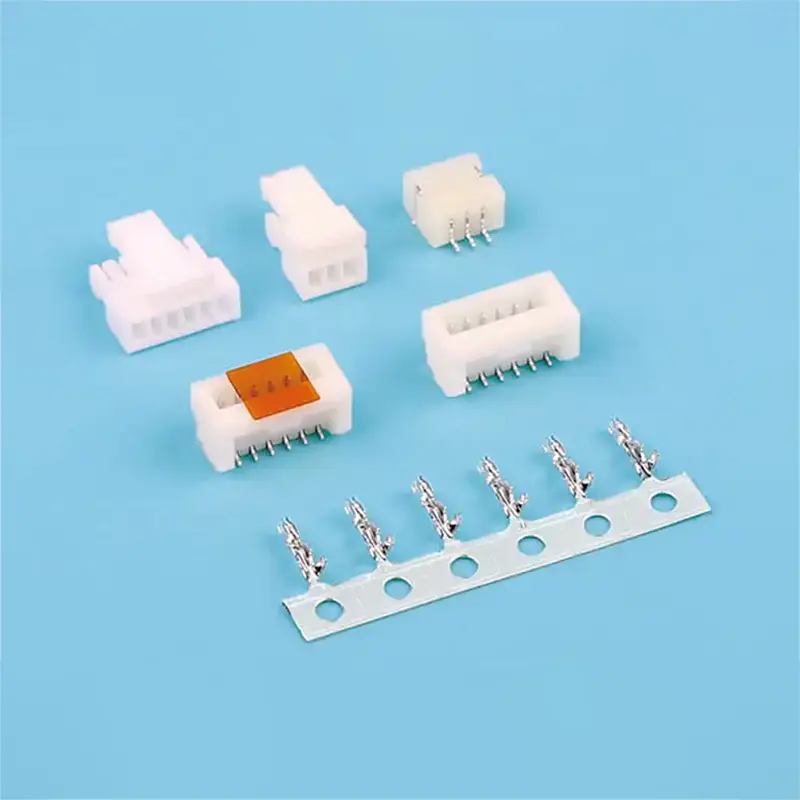

| 1.0-E Type(SH) Wire-to-Board Strip Connector |
1. Current rating: 1A AC/DC 2. Voltage rating(max): 50V AC/DC 3. Working Temperature: -25°C to +85°C 4. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ 5. Insulation resistance: ≥100MΩ 6. Withstand voltage: 500VAC(rms) 7. Applicable wire: AWG #32 to #28 8. Applicable PCB board thickness: 1.6mm to 2.0mm |
|
| CKT: 2Pin to 26Pin | - | |

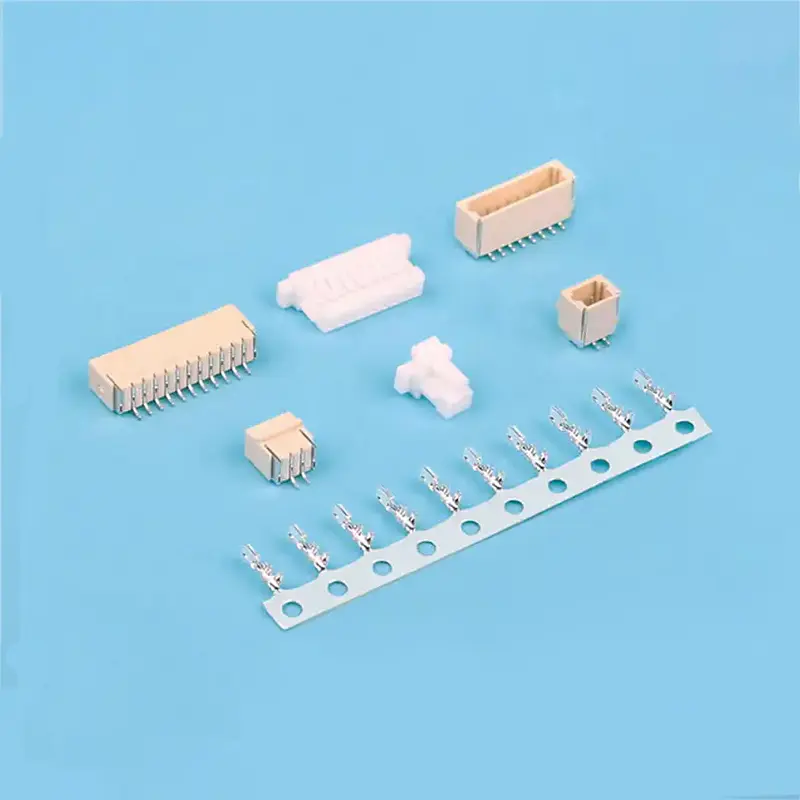

| 1.0-B Type(NH) Wire-to-Board Strip Connector | Standard 1.0mm Pitch performance parameters apply. | |
| CKT: 2Pin to 20Pin | - |
| Type | Straight Angle | Right Angle |
|---|---|---|
| 1.0-E Type(SH) | ||
| 1.0-B Type(NH) |
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT100E0- T0 | AWG#32~ #28 | 0.8mm MAX | phosphor bronze | Tin & Gold-plated |
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT100B0- T0 | AWG#32~ #28 | 0.8mm MAX | phosphor bronze | Tin & Gold-plated |
Housing Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT100E0-02 | 1 | 2.4 |
| 12 | WT100E0-12 | 11 | 12.4 |
| 20 | WT100E0-20 | 19 | 20.4 |
Wafer (SMT Type): LCP UL 94V-0 / Phosphor Bronze / Tin & Gold-plated
Housing Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT100B0-02 | 3 | 2.4 |
| 16 | WT100B0-16 | 17 | 16.4 |
Wafer Material: PA6T UL 94V-0 / Brass / Phosphor Bronze
