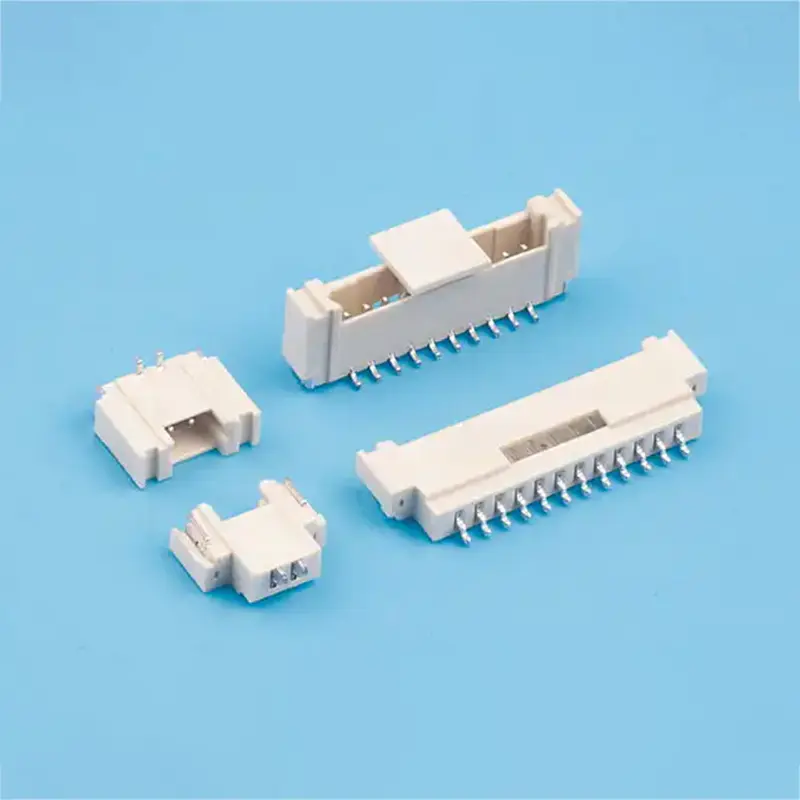

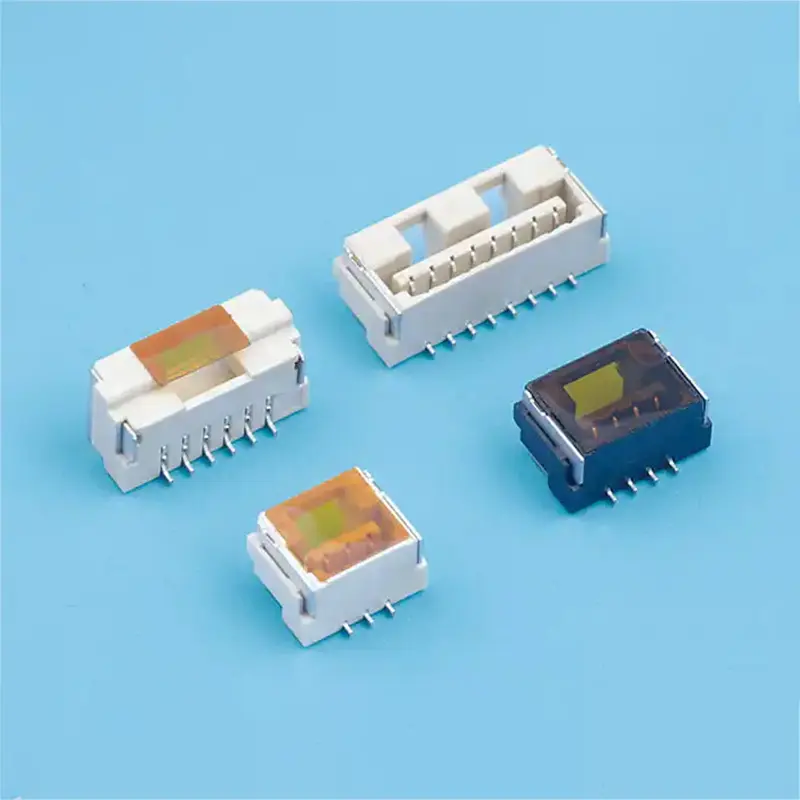

China MX1.25mm Internal Lock SMT Connector for PCB Vertical Horizontal Mount Compatible with 502382 Wafer Header Manufacturers, Supplier
China MX1.25mm Internal Lock SMT Connector for PCB Vertical Horizontal Mount Compatible with 502382 Wafer Header Manufacturers, Supplier
1 / 2
China MX1.25mm Internal Lock SMT Connector for PCB Vertical Horizontal Mount Compatible with 502382 Wafer Header Manufacturers, Supplier
China MX1.25mm Internal Lock SMT Connector for PCB Vertical Horizontal Mount Compatible with 502382 Wafer Header Manufacturers, Supplier

China MX1.25mm Internal Lock SMT Connector for PCB Vertical Horizontal Mount Compatible with 502382 Wafer Header Manufacturers, Supplier

1.25mm pitch wire-to-board strip connector, pcb mount, high-density interconnect system, durable, for industrial and commercial applications;1.25mm pitch wire-to-board strip connector kit, wire-to-board wire harness plug, compact design, electronics repair and assembly

Send Inquiry

Product Description

Specifications
Model Diagram Specification
1.25-C Type PCB Wire-to-Board Strip Connector 1. CKT: 2Pin to 15Pin
2. Current rating: 1A AC/DC
3. Voltage rating(max): 50V, AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: Initial ≤20mΩ; After testing ≤40mΩ
6. Insulation resistance: ≥100MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable PCB thickness: 1.6mm to 2.0mm
1.25-DF16 Type PCB Wire-to-Board Strip Connector 1. CKT: 2Pin to 30Pin
2. Current rating: 1A AC/DC
3. Voltage rating(max): 150V, AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ
6. Insulation resistance: ≥500MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable PCB thickness: 1.6mm to 2.0mm
Mounting Measurement
Type Straight Angle Right Angle
1.25-C Type
1.25-DF16 Type
Product Description: 1.25-C Type
Material and Finish (Wafer):
Housing: LCP UL 94V-0 | Terminal: Phosphor bronze | Fitting: Brass
Finish: Tin-plated & Gold-plated
1.25-C Type Drawing 1
CKT Part No DIM A DIM B
2WT125CL-0264.78
3WT125CL-037.256.03
4WT125CL-048.57.28
5WT125CL-059.758.53
15WT125CL-1522.2521.3
1.25-C Type Drawing 2
CKT Part No DIM A DIM B
2WT125CW-0264.78
3WT125CW-037.256.03
12WT125CW-1218.517.28
15WT125CW-1522.2521.03
Product Description: 1.25-DF16 Type
Material and Finish (Wafer):
Housing: LCP UL 94V-0 | Terminal: Brass | Fitting: Brass
Finish: Tin-plated & Gold-plated
1.25-DF16 Type Drawing 1
CKT Part No DIM A DIM B
2WT125FL-021.253.05
6WT125FL-066.258.05
12WT125FL-1213.7515.55
30WT125FL-3036.2538.05
1.25-DF16 Type Drawing 2
CKT Part No DIM A DIM B
2WT125FW-021.253.05
10WT125FW-1011.2513.05
30WT125FW-3036.2538.05
Frequently Asked Questions
What is the current and voltage rating for these connectors?
Both 1.25-C and 1.25-DF16 types have a current rating of 1A AC/DC. The voltage rating is 50V AC/DC for the 1.25-C type and 150V AC/DC for the 1.25-DF16 type.
What materials are used in the construction of these wafers?
The housing is made from LCP UL 94V-0. Terminals are typically phosphor bronze or brass, with brass fittings, all featuring tin-plated or gold-plated finishes for superior conductivity.
What is the operating temperature range?
These connectors are designed to operate reliably within a temperature range of -25°C to +85°C, which includes the temperature rise when electrical current is applied.
Which PCB thicknesses are compatible with these strip connectors?
The applicable PCB board thickness for these 1.25mm pitch connectors ranges from 1.6mm to 2.0mm.
How many circuits (pins) are available for each model?
The 1.25-C type is available from 2 pins up to 15 pins, while the 1.25-DF16 type offers a wider range from 2 pins up to 30 pins.
Are there different mounting angles available?
Yes, both connector types support Straight Angle and Right Angle mounting configurations to suit different PCB layout requirements.
