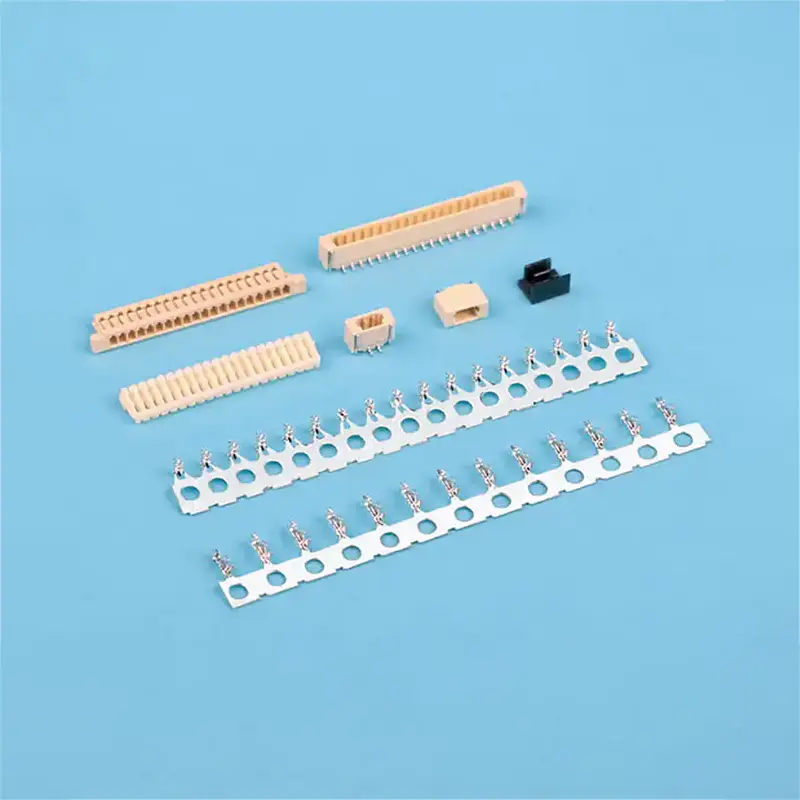

High-Quality 0.8mm Pitch Crimp Gold Plated Connector Wire to Board Male Header Female Socket Housing Tool-Less Insulation Displacement Terminal Manufacturer, Factory

1 / 1

High-Quality 0.8mm Pitch Crimp Gold Plated Connector Wire to Board Male Header Female Socket Housing Tool-Less Insulation Displacement Terminal Manufacturer, Factory

0.8mm pitch Wire-to-Board strip connector, wtb series, high-speed signal transmission, compact design, smt mounting.WTB board-to-board strip connectors are made of high-quality materials, which have good corrosion resistance and wear resistance. They can maintain stable performance in various harsh environments.

Send Inquiry

Product Description

Technical Specifications

Performance Standards:

• CKT: 2Pin to 25Pin
• Current rating: 0.5A AC/DC
• Voltage rating(max): 30V, AC/DC
• Temperature Range: -25°C to +85°C
• Contact Resistance: ≤20mΩ (Initial)
• Insulation Resistance: ≥100MΩ
• Withstand Voltage: 200VAC(rms)
• Applicable Wire: AWG #32 to #28
• PCB Thickness: 1.6mm to 2.0mm

Mounting Measurements

Straight Angle

Right Angle

Product Parameters

Terminal Detail: T=0.12mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WT080C0- T0	AWG#32~ #28	0.6mm MAX	Phosphor Bronze	Tin & Gold-plated

Housing Description

Material: LCP UL 94V-0

CKT	Part No	DIM A	DIM B
2	WT080C0-02	0.8	1.8
3	WT080C0-03	1.6	2.6
4	WT080C0-04	2.4	3.4
5	WT080C0-05	3.2	4.2
6	WT080C0-06	4	5
12	WT080C0-12	8.8	9.8
25	DCT150A0-16	19.2	20.2

Wafer (SMT Type)

Material and Finish:
Housing: LCP UL 94V-0 | Terminal: Phosphor Bronze | Fitting: Phosphor Bronze
Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT080CL-02	0.8	3.8
6	WT080CL-06	4	7
12	WT080CL-12	8.8	11.8
25	DCT150AL-16	19.2	20.2

Insulation Displacement

Material: Nylon 66 UL94V-0 | Finish: Tin & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT080C0-02	0.8	1.78
5	WT080C0-05	3.2	4.18
10	WT080C0-10	7.2	8.18
25	DCT150A0-16	19.2	20.2

Frequently Asked Questions

What is the pin count range for these connectors?

The series supports a wide range of circuits from 2Pin to 25Pin.

What are the electrical ratings for this product?

It features a current rating of 0.5A AC/DC and a maximum voltage rating of 30V AC/DC.

What wire sizes are compatible with these terminals?

The applicable wire range is AWG #32 to #28.

What is the operating temperature range?

These connectors are designed to work within a temperature range of -25°C to +85°C.

What materials are used for the connector housing?

Depending on the model, the housing is made from high-quality LCP UL 94V-0 or Nylon 66 UL94V-0.

Are different mounting configurations available?

Yes, we provide both Straight Angle and Right Angle mounting options to suit different PCB layouts.
