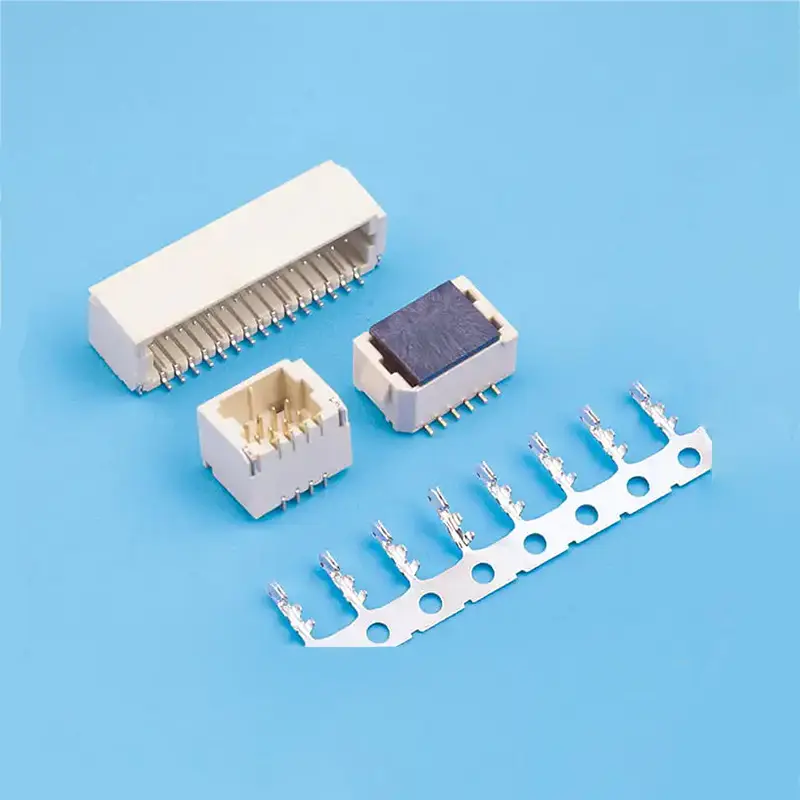

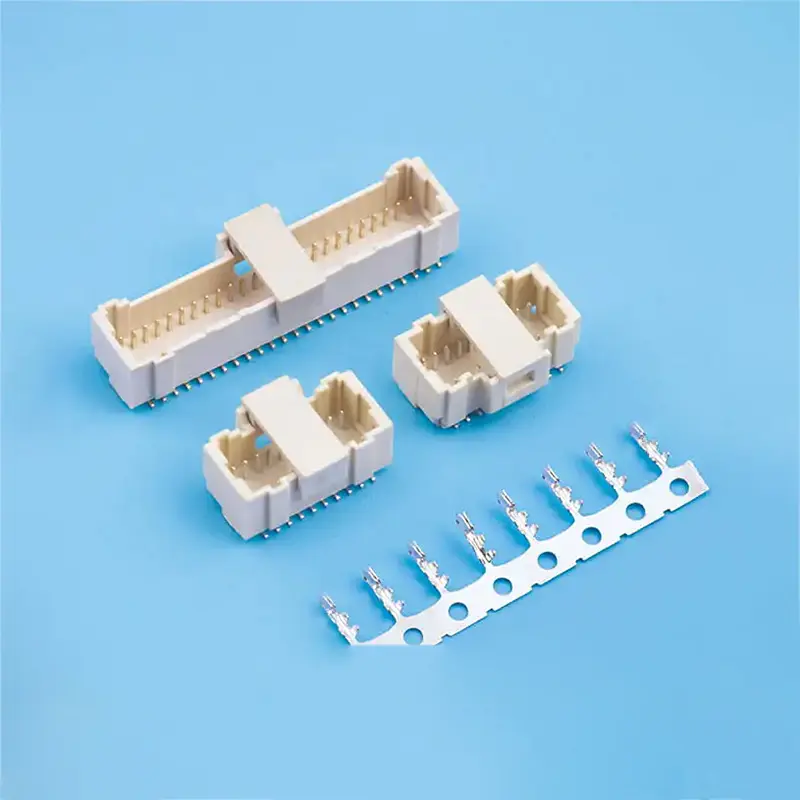

High-Quality SHD 1.0 Dual-Row Locking SMT Gold Plated Socket Connector 501190/203564 Wire To Board Socket Header Suppliers, Factory
High-Quality SHD 1.0 Dual-Row Locking SMT Gold Plated Socket Connector 501190/203564 Wire To Board Socket Header Suppliers, Factory
1 / 2
High-Quality SHD 1.0 Dual-Row Locking SMT Gold Plated Socket Connector 501190/203564 Wire To Board Socket Header Suppliers, Factory
High-Quality SHD 1.0 Dual-Row Locking SMT Gold Plated Socket Connector 501190/203564 Wire To Board Socket Header Suppliers, Factory

High-Quality SHD 1.0 Dual-Row Locking SMT Gold Plated Socket Connector 501190/203564 Wire To Board Socket Header Suppliers, Factory

1.0mm pitch wire-to-board strip connector kit, pcb circuit board connectors, horizontal smt/smd mountï¼›1.0mm pitch horizontal smt wtb board-to-board connector strip, pcb mount, multi-pin, interlocking design, durable housing

Send Inquiry

Product Description

Specifications
Model Diagram Specification
1.0-B Type Double Row 2 Generation Model 2 Generation 1. Current rating: 1A AC/DC
2. Voltage rating(max): 50V, AC/DC
3. Working Temperature: -25°C to +85°C
4. Contact resistance: Initial ≤20mΩ, After testing ≤40mΩ
5. Insulation resistance: ≥100MΩ
6. Withstand voltage: 500VAC(rms)
7. Applicable wire: AWG #32 to #28
8. Applicable PCB thickness: 1.6mm to 2.0mm
1.0-B Type Double Row 3 Generation Model 3 Generation
Mounting Measurement
1.0-B Type Double Row 2 Generation

Straight Angle

Straight Angle 2G

Right Angle

Right Angle 2G
1.0-B Type Double Row 3 Generation

Straight Angle

Straight Angle 3G
Product Parameters

Terminal: T=0.12mm

Terminal Parameter
Part No. Wire Range Insulation O.D Material Finish
WB100B0- T0 AWG#32~ #28 0.8mm MAX Phosphor bronze Tin & Gold-plated
Product Description
1.0-B Type Double Row 2 Generation (Housing)

Material: Nylon 66 UL 94V-0

Housing 2G
CKT Part No DIM A DIM B
2*3WB100B0-0623.4
2*4WB100B0-0834.4
2*10WB100B0-20910.4
2*25WB100B0-502425.4
1.0-B Type Double Row 2 Generation (Wafer)

Housing: LCP UL94V-0 | Terminal: Phosphor bronze | Fitting: Phosphor bronze

Wafer 2G - Type 1
Wafer 2G - Type 2
1.0-B Type Double Row 3 Generation (Wafer)

Housing: LCP UL94V-0 | Terminal: Phosphor bronze | Fitting: Brass

Wafer 3G
CKT Part No DIM A DIM B
2*10WB100BL-20912.3
2*15WB100BL-301417.3
2*25WB100BL-502427.3
Frequently Asked Questions
Q1: What is the current and voltage rating for these connectors?
The current rating is 1A AC/DC and the maximum voltage rating is 50V AC/DC.
Q2: What temperature range can these connectors withstand?
They are designed to operate in temperatures ranging from -25°C to +85°C, including temperature rise when electrical current is applied.
Q3: Which wire gauges are compatible with the 1.0-B Type Double Row series?
The applicable wire range is AWG #32 to #28 with a maximum insulation O.D. of 0.8mm.
Q4: What materials are used for the housing and terminals?
Housings are typically made of Nylon 66 or LCP (UL94V-0). Terminals are crafted from phosphor bronze with tin or gold plating.
Q5: What is the recommended PCB board thickness for installation?
The recommended applicable PCB board thickness ranges from 1.6mm to 2.0mm.
Q6: What is the insulation resistance of the connector?
The connector provides an insulation resistance of ≥100MΩ.
