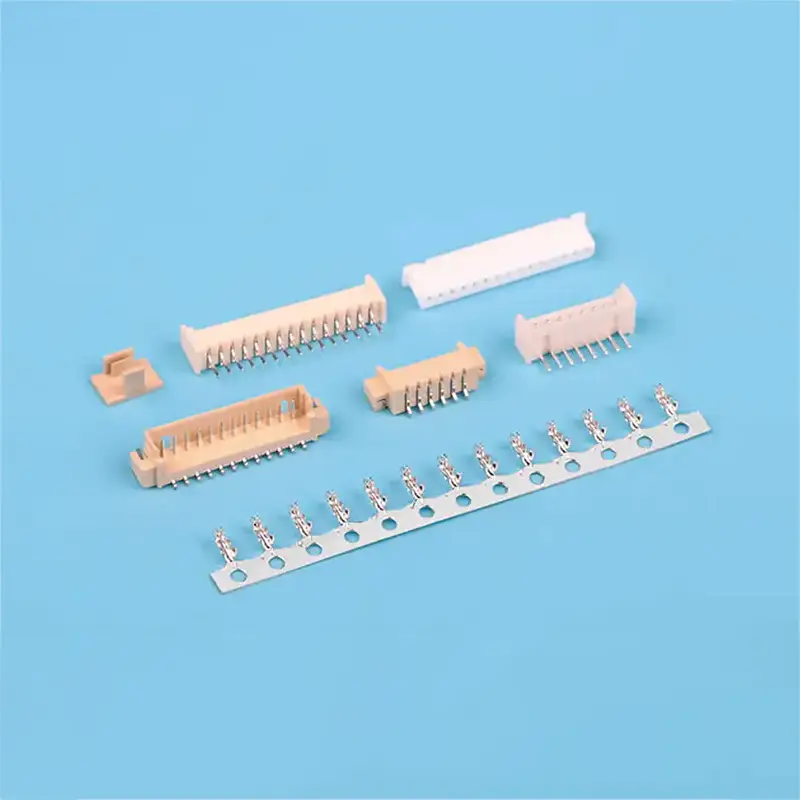

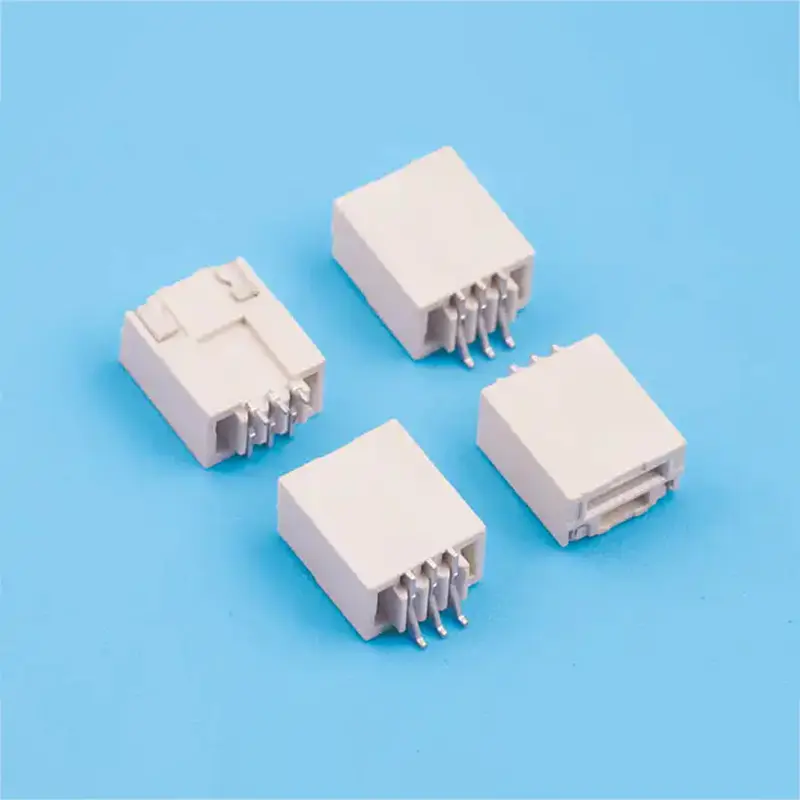

China 1.25mm Pitch Horizontal SMT Connector for LED Light Bar, LCD TV Backlight Strip Socket, LED Strip to Board Connector Suppliers, Factory

1.25mm pitch wire-to-board connector kit, pcb strip connectors, signal transmission, durable housing, multi-pin configurationsï¼›1.25mm pitch wire-to-board strip connectors kit, right-angle smt, electronics prototyping set.

Send Inquiry

Product Description

Specifications

Model	Diagram	Specification
1.25-A Type PCB Wire-to-Board Strip Connector		1. CKT: 3Pin 2. Current rating: 1A AC/DC 3. Voltage rating(max): 125V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ 6. Insulation resistance: ≥100MΩ 7. Withstand voltage: 500VAC(rms) 8. Applicable PCB thickness: 1.6mm to 2.0mm
1.25-D Type PCB Wire-to-Board Strip Connector		1. CKT: 2Pin to 20Pin 2. Current rating: 1A AC/DC 3. Voltage rating(max): 125V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ; After testing ≤40mΩ 6. Insulation resistance: ≥100MΩ 7. Withstand voltage: 500VAC(rms) 8. Applicable wire: AWG #32 to #28 9. Applicable PCB thickness: 1.6mm to 2.0mm

Mounting Measurement

1.25-D Type (Right Angle)

1.25-A Type

Straight Angle

Right Angle

Product Parameters

1.25-A Terminal

Terminal: T=0.15mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WT125A0- T0	AWG#32~ #28	0.8mm MAX	phosphor bronze	Tin & Gold-plated

Product Description

1.25-D Wafer

Material and Finish: Housing: LCP UL94V-0; Terminal: phosphor bronze; Fitting: Brass; Finish: Tin-plated & Gold-plated

1.25-A Housing

Material: Nylon 66 UL 94V-0

CKT	Part No	DIM A	DIM B
2	WT125A0-02	1.25	2.95
3	WT125A0-03	2.5	4.2
6	WT125A0-06	6.25	7.95
10	WT125A0-10	11.25	12.95
20	WT125A0-20	23.75	25.45

1.25-A Wafer (Various Types)

Material and Finish: Housing: LCP or Nylon 66 UL 94V-0; Terminal: Brass; Fitting: Brass; Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A	DIM B
2	WT125AL-02	1.25	3.25
5	WT125AL-05	5	7
12	WT125AL-12	13.75	15.75
20	WT125AL-20	23.75	25.75

Frequently Asked Questions

What is the current and voltage rating for these connectors?

The connectors have a current rating of 1A AC/DC and a maximum voltage rating of 125V AC/DC.

What temperature range can these connectors withstand?

The working temperature range is -25°C to +85°C, which includes the temperature rise when electrical current is applied.

What materials are used in the housing and terminals?

Housings are made from Nylon 66 or LCP (UL 94V-0). Terminals are typically made from phosphor bronze or brass with tin or gold plating.

Which wire gauges are compatible with the 1.25-D type?

The 1.25-D type strip connectors are compatible with wire sizes ranging from AWG #32 to #28.

What is the recommended PCB board thickness for installation?

The recommended applicable PCB board thickness for these wire-to-board connectors is between 1.6mm and 2.0mm.

What is the insulation resistance of these connectors?

The connectors provide an insulation resistance of ≥100MΩ and can withstand a voltage of 500VAC(rms).
