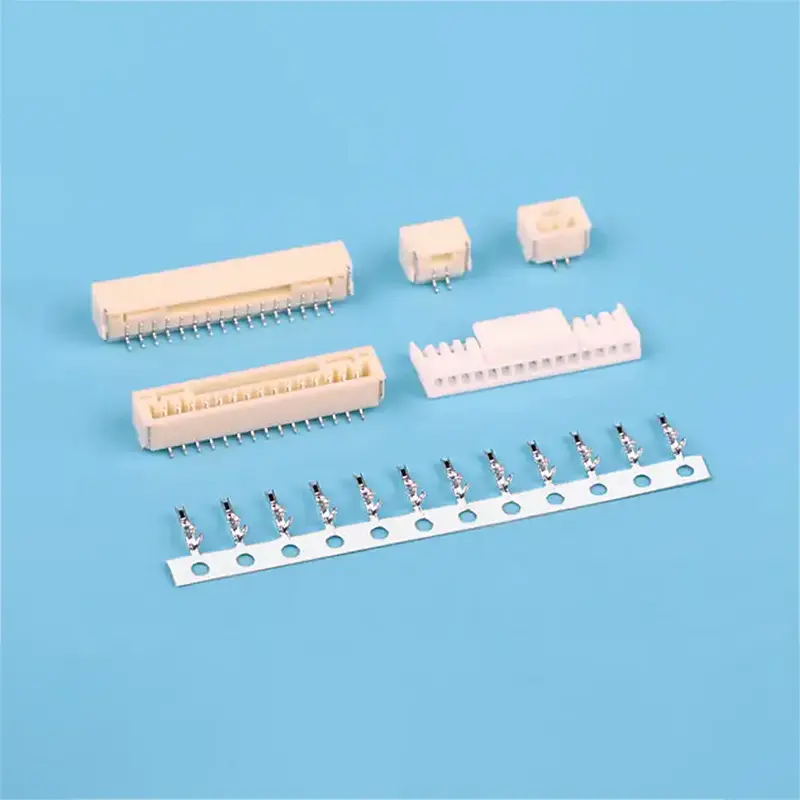

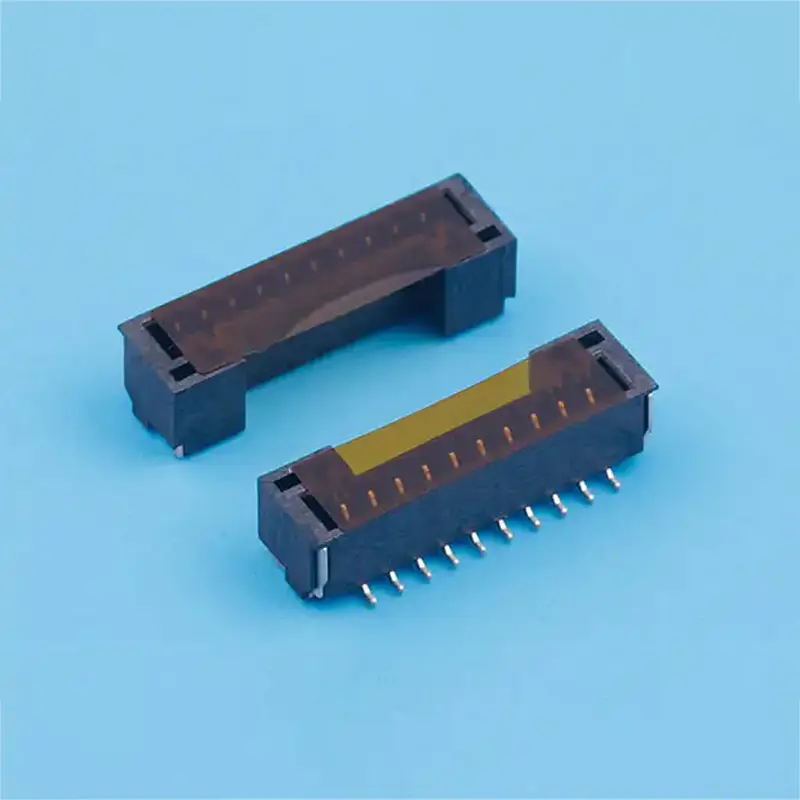

| 1.25-H Type (GH) PCB Wire-to-Board Strip Connector |
1. CKT: 2Pin to 18Pin 2. Current rating: 1A AC/DC 3. Voltage rating(max): 50V, AC/DC 4. Working Temperature: -25°C~+85°C (Including temperature rise) 5. Contact resistance: Initial ≤20mΩ; After testing ≤40mΩ 6. Insulation resistance: ≥100MΩ 7. Withstand voltage: 500VAC(rms) 8. Applicable wire: AWG #32 to #26 9. Applicable PCB board thickness: 1.6mm to 2.0mm |
|
| 1.25-H Type (GH) PCB Wire-to-Board Strip Connector-Customized |
| Type | Straight Angle | Right Angle |
| 1.25-H Type (GH) Standard | ||
| 1.25-H Type (GH) Customized |
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT125H0- T0 | AWG#32~ #26 | 1.0mm MAX | Phosphor bronze | Tin & Gold-plated |
| Part No. | Wire Range | Insulation O.D | Material | Finish |
| WT125H0- T0 | AWG#32~ #26 | 1.0mm MAX | Phosphor bronze | Tin & Gold-plated |
Housing Material: Nylon 66 UL 94V-0
| CKT | Part No | DIM A | DIM B |
| 2 | WT125H0-02 | 1.25 | 3.75 |
| 3 | WT125H0-03 | 2.5 | 5 |
| 6 | WT125H0-06 | 6.25 | 8.75 |
| 12 | WT125H0-12 | 13.75 | 16.25 |
| 18 | WT125H0-18 | 21.25 | 23.75 |
Wafer Material and Finish:
Housing: PA6T UL 94V-0; Terminal: Phosphor bronze; Fitting: Phosphor bronze;
Finish: Tin-plated & Gold-plated
| CKT | Part No (Straight) | Part No (Right Angle) | DIM A | DIM B |
| 2 | WT125HL-02 | WT125HW-02 | 1.25 | 3.8 |
| 6 | WT125HL-06 | WT125HW-06 | 6.25 | 8.8 |
| 12 | WT125HL-12 | WT125HW-12 | 13.75 | 16.3 |
| 18 | - | WT125HW-18 | 21.25 | 23.8 |
