Home > WTB Wire-To-Board strip Connector > High-Quality DF13 1.25mm Dual-Row Vertical SMT Header 2*17/19P with Lock Pegs Suppliers, Factories
High-Quality DF13 1.25mm Dual-Row Vertical SMT Header 2*17/19P with Lock Pegs Suppliers, Factories
1 / 1

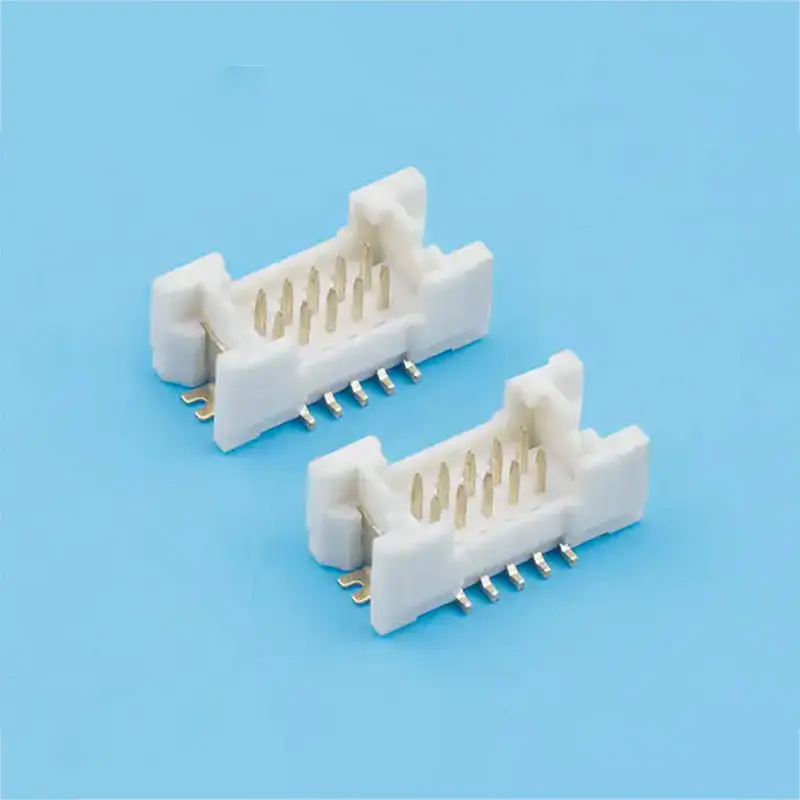

High-Quality DF13 1.25mm Dual-Row Vertical SMT Header 2*17/19P with Lock Pegs Suppliers, Factories

High-Quality DF13 1.25mm Dual-Row Vertical SMT Header 2*17/19P with Lock Pegs Suppliers, Factories

1.25mm pitch wire-to-board connector strip, through-hole mount, pcb interconnect, multi-pin.The connector is made of high-quality materials and has good durability and corrosion resistance, ensuring stable connection performance in various harsh environments.

Send Inquiry

Product Description

1

Technical Specifications

Technical Diagram
  • 1. CKT Range: 2*5Pin to 2*25Pin
  • 2. Current Rating: 1A AC/DC
  • 3. Voltage Rating (Max): 150V AC/DC
  • 4. Working Temperature: -25°C to +85°C (Including temperature rise)
  • 5. Contact Resistance: Initial ≤ 20mΩ; After testing ≤ 40mΩ
  • 6. Insulation Resistance: ≥ 500MΩ
  • 7. Withstand Voltage: 500VAC (rms)
  • 8. Applicable Wire: AWG #30 to #26
  • 9. PCB Thickness: 1.6mm to 2.0mm
2

Mounting Measurement (Straight Angle)

Mounting Measurement
3

Product Parameter & Dimensions

Terminal Thickness: T=0.15mm

Product Parameter Diagram
CKT Part No DIM A (mm) DIM B (mm)
2*5WB125A0-1010.55
2*6WB125A0-1211.756.25
2*7WB125A0-14137.5
2*8WB125A0-1614.258.75
2*9WB125A0-1815.510
2*10WB125A0-2016.7511.25
2*11WB125A0-221812.5
2*12WB125A0-2419.2513.75
2*14WB125A0-2821.7516.25
2*15WB125A0-302317.5
2*16WB125A0-3224.2518.75
2*25WB125A0-5035.530
4

Wafer Materials & Finish

Housing: PA6T UL 94V-0
Terminal & Fitting: Brass
Plating: Tin-plated & Gold-plated

Wafer Product Image
CKT Part No DIM A (mm) DIM B (mm)
2*5WB125A0-1012.55
2*6WB125A0-1213.756.25
2*7WB125A0-14157.5
2*8WB125A0-1616.258.75
2*9WB125A0-1817.510
2*10WB125A0-2018.7511.25
2*11WB125A0-222012.5
2*12WB125A0-2421.2513.75
2*13WB125A0-2622.515
2*14WB125A0-2823.7516.25
2*15WB125A0-302517.5
2*25WB125A0-5037.530
?

Frequently Asked Questions

Q1: What is the operating temperature range for this connector? The connector is designed to function reliably within a temperature range of -25°C to +85°C.
Q2: What are the current and voltage ratings? The current rating is 1A AC/DC, and the maximum voltage rating is 150V AC/DC.
Q3: Which wire gauges are compatible with these terminals? This connector series is compatible with wires ranging from AWG #30 to #26.
Q4: What material is used for the housing? The housing is made from PA6T material with a UL 94V-0 flammability rating.
Q5: What is the maximum contact resistance allowed? The initial contact resistance is ≤ 20mΩ, and it stays below ≤ 40mΩ even after environmental testing.
Q6: What PCB thickness is recommended for installation? The applicable PCB board thickness for these connectors is between 1.6mm and 2.0mm.
