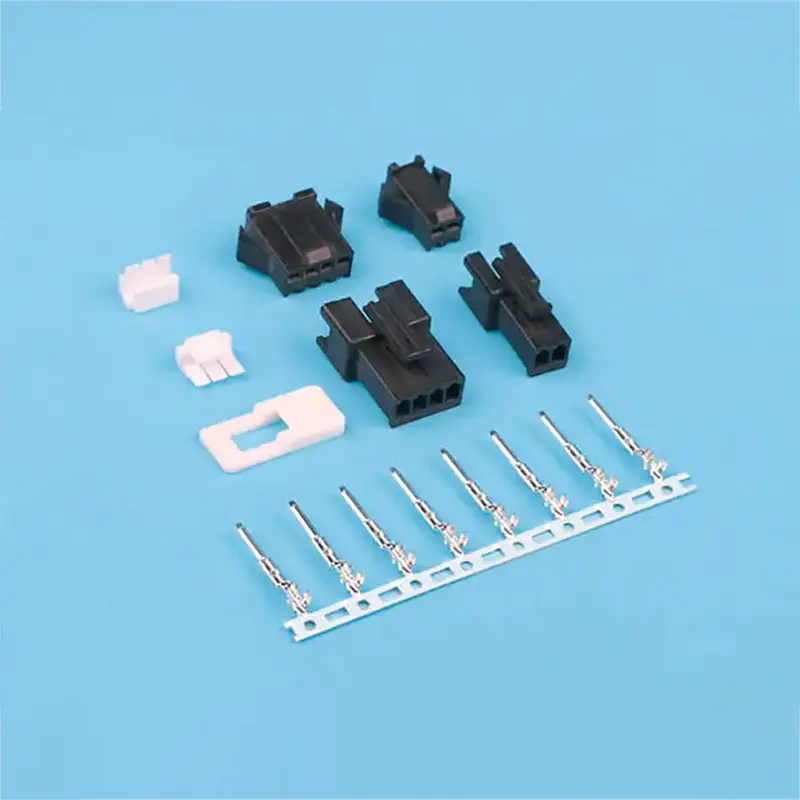

Wholesale SM2.54 Compatible Connector Set 2.54mm Pitch Male & Female Housing for LED Light Power Wire Harness 2/4/8/10 Pin Supplier, Factory
1 / 1
Wholesale SM2.54 Compatible Connector Set 2.54mm Pitch Male & Female Housing for LED Light Power Wire Harness 2/4/8/10 Pin Supplier, Factory

Wholesale SM2.54 Compatible Connector Set 2.54mm Pitch Male & Female Housing for LED Light Power Wire Harness 2/4/8/10 Pin Supplier, Factory

2.5mm pitch wire-to-board strip connector kit, durable interface, multi-pin arrangement, black, electronics diy, easy assemblyï¼›The connector adopts a standard 2.5mm Pitch design, compatible with mainstream board-to-board connectors in the market, allowing seamless connection with other devices.

Send Inquiry

Product Description

1

Specifications

Diagram Specification Details
Product Diagram 1. CKT: 2Pin to 16Pin
2. Current rating: 3A AC/DC
3. Voltage rating(max): 250V, AC/IDC
4. Working Temperature: -25°C~+85°C (Including temperature rise)
5. Contact resistance: Initial ≤10mΩ / After testing ≤20mΩ
6. Insulation resistance: ≥500MΩ
7. Withstand voltage: 1500VAC(rms)
8. Applicable wire: AWG #28 to #22
2

Mounting Measurement

Mounting Measurement 1
Mounting Measurement 2
3

Product Parameter

Terminal: T=0.25mm
Product Parameter Diagram
Part No. Wire Range Insulation O.D Material Finish
WT2501M-T0 AWG#28~ #22 1.80mm MAX Phosphor bronze Tin & Gold-plated
4

Product Description - Housing

Material: Nylon 66 UL 94V-0
Housing Diagram 1
CKT Part No DIM A DIM B
2WT2501M-022.57.85
3WT2501M-03510.35
4WT2501M-047.512.85
5WT2501M-051015.35
6WT2501M-0612.517.85
7WT2501M-071520.35
8WT2501M-0817.522.85
9WT2501M-092025.35
10WT2501M-1022.527.85
11WT2501M-112530.35
16WT2501M-1637.542.85
5

Fitting Specifications (Type Y)

Material: Nylon 66 UL94V-0
Fitting Diagram 1
CKT Part No DIM A DIM B
2WT2501M-Y17.63.6
3WT2501M-Y28.14.1
6

Housing Variant Specifications

Housing Variant 1
Housing Variant 2
CKT Part No DIM A DIM B
2WT2501M-0252.5
8WT2501M-082017.5
16WT2501M-164037.5
7

Product Description - Fitting WT2502F

Fitting WT2502F Diagram
CKT Part No DIM A DIM B
2WT2502F-0252.5
5WT2502F-0512.510
10WT2502F-102522.5
16WT2502F-164037.5

Frequently Asked Questions

What is the current and voltage rating for this series?
The connectors feature a current rating of 3A AC/DC and a maximum voltage rating of 250V AC/DC.
What is the allowable operating temperature range?
The working temperature ranges from -25°C to +85°C, which includes the temperature rise when electrical current is applied.
Which wire sizes are compatible with these terminals?
These connectors are designed for applicable wire sizes ranging from AWG #28 to AWG #22.
What materials are used in the construction of the housing?
The housing is made from high-quality Nylon 66, complying with the UL 94V-0 flammability standard.
How many circuits (pins) are available for this product?
We offer a versatile range of configurations from 2 pins up to 16 pins to suit various industrial needs.
What is the insulation resistance of the connector?
The connector provides an insulation resistance of ≥500MΩ and can withstand voltages up to 1500VAC.
