Wholesale Industrial Wire to Board Connector 3.7mm Pitch Heavy Duty Pin Header Strip for Power Supply Manufacturer, Supplier
1 / 1
Wholesale Industrial Wire to Board Connector 3.7mm Pitch Heavy Duty Pin Header Strip for Power Supply Manufacturer, Supplier

Wholesale Industrial Wire to Board Connector 3.7mm Pitch Heavy Duty Pin Header Strip for Power Supply Manufacturer, Supplier

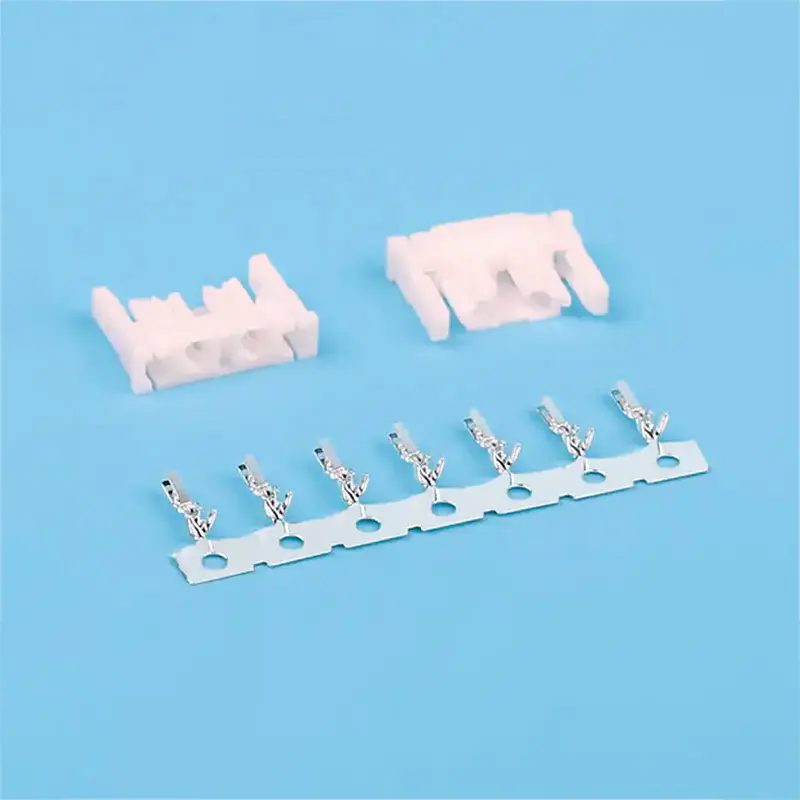

3.7mm pitch wire-to-board strip connector, pcb mount, electrical interconnect component, durable socket for electronic assembly.The connector features low insertion loss, low reflection, and high return loss, ensuring the quality and stability of signal transmission.The connector adopts a unique design, making connections faster and more convenient, reducing installation time and costs.

Send Inquiry

Product Description

Product Advantages

1. Cost-Effective Installation Unique design makes connections faster and more convenient, reducing installation time and costs while improving production efficiency.
2. Customizable to Individual Needs Flexible customization of form factor, contact methods, and colors to meet personalized application requirements.
3. Improved Production Efficiency Fast connection features significantly reduce installation cycles and overall production costs.
4. Excellent Electrical Performance Ensures high-quality signal transmission stability, effectively avoiding attenuation and interference.
5. Reliable Connection Precision-manufactured with high-quality materials to withstand prolonged use and frequent plugging/unplugging.
6. Wide Range of Applications Perfectly suited for computers, mobile phones, tablets, network devices, and various communication equipment.

Specifications

Diagram Technical Specification
Specification Diagram
1. CKT: 2Pin
2. Current rating: 2A AC/DC
3. Voltage rating(max): 500V, AC/IDC
4. Working Temperature: -25°C to +85°C
5. Contact resistance: Initial ≤20mΩ / After test ≤40mΩ
6. Insulation resistance: ≥1000MΩ
7. Withstand voltage: 1500VAC(rms)
8. Applicable wire: AWG #26 to #28

Product Parameters

Terminal Thickness: T=0.15mm

Product Parameter Drawing
Part No. Wire Range Insulation O.D Material Finish
WT370D0-T0 AWG#28 ~ #26 1.10mm MAX Phosphor Bronze Tin & Gold-plated

Product Description

Housing Material: Nylon 66 UL 94V-0

Housing Dimension Drawing
CKT Part No DIM A (mm) DIM B (mm)
2 WT370D0-02 3.7 12.2

Frequently Asked Questions

What is the main application for this connector?
This connector is widely used in electronic devices such as computers, mobile phones, tablets, and network equipment due to its reliable signal transmission.
What is the operating temperature range?
The connector is designed to function reliably within a temperature range of -25°C to +85°C, including temperature rise during electrical current application.
Is the product customizable?
Yes, we offer customization for the form factor, contact methods, and colors to meet specific client requirements and application needs.
What materials are used for the housing?
The housing is manufactured using high-quality Nylon 66, which meets the UL 94V-0 flammability standard for safety.
What are the electrical ratings for this model?
The connector supports a current rating of 2A AC/DC and a maximum voltage rating of 500V AC/DC, with a withstand voltage of 1500V AC.
Which wire gauges are compatible?
This specific connector is compatible with applicable wire sizes ranging from AWG #26 to #28.
