| Part No. | Wire Range | Insulation O.D | Material | Finish |
|---|---|---|---|---|
| WT200YO- T0 | AWG #30 ~ #24 | 1.50mm MAX | Phosphor Bronze | Tin & Gold-plated |
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT200Y0-02 | 2 | 4.6 |
| 3 | WT200Y0-03 | 4 | 6.6 |
| 4 | WT200Y0-04 | 6 | 8.6 |
| 5 | WT200Y0-05 | 8 | 10.6 |
| 6 | WT200Y0-06 | 10 | 12.6 |
| 7 | WT200Y0-07 | 12 | 14.6 |
| 8 | WT200Y0-08 | 14 | 16.6 |
| 9 | WT200Y0-09 | 16 | 18.6 |
| 10 | WT200Y0-10 | 18 | 20.6 |
| 11 | WT200Y0-11 | 20 | 22.6 |
| 12 | WT200Y0-12 | 22 | 24.6 |
| - | - | - | - |
| 20 | WT200Y0-20 | 38 | 40.6 |
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT200FL-02 | 2 | 4.9 |
| 3 | WT200FL-03 | 4 | 6.9 |
| 4 | WT200FL-04 | 6 | 8.9 |
| 5 | WT200FL-05 | 8 | 10.9 |
| 6 | WT200FL-06 | 10 | 12.9 |
| 7 | WT200FL-07 | 12 | 14.9 |
| 8 | WT200FL-08 | 14 | 16.9 |
| 9 | WT200FL-09 | 16 | 18.9 |
| 10 | WT200FL-10 | 18 | 20.9 |
| 11 | WT200FL-11 | 20 | 22.9 |
| 12 | WT200FL-12 | 22 | 24.9 |
| - | - | - | - |
| 20 | WT200FL-20 | 38 | 40.9 |
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT200FW-02 | 2 | 4.9 |
| 3 | WT200FW-03 | 4 | 6.9 |
| 4 | WT200FW-04 | 6 | 8.9 |
| 5 | WT200FW-05 | 8 | 10.9 |
| 6 | WT200FW-06 | 10 | 12.9 |
| 7 | WT200FW-07 | 12 | 14.9 |
| 8 | WT200FW-08 | 14 | 16.9 |
| 9 | WT200FW-09 | 16 | 18.9 |
| 10 | WT200FW-10 | 18 | 20.9 |
| 11 | WT200FW-11 | 20 | 22.9 |
| 12 | WT200FW-12 | 22 | 24.9 |
| - | - | - | - |
| 20 | WT200FW-20 | 38 | 40.9 |
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT200Y0-02 | 2 | 4.6 |
| 3 | WT200Y0-03 | 4 | 6.6 |
| 4 | WT200Y0-04 | 6 | 8.6 |
| 5 | WT200Y0-05 | 8 | 10.6 |
| 6 | WT200Y0-06 | 10 | 12.6 |
| 7 | WT200Y0-07 | 12 | 14.6 |
| 8 | WT200Y0-08 | 14 | 16.6 |
| 9 | WT200Y0-09 | 16 | 18.6 |
| 10 | WT200Y0-10 | 18 | 20.6 |
| 11 | WT200Y0-11 | 20 | 22.6 |
| 12 | WT200Y0-12 | 22 | 24.6 |
| - | - | - | - |
| 20 | WT200Y0-20 | 38 | 40.6 |
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT200YL-02 | 2 | 6 |
| 3 | WT200YL-03 | 4 | 8 |
| - | - | - | - |
| 20 | WT200YL-20 | 38 | 42 |
| 2 | WT200YW-02 | 2 | 6 |
| 3 | WT200YW-03 | 4 | 8 |
| - | - | - | - |
| 20 | WT200YW-20 | 38 | 42 |
| 2 | WT200YW-02 | 2 | 6 |
| 3 | WT200YW-03 | 4 | 8 |
| - | - | - | - |
| 20 | WT200YW-20 | 38 | 42 |

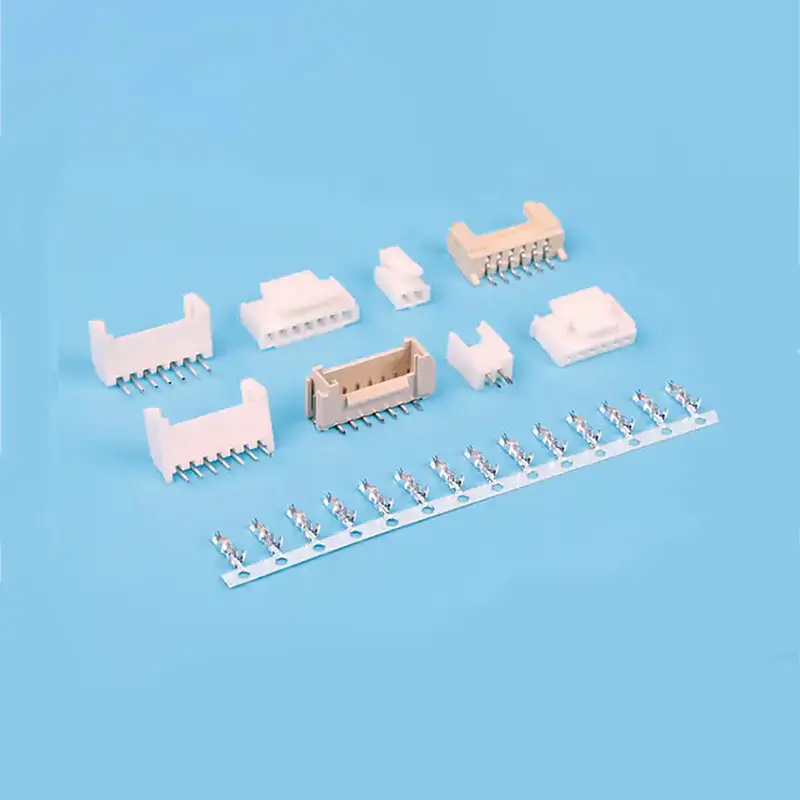

This connector series offers highly versatile configuration options, with circuits ranging from 2Pin to 20Pin, ensuring adaptability for various electronic design structures.
The connectors have a current rating of 2A AC/DC and support a maximum voltage rating of 200V AC/DC. The insulation resistance is rated at ≥ 1000MΩ, offering excellent dielectric protection.
The housings are manufactured from high-quality LCP UL 94V-0 or Nylon 66 UL 94V-0 to ensure outstanding flame retardancy and thermal stability. The terminal materials are made of phosphor bronze or brass, with options for Tin-plated or Gold-plated finishes.
The operating temperature range is -25°C to +85°C, designed to withstand standard industrial environmental challenges, including the temperature rise associated with electrical currents.
The connectors are fully compatible with wire gauges ranging from AWG #30 to #24. They are designed for installation on printed circuit boards (PCBs) with thicknesses from 1.6mm to 2.0mm.
