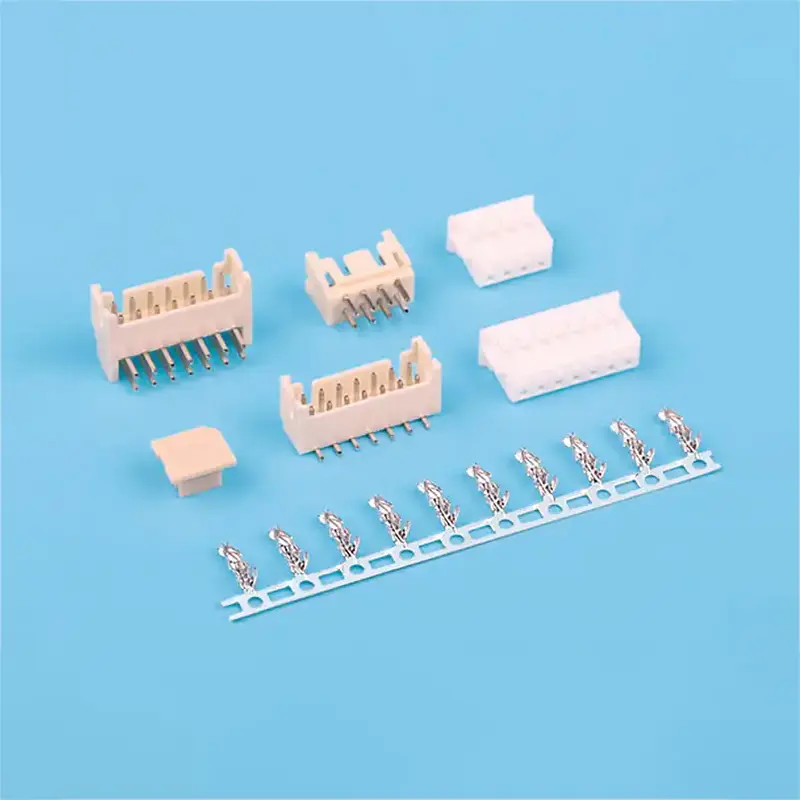

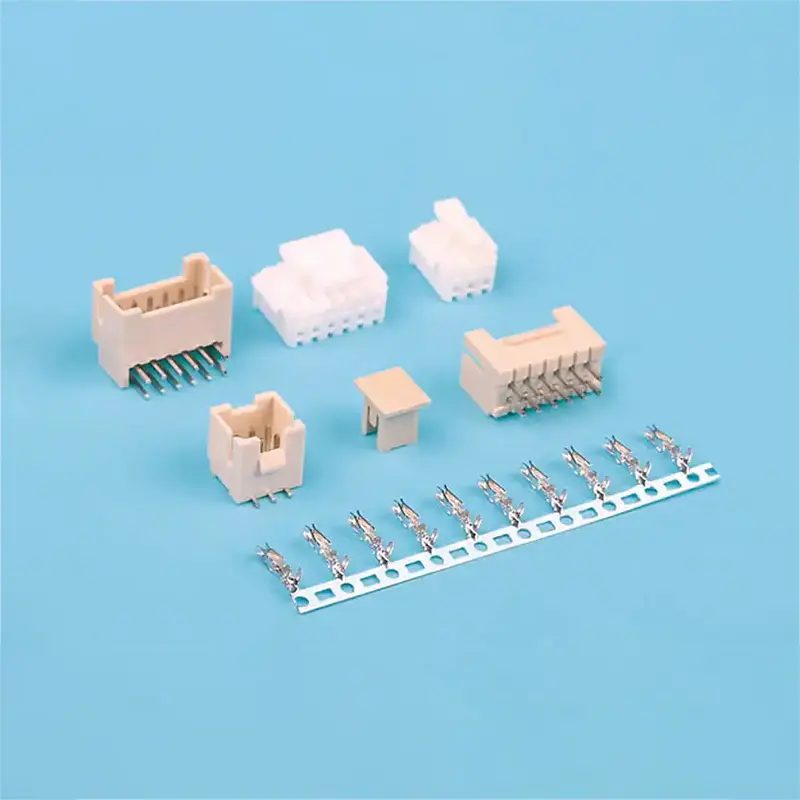

Wholesale Double Row Locking Wire to Board Male Connector PHB 2.0mm Pitch Housing with Terminals for Vertical Horizontal Mount Factories, Factory

2.0mm pitch wire-to-board connector kit, pcb mount, disconnectable crimp style connectorsï¼›2.0mm pitch wire-to-board strip connector kit, pcb mount, compact design, secure locking system, for industrial and commercial use.

Send Inquiry

Product Description

Specifications

Model	Diagram	Specification
2.0-A Type(PHB) double row Wire-to-Board Connector		1. CKT: 22Pin to 222Pin 2. Current rating: 3A AC/DC 3. Voltage rating(max): 250V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ / After test ≤30mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 800VAC(rms) 8. Applicable wire: AWG #28 to #24 9. Applicable PCB thickness: 1.6mm to 2.0mm
2.0-D Type(PHD) double row Wire-to-Board Connector		1. CKT: 22Pin to 220Pin 2. Current rating: 3A AC/DC 3. Voltage rating(max): 250V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ / After test ≤30mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 800VAC(rms) 8. Applicable wire: AWG #28 to #22 9. Applicable PCB thickness: 1.6mm to 2.0mm

Mounting Measurement

Type	Straight Angle	Right Angle
2.0-A Type(PHB)
2.0-D Type(PHD)

Product Parameter (Terminal)

2.0-A Type(PHB) Terminal: T=0.2mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB200A0-T0	AWG#28~ #24	1.20mm MAX	phosphor bronze	Tin & Gold-plated

2.0-D Type(PHD) Terminal: T=0.2mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB200R0-T0	AWG#28~ #22	1.50mm MAX	phosphor bronze	Tin & Gold-plated

Product Description

2.0-A Type(PHB) - Housing & Wafer

Housing Material: Nylon 66 UL 94V-0

Wafer Material & Finish: LCP/PA46 UL 94V-0, Brass Terminal, Tin/Gold-plated

CKT	Part No (Housing)	Part No (Wafer-L)	DIM A	DIM B
2*2	WB200A0-04	WB200AL-04	2	7/6
2*6	WB200A0-12	WB200AL-12	10	15/14
2*12	WB200A0-24	WB200AL-24	22	27/26
2*22	WB200A0-44	WB200AL-44	42	47/46

2.0-D Type(PHD) - Housing & Wafer

Housing Material: Nylon 66 UL 94V-0

Wafer Material & Finish: LCP/Nylon 66 UL 94V-0, Brass Terminal, Tin/Gold-plated

CKT	Part No (Housing)	Part No (Wafer)	DIM A	DIM B
2*2	WB200D0-04	WB200DL-04	2	6
2*10	WB200D0-20	WB200DL-20	18	22
2*20	WB200D0-40	WB200DL-40	38	42

Frequently Asked Questions

What is the pitch and configuration of these connectors?

These are 2.0mm pitch double-row wire-to-board connectors, available in PHB (A Type) and PHD (D Type) configurations.

What are the electrical ratings for the PHB and PHD series?

Both series feature a current rating of 3A AC/DC and a maximum voltage rating of 250V AC/DC.

Which wire gauges (AWG) are compatible with the terminals?

The PHB terminal supports AWG #28 to #24, while the PHD terminal supports a wider range from AWG #28 to #22.

What materials are used for the housing and wafer?

The housing is typically made of Nylon 66 UL 94V-0. Wafers utilize materials like LCP or PA46 for high-temperature resistance.

What is the operating temperature range for these connectors?

The working temperature ranges from -25°C to +85°C, which includes the temperature rise during electrical current application.

Are there different mounting angles available?

Yes, both Straight Angle and Right Angle mounting options are supported for PHB and PHD types.
