BTB board-to-board connectors are widely used in mobile phones, tablets, laptops, TVs, and other electronic products for connecting circuit boards and power supply, signal transmission, etc.
In the field of automotive electronics, BTB board-to-board connectors are used to connect various modules such as car instrument panels, in-car entertainment systems, navigation systems, etc., to achieve information transmission and control.
BTB board-to-board connectors are also widely used in industrial control systems for connecting sensors, actuators, controllers, and other devices to achieve automatic control and monitoring.
In medical devices, BTB board-to-board connectors are used to connect various circuit boards and modules such as electrocardiographs, blood pressure monitors, ventilators, etc., to ensure the normal operation of the equipment and data transmission.
| Technical Specifications | |
|---|---|
| 1 | CKT: 2Pin |
| 2 | Current rating: 1A AC/DC |
| 3 | Voltage rating (max): 125V, AC/DC |
| 4 | Working Temperature: -25°C ~ +85°C (Including temperature rise in applying electrical current) |
| 5 | Contact resistance: Value ≤ 20mΩ; After environmental testing ≤ 30mΩ |
| 6 | Insulation resistance: ≥ 100MΩ |
| 7 | Withstand voltage: 500VAC (rms) |
| 8 | Applicable PCB board thickness: 1.6mm to 2.0mm |
BTB board-to-board connectors are widely used in electronic products (mobile phones, tablets, laptops, TVs), automotive electronics (instrument panels, in-car entertainment, navigation), industrial control systems (sensors, actuators, controllers), and medical devices (electrocardiographs, blood pressure monitors, ventilators).
The connector has a current rating of 1A AC/DC and a maximum voltage rating of 125V AC/DC.
The working temperature ranges from -25°C to +85°C, which includes the temperature rise that occurs when electrical current is applied.

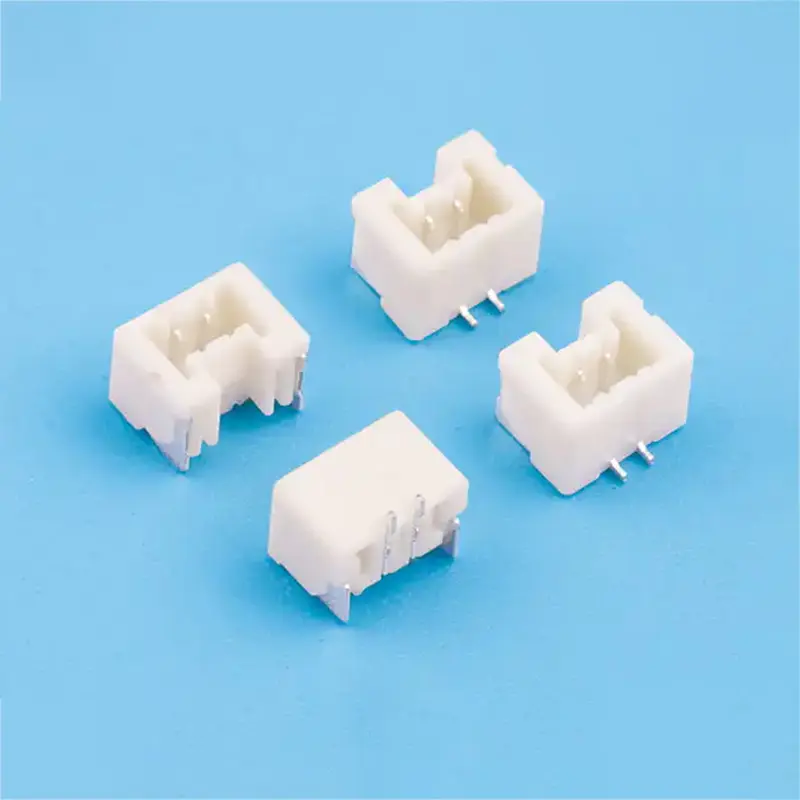

The wafer is constructed with a PA6T UL 94V-0 housing, a phosphor bronze terminal, and a brass fitting. The finish options include both tin-plated and gold-plated coatings.
This connector is designed to be compatible with PCB board thicknesses ranging from 1.6mm to 2.0mm.
The initial contact resistance is ≤ 20mΩ (and ≤ 30mΩ after environmental testing). The insulation resistance is ≥ 100MΩ, ensuring reliable signal isolation.
