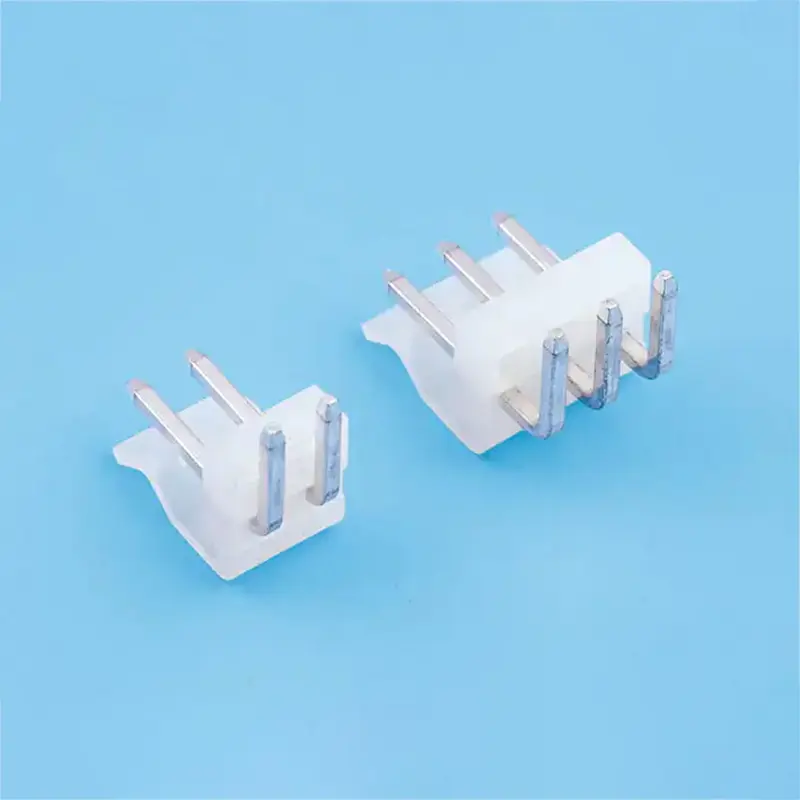

China 3.96mm Pitch PCB Connector CH3.96 Series Male Pin Header 2P 3P 4P 5P 6P Straight & Right Angle Supplier, Suppliers

3.96 mm Pitch High Hardness Wear Resistance Wire-to-Board Strip Connector PCB Right Angle Pin Header Socket.This connector is suitable for connecting various electronic devices such as computers, communication equipment, industrial control equipment, etc., meeting the needs of different industries.

Send Inquiry

Product Description

Specifications

Diagram	Specification Detail
	1. CKT: 2Pin to 16Pin 2. Current rating: 7A AC/DC 3. Voltage rating(max): 250V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ; After testing ≤30mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 1500VAC(rms) 8. Applicable wire: AWG #22 to #16 9. Applicable PCB thickness: 1.6mm to 2.0mm

Mounting Measurement

Straight Angle

Right Angle

Product Description

Wafer - Type L Series

Material and Finish: Housing: Nylon 66 UL 94V-2 & Terminal: Brass Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A (mm)	DIM B (mm)
2	WT3960L-02	3.96	7.92
3	WT3960L-03	7.92	11.88
4	WT3960L-04	11.88	15.84
5	WT3960L-05	15.84	19.8
6	WT3960L-06	19.8	23.76
7	WT3960L-07	23.76	27.72
8	WT3960L-08	27.72	31.68
9	WT3960L-09	31.68	35.64
10	WT3960L-10	35.64	39.6
11	WT3960L-11	39.6	43.56
12	WT3960L-12	43.56	47.52
16	WT3960L-16	59.4	63.36

Wafer - Type W Series

Material and Finish: Housing: Nylon 66 UL 94V-2 & Terminal: Brass Finish: Tin-plated & Gold-plated

CKT	Part No	DIM A (mm)	DIM B (mm)
2	WT3960W-02	3.96	7.92
3	WT3960W-03	7.92	11.88
4	WT3960W-04	11.88	15.84
5	WT3960W-05	15.84	19.8
6	WT3960W-06	19.8	23.76
7	WT3960W-07	23.76	27.72
8	WT3960W-08	27.72	31.68
16	WT3960W-16	59.4	63.36

Material & Design Summary

Material and Finish: Housing: Nylon 66 UL 94V-2 & Terminal: Brass Finish: Tin-plated & Gold-plated

Frequently Asked Questions

Q1: What is the maximum current rating for these connectors? A1: The current rating is 7A AC/DC.

Q2: What is the operating temperature range? A2: The working temperature ranges from -25°C to +85°C, including temperature rise when electrical current is applied.

Q3: Which wire sizes are compatible with this product? A3: These connectors are applicable for wire sizes from AWG #22 to AWG #16.

Q4: What materials are used for the housing and terminals? A4: The housing is made of Nylon 66 (UL 94V-2) and the terminals are Brass with either Tin-plated or Gold-plated finishes.

Q5: What is the required PCB thickness for mounting? A5: The applicable PCB board thickness is between 1.6mm and 2.0mm.

Q6: What is the insulation resistance of this connector series? A6: The insulation resistance is ≥1000MΩ.
