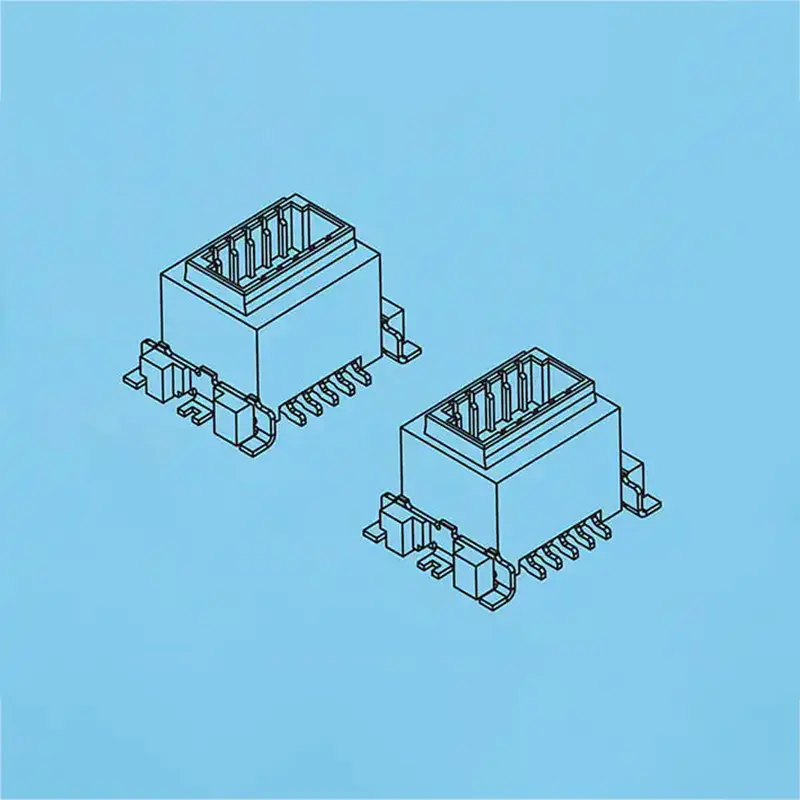

China 0.8mm pitch A Type Board to Board Connector Vertical SMT header socket Manufacturers, Suppliers
High-density 0.8mm pitch board-to-board connector, signal transmission, compact design.Is used for connecting circuit boards and are widely used in electronic products. They have the characteristics of small size, lightweight, high reliability, etc., and are one of the essential components in modern electronic products.
Small Size
BTB board-to-board connectors use precision manufacturing technology, making them very compact and suitable for electronic devices with limited space.
Light Weight
Due to the use of lightweight materials and compact structural design, BTB board-to-board connectors are very lightweight, making installation and use convenient.
High Reliability
BTB board-to-board connectors use high-quality materials and advanced manufacturing processes, providing good durability and vibration resistance, and can maintain stable connections in harsh working environments.
High-Density Connection
BTB board-to-board connectors have multiple contact points, enabling high-density connections and improving the efficiency of signal transmission in circuits.
Low Impedance
BTB board-to-board connectors use optimized design and manufacturing processes to reduce contact resistance and insertion force, improving the stability and speed of signal transmission.
Q1: What is the operating temperature range for these BTB connectors?A: The connectors are designed to operate reliably within a temperature range of -25°C to +85°C, which includes the temperature rise when electrical current is applied.
Q2: What materials are used in the construction of the wafer?A: The housing is made of PA6T UL 94V-0, while both the terminals and fittings are manufactured from high-quality phosphor bronze.
Q3: What are the current and voltage ratings?A: These connectors have a current rating of 0.5A AC/DC and a maximum voltage rating of 100V AC/DC.
Q4: Are these connectors suitable for thin PCB boards?A: Yes, they are compatible with PCB board thicknesses ranging from 1.6mm to 2.0mm.
Q5: What finishes are available for the terminals?A: The terminals are available with both Tin-plated and Gold-plated finishes to ensure optimal conductivity and corrosion resistance.
Q6: How does the "Low Impedance" feature benefit my circuit?A: The optimized design reduces contact resistance and insertion force, which improves signal transmission stability and speed across the board-to-board interface.
