Wenda Electronics
Wenda Electronics

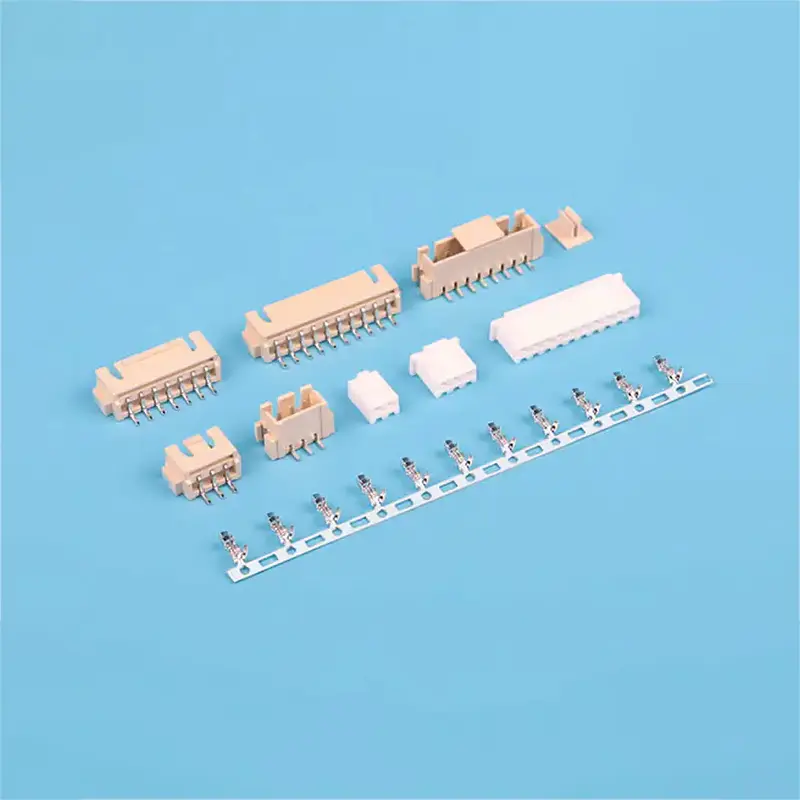

Straight Angle
Right Angle
Terminal: T=0.2mm
| Part No. | Wire Range | Insulation O.D | Material | Finish |
|---|---|---|---|---|
| WT250M0-T0 | AWG#28~ #22 | 1.90mm MAX | Phosphor bronze | Tin & Gold-plated |
Material: Nylon 66 UL94V-0
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT250M0-02 | 2.5 | 5.7 |
| 3 | WT250M0-03 | 5 | 8.2 |
| 4 | WT250M0-04 | 7.5 | 10.7 |
| 5 | WT250M0-05 | 10 | 13.2 |
| 6 | WT250M0-06 | 12.5 | 15.7 |
| 7 | WT250M0-07 | 15 | 18.2 |
| 8 | WT250M0-08 | 17.5 | 20.7 |
| 9 | WT250M0-09 | 20 | 23.2 |
| 10 | WT250M0-10 | 22.5 | 25.7 |
| 11 | WT250M0-11 | 25 | 28.2 |
| 12 | WT250M0-12 | 27.5 | 30.7 |
| 16 | WT250M0-16 | 37.5 | 40.7 |
Housing: LCP UL94V-0 & Terminal: Brass Fitting: Brass; Finish: Tin-plated & Gold-plated
| CKT | Part No | DIM A | DIM B |
|---|---|---|---|
| 2 | WT250ML-02 | 2.5 | 7.5 |
| 3 | WT250ML-03 | 5 | 10 |
| 4 | WT250ML-04 | 7.5 | 12.5 |
| 16 | WT250ML-16 | 37.5 | 42.5 |
Housing: Nylon 66 UL 94V-0 & Terminal: Brass; Finish: Tin-plated & Gold-plated
1. What is the current rating for these connectors?
The connectors have a current rating of 3A AC/DC.
2. What is the operating temperature range?
The working temperature range is -25°C to +85°C, including temperature rise when current is applied.
3. What wire sizes are compatible with these terminals?
These connectors are compatible with wire sizes ranging from AWG #28 to #22.
4. What materials are used for the housing and terminals?
Housing options include Nylon 66 or LCP (UL94V-0). Terminals are made of brass or phosphor bronze with tin or gold plating.
5. What is the maximum voltage rating?
The maximum voltage rating for these units is 250V AC/DC.
6. What PCB thicknesses are supported for mounting?
The applicable PCB board thickness ranges from 1.6mm to 2.0mm.
