China ZH1.5mm Pitch Locking Connector Housing Set – Male/Female with Crimp Terminals Straight Right-Angle Vertical Horizontal SMT Suppliers, Factory
1 / 1
China ZH1.5mm Pitch Locking Connector Housing Set – Male/Female with Crimp Terminals Straight Right-Angle Vertical Horizontal SMT Suppliers, Factory

China ZH1.5mm Pitch Locking Connector Housing Set – Male/Female with Crimp Terminals Straight Right-Angle Vertical Horizontal SMT Suppliers, Factory

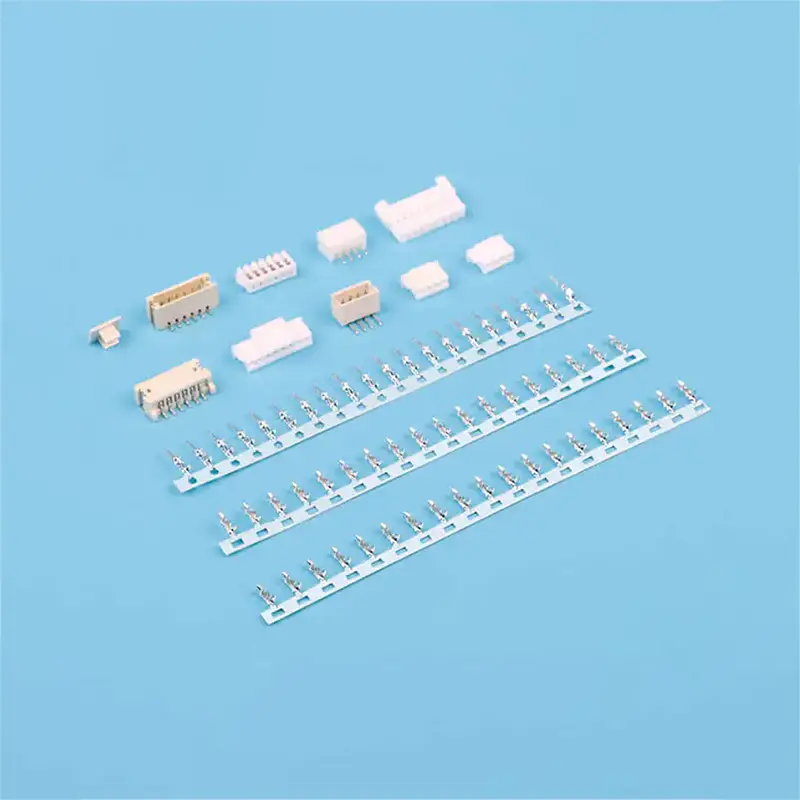

1.5mm pitch wire-to-board strip connectors, pcb circuit board plug-in, electronics assembly kit.The 1.5mm Pitch WTB board-to-board strip connector can achieve high-density connections, providing higher signal transmission rates and better electrical performance, thereby improving the overall performance of the system.

Send Inquiry

Product Description

Technical Specifications
Diagram
Standard Ratings
CKT Range2Pin to 20Pin
Current Rating1A AC/DC
Voltage Rating100V AC/DC (Max)
Temperature Range-25°C to +85°C
Contact ResistanceInitial ≤20mΩ / After Test ≤30mΩ
Insulation Resistance≥500MΩ
Withstand Voltage500VAC (rms)
Applicable WireAWG #30 to #26
PCB Thickness1.6mm to 2.0mm
Mounting Measurement

Straight Angle

Straight Angle

Right Angle

Right Angle
Product Parameter
✔ Terminal Thickness: T=0.2mm
Product Parameter
Part No. Wire Range Insulation O.D Material Finish
WT150Z0-T0AWG#30~ #261.10mm MAXPhosphor BronzeTin & Gold-plated
WT150Z0-T0-2AWG#26~ #241.10mm MAXPhosphor BronzeTin & Gold-plated
Housing Details
➤ Material: Nylon 66 UL 94V-0
Housing Image
CKTPart NoDIM ADIM B
2WT150Z0-021.53.4
3WT150Z0-0334.9
4WT150Z0-044.56.4
5WT150Z0-0567.9
6WT150Z0-067.59.4
12WT150Z0-1216.518.4
16WT150Z0-1622.524.4
Wafer Specifications
SMT Type (Standard)
■ Housing: LCP UL 94V-0 | Terminal: Brass | Fitting: Brass
■ Finish: Tin-plated & Gold-plated
Wafer Image 1
Additional Wafer Options
Wafer Image 2
CKTPart NoDIM ADIM B
2WT150LW-021.53.4
4WT150LW-044.56.4
6WT150LW-067.59.4
10WT150LW-1013.515.4
20WT150LW-2028.533
Frequently Asked Questions
Q1: What is the maximum current rating for this connector series? A: This series supports a current rating of up to 1A AC/DC.
Q2: Which wire sizes are compatible with these terminals? A: The terminals are applicable for wire ranges AWG #30 to #26, and certain models support up to AWG #24.
Q3: What materials are used for the housing and wafer? A: The housing is made of Nylon 66 (UL 94V-0), while the wafer uses LCP (UL 94V-0) with Brass terminals.
Q4: Can these connectors withstand high-temperature environments? A: Yes, the working temperature range is -25°C to +85°C, which includes the temperature rise during electrical current application.
Q5: Are there different mounting angle options available? A: Yes, we provide both Straight Angle and Right Angle mounting measurements to suit different PCB layouts.
Q6: What is the insulation resistance of this product? A: The connector provides an insulation resistance of ≥500MΩ.
