Wholesale Ultra-Thin Low Profile 1.2mm Pitch Horizontal SMT Li-ion Battery Socket Connector Replacement for 78171 78172 with Housing Terminals Supplier, Factory
1 / 1
Wholesale Ultra-Thin Low Profile 1.2mm Pitch Horizontal SMT Li-ion Battery Socket Connector Replacement for 78171 78172 with Housing Terminals Supplier, Factory

Wholesale Ultra-Thin Low Profile 1.2mm Pitch Horizontal SMT Li-ion Battery Socket Connector Replacement for 78171 78172 with Housing Terminals Supplier, Factory

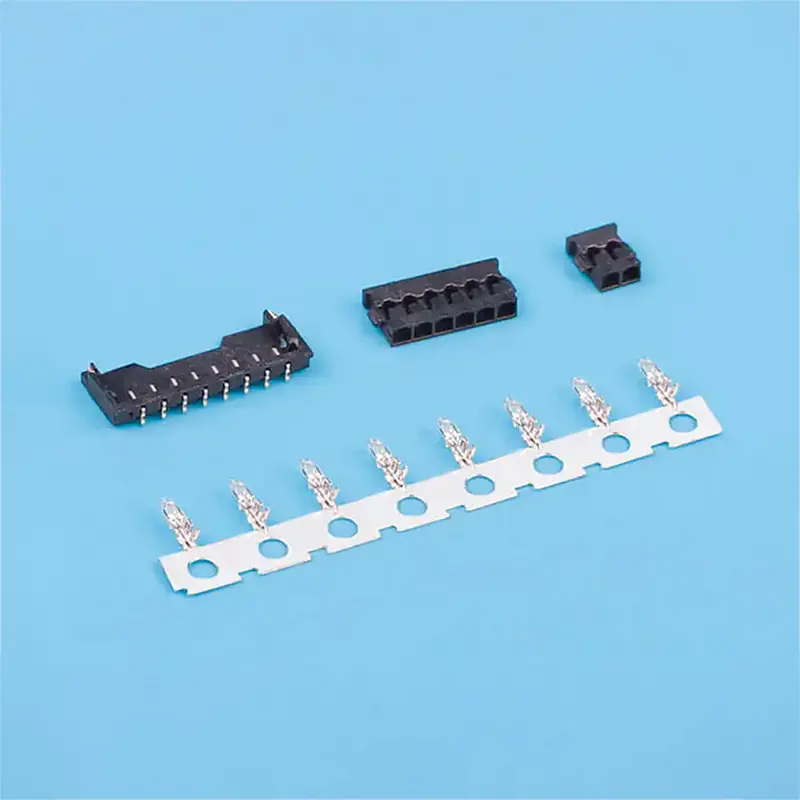

Battery products have become an indispensable power source in modern life, serving a wide range of applications from household appliances and communication equipment to medical devices and military systems. To ensure reliable connections in these applications, our universal 1.2mm pitch battery connector holder features an SMT PCB mount design with durable plastic housing and multi-pin configuration, providing stable and secure electrical connections for various battery-powered devices.

Send Inquiry

Product Description

Specifications

Diagram Specification
Diagram
 1. CKT: 2Pin to 12Pin
2. Current rating: 1.5A AC/DC
3. Voltage rating(max): 50V, AC/DC
4. Working Temperature: -25°C~+85°C
5. Contact resistance: ≤20mΩ
6. Insulation resistance: ≥100MΩ
7. Withstand voltage: 500VAC(rms)
8. Applicable wire: AWG #30 to #28
9. Applicable PCB board thickness: 1.6mm to 2.0mm

Mounting Measurement

Right Angle

Right Angle

P.C.B Layout

PCB Layout

Product Parameter

Terminal: T=0.12mm

Terminal Diagram
Part No. Wire Range Insulation O.D Material Finish
DCT120B0- T0 AWG#30~ #28 0.7mm MAX phosphor bronze Tin & Gold-plated

Product Description

Housing Material: LCP UL 94V-0

Housing
CKT Part No DIM A DIM B
2DCT120B0-023.12.6
3DCT120B0-034.33.8
4DCT120B0-045.55
5DCT120B0-056.76.2
6DCT120B0-067.97.4
7DCT120B0-079.18.6
8DCT120B0-0810.39.8
9DCT120B0-0911.511
10DCT120B0-1012.712.2
11DCT120B0-1113.913.4
12DCT120B0-1215.114.6

Wafer Material and Finish: Housing: LCP UL 94V-0; Terminal: Brass; Fitting: Brass; Finish: Tin-plated & Gold-plated

Wafer
CKT Part No DIM A DIM B
2DCT120BW-024.21.2
3DCT120BW-035.42.4
4DCT120BW-046.63.6
5DCT120BW-057.84.8
6DCT120BW-0696
7DCT120BW-0710.27.2
8DCT120BW-0811.48.4
9DCT120BW-0912.69.6
10DCT120BW-1013.810.8
11DCT120BW-111512
12DCT120BW-1216.213.2

Frequently Asked Questions (FAQ)

1. What is the current rating for this connector?
The connector has a current rating of 1.5A AC/DC.
2. What is the operating temperature range?
The working temperature is -25°C to +85°C, including the temperature rise in applying electrical current.
3. What wire sizes are compatible with this connector?
This connector is applicable for wires ranging from AWG #30 to #28.
4. What materials are used for the housing?
The housing is manufactured using LCP UL 94V-0 material.
5. What PCB board thickness is required?
The applicable PCB board thickness for this connector is 1.6mm to 2.0mm.
6. What is the insulation resistance of this unit?
The insulation resistance is ≥100MΩ.
