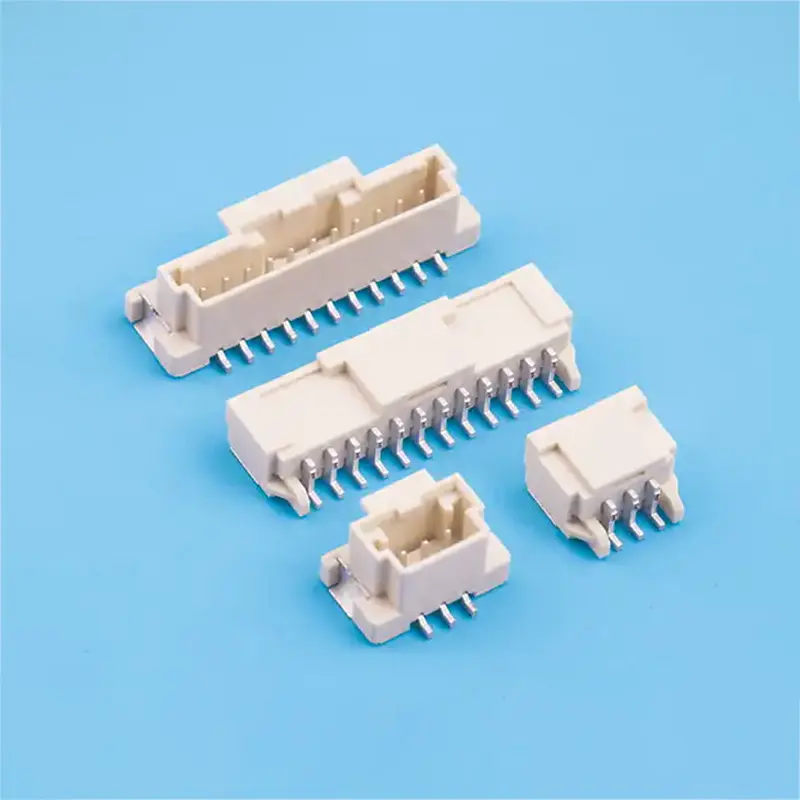

High-Quality PHDC 2.0mm High Temperature 180°C Connector Double Row Straight Pin Header with Locking Clip Vertical PCB Mount Housing Supplier, Factories

1 / 2

High-Quality PHDC 2.0mm High Temperature 180°C Connector Double Row Straight Pin Header with Locking Clip Vertical PCB Mount Housing Supplier, Factories

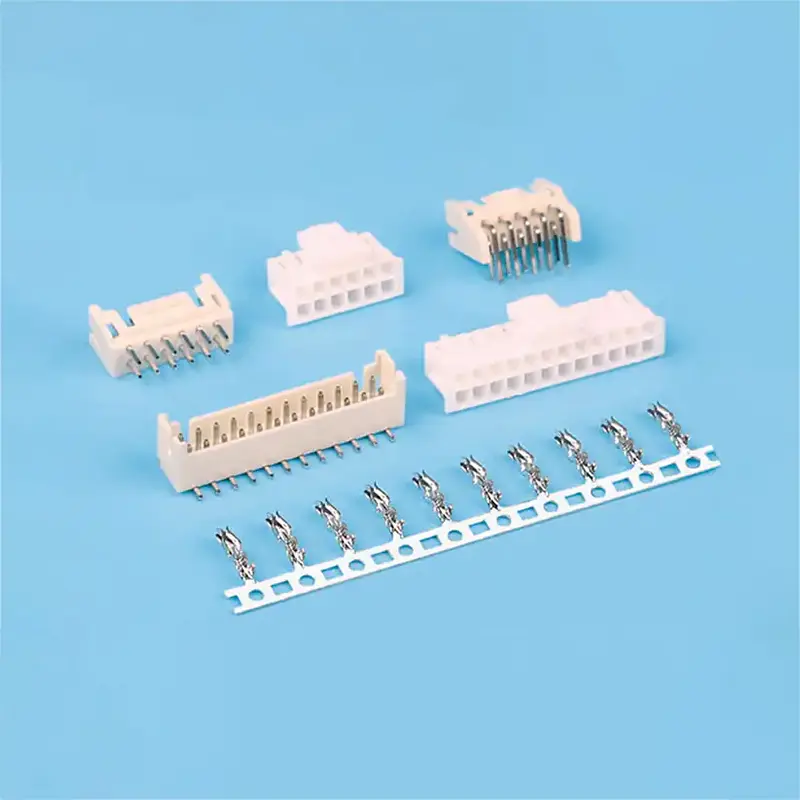

2.0mm pitch wire-to-board strip connector kit, pcb mount, locking mechanism, for circuit board signal transmissionï¼›2.0mm pitch wire-to-board connector kit, pcb strip connectors, durable housing, for electronics and prototyping.

Send Inquiry

Product Description

Connector Specifications

Model Type	Diagram Reference	Technical Specifications
2.0-C Type (PHDC) Wire-to-Board		1. CKT: 22Pin to 220Pin 2. Current rating: 3A AC/DC 3. Voltage rating(max): 250V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: Initial ≤20mΩ; After test ≤30mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 800VAC(rms) 8. Applicable wire: AWG #28 to #24 9. PCB thickness: 1.6mm to 2.0mm
2.0-B Type (MX) Wire-to-Board		1. CKT: 2Pin to 15Pin 2. Current rating: 2A AC/DC 3. Voltage rating(max): 125V, AC/DC 4. Working Temperature: -25°C~+85°C 5. Contact resistance: ≤40mΩ 6. Insulation resistance: ≥1000MΩ 7. Withstand voltage: 500VAC(rms) 8. PCB thickness: 1.6mm to 2.0mm

Mounting Measurement

Connector Type	Straight Angle	Right Angle
2.0-C Type (PHDC)
2.0-B Type (MX)

Product Parameters

2.0-C Type (PHDC) Terminal: T=0.2mm

Part No.	Wire Range	Insulation O.D	Material	Finish
WB200C0-T0	AWG#28~ #24	1.20mm MAX	Phosphor Bronze	Tin & Gold-plated

Detailed Product Descriptions

2.0-C Type (PHDC) Housing

Material Nylon 66 UL94V0

CKT	Part No	DIM A	DIM B
2*2	WB200C0-04	2	4.5
2*3	WB200C0-06	4	6.5
2*4	WB200C0-08	6	8.5
2*5	WB200C0-10	8	10.5
2*6	WB200C0-12	10	12.5
2*10	WB200C0-20	18	20.5
2*16	WB200C0-32	30	32.5

2.0-C Type (PHDC) Wafer

Material LCP / Nylon 66 UL 94V-0

Terminal Brass (Tin-plated & Gold-plated)

CKT	Part No (L)	Part No (W)	DIM A	DIM B
2*2	WB200CL-04	WB200CW-04	2	6
2*5	WB200CL-10	WB200CW-10	8	12
2*10	WB200CL-20	WB200CW-20	18	22
2*20	WB200CL-40	WB200CW-40	38	42

2.0-B Type (MX) Wafer

Material PA9T UL 94V-0

Terminal Phosphor Bronze / Brass Fitting

CKT	Part No (BL)	Part No (BW)	DIM A (L/W)	DIM B
2	WT200BL-02	WT200BW-02	10.7 / 8	4.8
5	WT200BL-05	WT200BW-05	16.4 / 14	10.8
10	WT200BL-10	WT200BW-10	26.4 / 24	20.8
15	WT200BL-15	WT200BW-15	36.4 / 42	30.8

Frequently Asked Questions

Q1: What is the maximum current rating for the 2.0-C Type (PHDC) connector?

A: The 2.0-C Type (PHDC) connector supports a current rating of up to 3A AC/DC.

Q2: Which wire gauges are compatible with these connectors?

A: These connectors are applicable for wire ranges from AWG #28 to #24.

Q3: What materials are used for the connector housing and wafers?

A: The materials include Nylon 66, LCP, and PA9T, all meeting the UL 94V-0 flammability standard.

Q4: Can these connectors withstand high-temperature environments?

A: Yes, the working temperature range is -25°C to +85°C, including temperature rise during electrical current application.

Q5: Are there different mounting configurations available?

A: Yes, both Straight Angle and Right Angle mounting configurations are available for both the PHDC and MX connector types.

Q6: What are the plating options for the terminals?

A: Terminals are available with high-quality Tin-plated and Gold-plated finishes for excellent conductivity and corrosion resistance.
